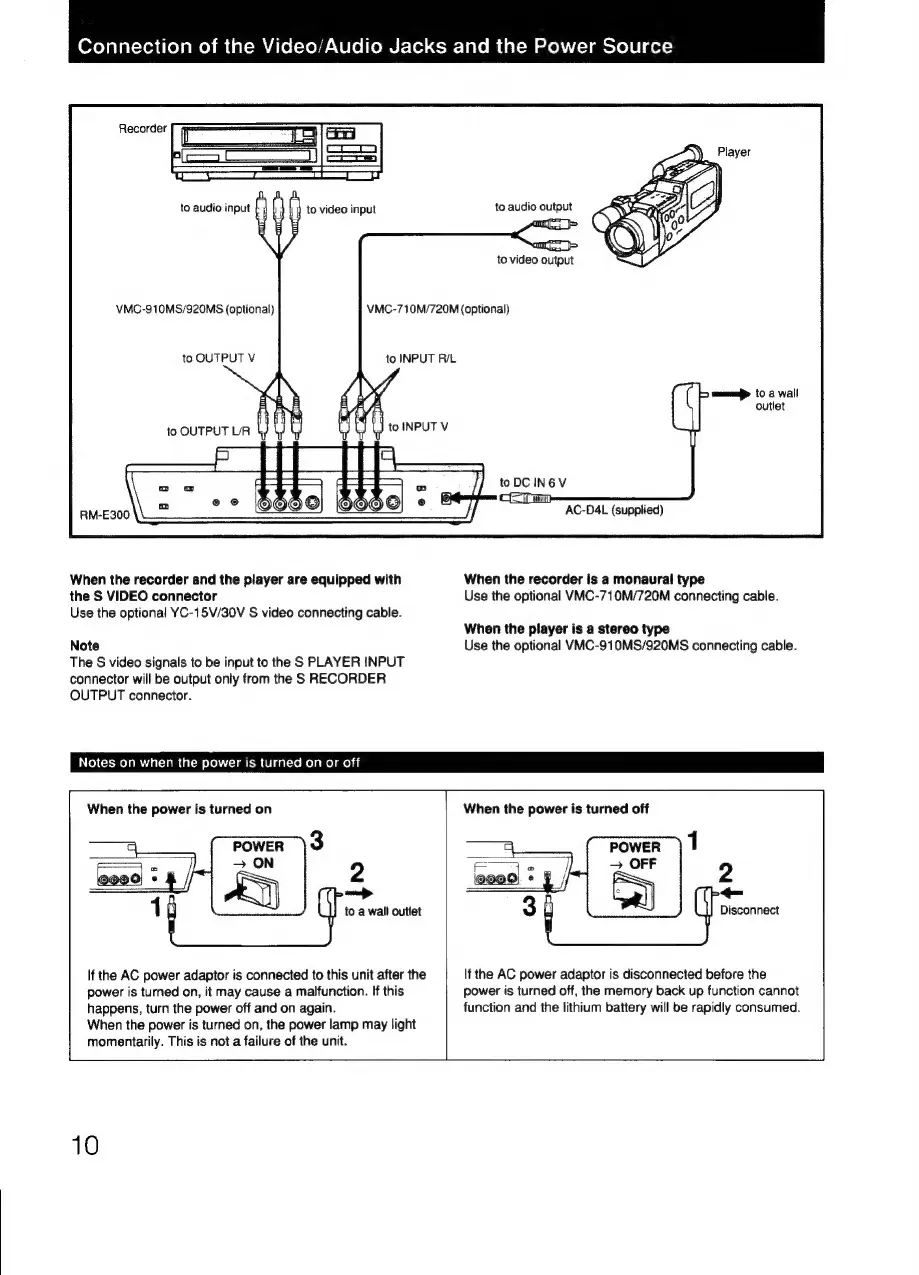

Sony RM-E300 - Video;Audio and Power Connections

OXeyararsrentlol sme) mCalcm ale (zreye- Velo | (ome r-lea. com] ale dal=m ace) i=) meclolel gers)
Recorder
to audio input s
VMC-910MS/920MS (optional)
to OUTPUT V
When the recorder and the player are equipped with
the S VIDEO connector
Use the optional YC-15V/30V S video connecting cable.
Note
The S video signals to be input to the S PLAYER INPUT
connector will be output only from the S RECORDER
OUTPUT connector.
Notes on when the power is turned on or off
to INPUT R/L
VMC-710M/720M (optional)
AC-D4L (supplied)
When the recorder is a monaural type
Use the optional VMC-710M/720M connecting cable.
When the player is a stereo type
Use the optional VMC-910MS/920MS connecting cable.
When the power is turned on
POWER 3
—> ON
2
>
to a wall outlet
If the AC power adaptor is connected to this unit after the
power is turned on, it may cause a malfunction. If this
happens, turn the power off and on again.
When the power is turned on, the power lamp may light
momentarily. This is not a failure of the unit.
When the power is turned off
POWER
— OFF y)
~
Disconnect
If the AC power adaptor is disconnected before the
power is turned off, the memory back up function cannot
function and the lithium battery will be rapidly consumed.
10
