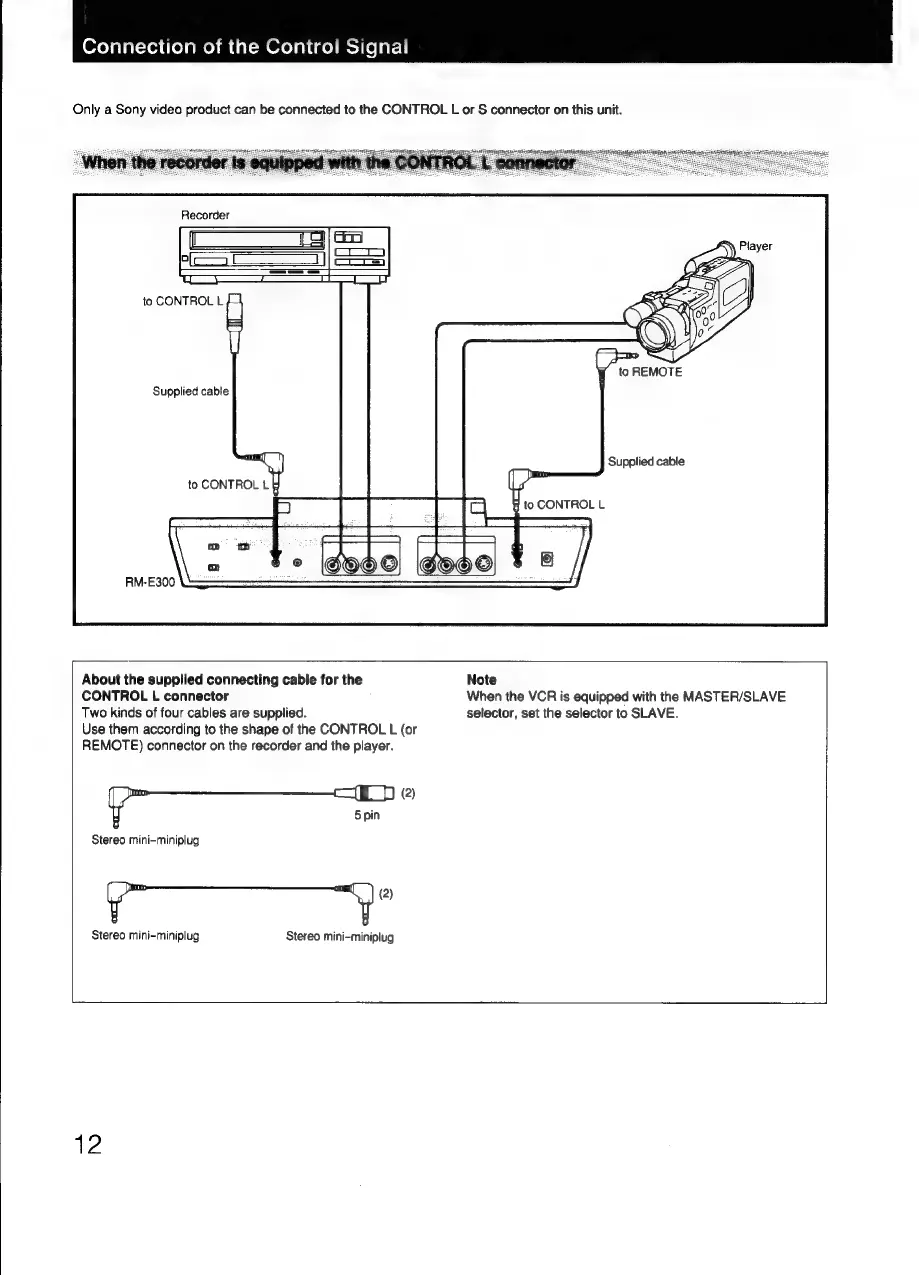

Connection
of
the
Control
Signal
Only
a
Sony
video
product
can
be
connected
to
the
CONTROL
L
or
S
connector
on
this
unit.
Recorder
to
CONTROL
L
Supplied
cable
Supplied
cable
About
the
supplied
connecting
cable
for
the
CONTROL
L
connector
Two
kinds
of
four
cables
are
supplied.
Use
them
according
to
the
shape
of
the
CONTROL
L
(or
REMOTE)
connector
on
the
recorder
and
the
player.
(2)
5
pin
Stereo
mini-miniplug
?
C
(2)
Stereo
mini-miniplug
Stereo
mini-miniplug
12
Note
When
the
VCR
is
equipped
with
the
MASTER/SLAVE
selector,
set
the
selector
to
SLAVE.
