Sony RMT-V501D - Disassembly and Reassembly; Cabinet and PCB

2-1
SLV-D350P/D550P
2. DISASSEMBLY AND REASSEMBLY
2-1 CABINET AND PCB

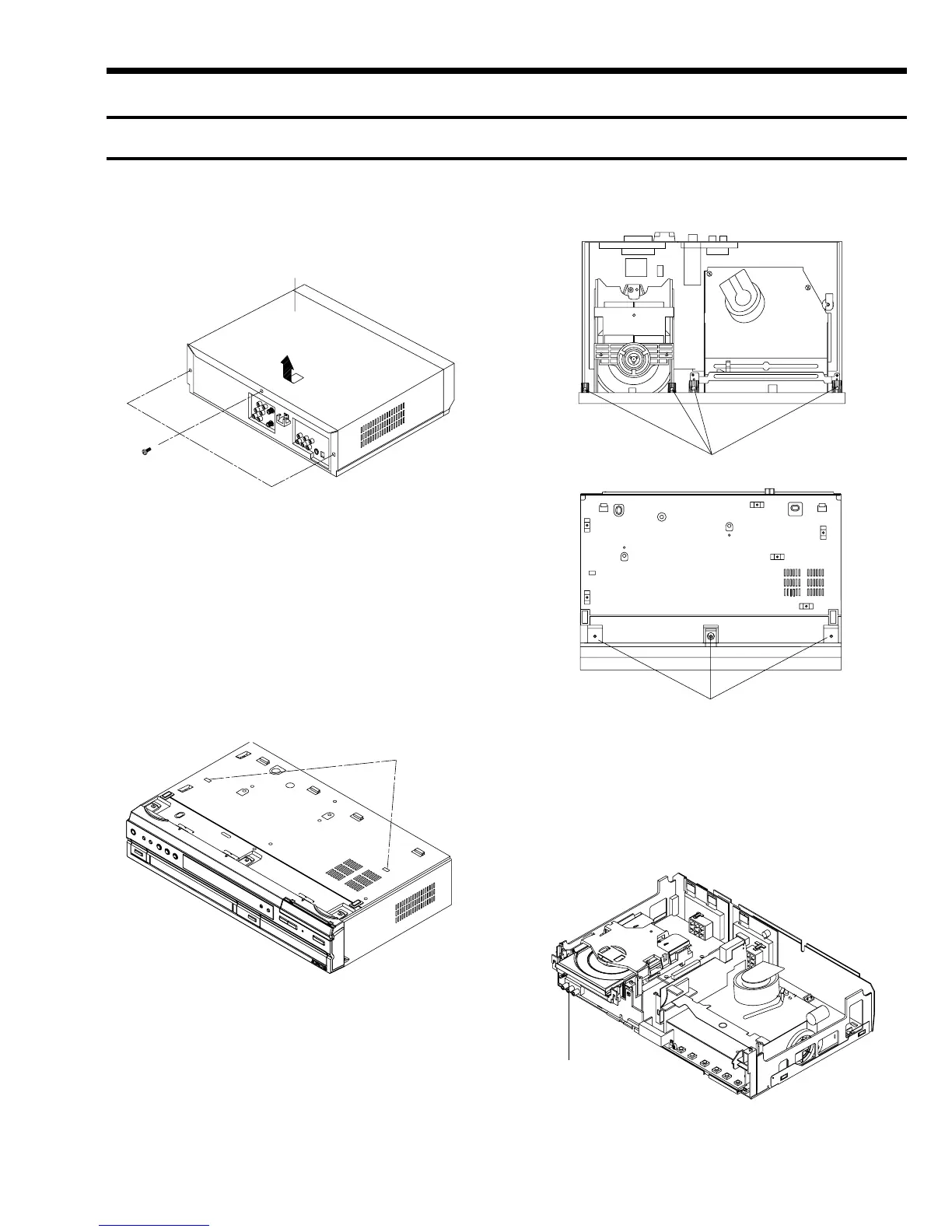

Fig. 2-1 Cabinet Top Removal
Fig. 2-2 Bottom Cover Removal
2-1-1 Cabinet Top Removal
2-1-2 Bottom Cover Removal
2-1-3 Ass’y Front Panel Removal
Fig. 2-3 Ass’y Front Panel Removal
2-1-4 Function PCB Removal
Fig. 2-4 Function PCB Removal
2 Lift up the Cabinet Top in the direction of arrow.
1 REMOVE
3 SCREWS
1 RELEASE 2 HOOKS
1 RELEASE 4 HOOKS
2 RELEASE 3 HOOKS
(Top View)
(Bottom View)
1 RELEASE 1 HOOK
