Sony RMT-V501D - FE Head Removal; ACE Head Removal

2-17
1 SCREW
2 HEAD ACE ASS`Y
1 FE HEAD
2-4-21 FE Head Removal
1) Remove the screw 1.
2) Lift the FE Head 2.

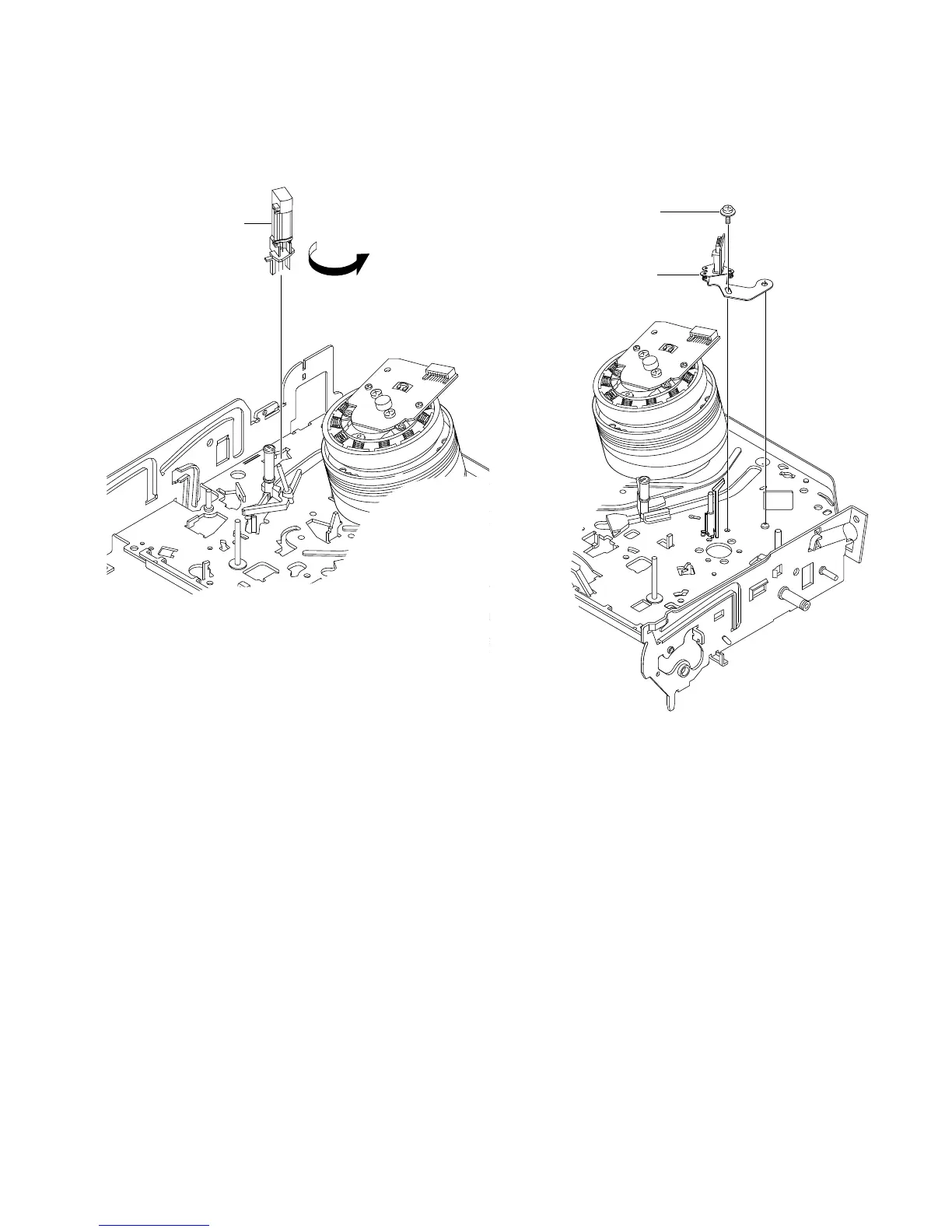

Fig. 2-34 FE Head Removal
2-4-22 ACE Head Removal
1) Pull out the FPC from connector of ACE Head Ass’y 2.
2) Remove the screw 1.
3) Lift the ACE Head Ass’y 2.
Fig. 2-35 ACE Head Removal
