2-26E
2-6-5 Ass’y Bracket Deck Removal
1) Remove the 2 Screws 1 and lift down Chassis Sub 2.
2) Push the Hook 3 in the direction of arrow “A” and lift up the Gear Feed B 4, Gear Feed A 5.
3) Remove the 2 Screws 6 and lift down Motor Feed Ass’y 7.
4) Remove the 2 Screws 8 and lift down Motor Spindl Ass’y 9.
5) Remove the 3 Screws 0 and remove 3 Holder Cam Skew qa, Shaft Pick Up qs, Ass’y Pick Up qd.

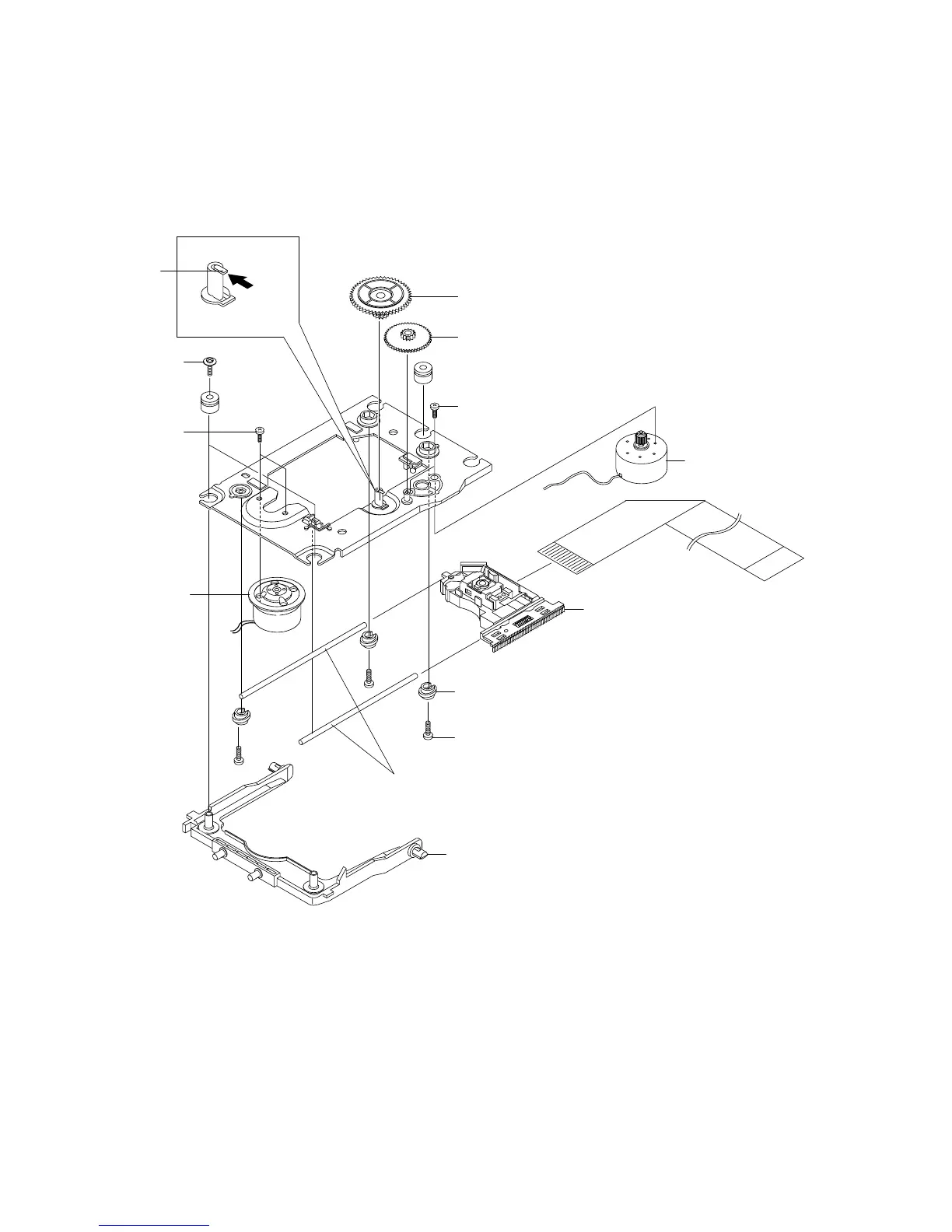

Fig. 2-48 Ass’y Bracket Deck Removal
"A"
3 HOOK
4 GEAR FEED B
5 GEAR FEED A
6 2 SCREWS
7 MOTOR FEED ASS'Y
1 2 SCREWS
8 2 SCREWS
9 MOTOR SPINDLE
2 CHASSIS SUB
qa 3 HOLDER CAM SKEW
0 3 SCREWS
qs SHAFT PICK UP
qd ASS'Y PICK UP
To Next Page
