2-6-3 Ass’y P/U Deck Removal
1) Remove the 4 Soldering 1 (SL+, SL-, SP+, SP-).
2) Remove the 1 Screw 2 and lift up the Ass’y P/U Deck 3 in the direction arrow “A”.
3) When the Ass’y P/U Deck 3 lift up a little, push Chassis Sub in the direction of arrow “B” and lift up the Ass’y P/U Deck 3.

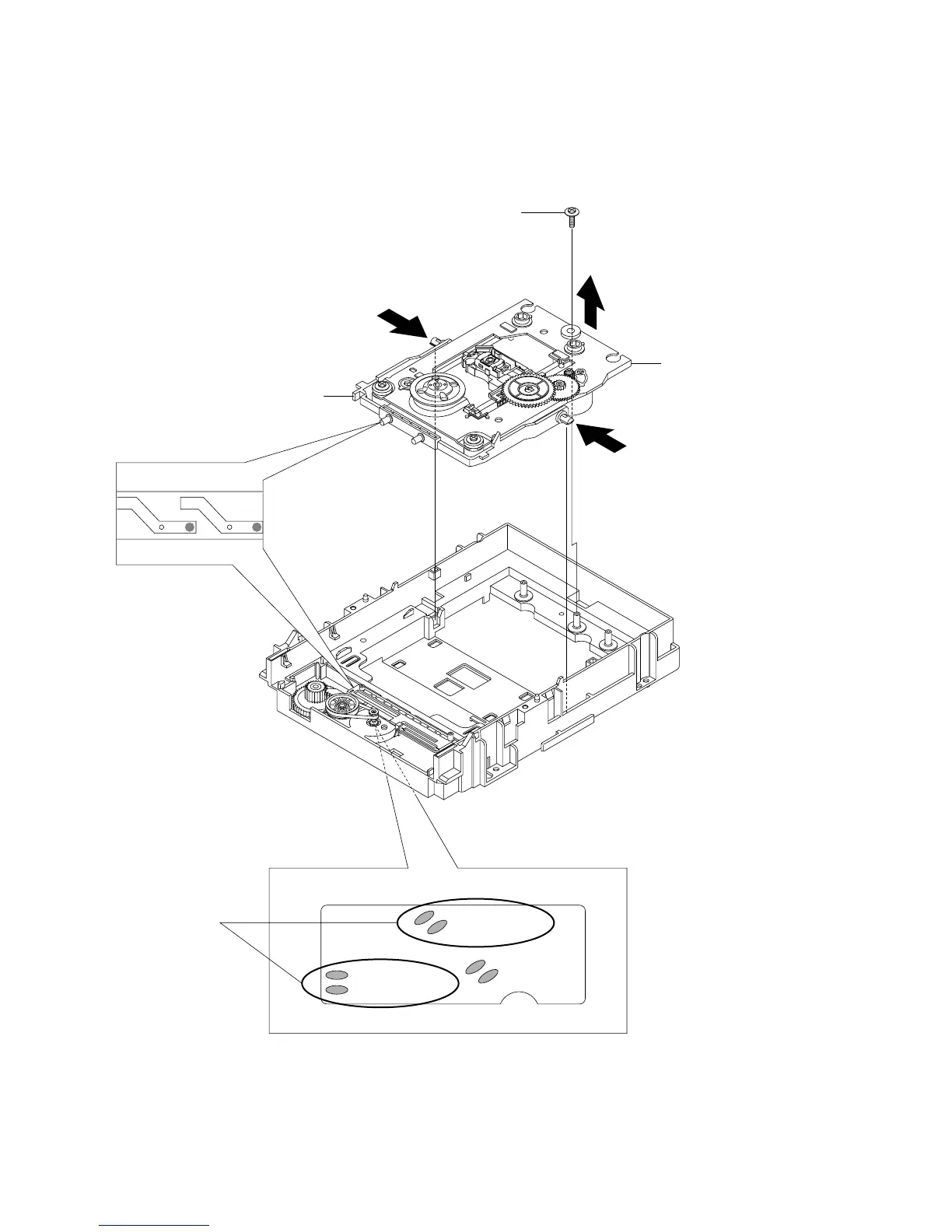

Fig. 2-46 Ass’y P/U Deck Removal
SL - (BLK)
SP - (BLK)
TM - (BLK)
TM + (BLK)
SL + (RED)
SP + (RED)
"A"
"B"
"B"
2 1 SCREW
3 ASS'Y P/U DECK
4 CHASSIS SUB
1 4 SOLDERING
<Assembly Point>
