Sony SEL1018 - REPAIR PARTS LIST; EXPLODED VIEWS; OVERALL SECTION; OPTICAL BLOCK SECTION

3-1
DISASSEMBLY
(ENGLISH)
DISASSEMBLY
(JAPANESE)
DISASSEMBLY
(ENGLISH)
DISASSEMBLY
(JAPANESE)
SEL1018 (E 4/10-18 OSS) (E 10-18mm F4 OSS)
16
17
16
10
13
ns
ns
22
15
19
19
21
19
19
9
4
4
1
2
11
18
14
12
3
5
8
A
F
G
E
D
C
A
G
C
Optical Block Section
(See section 3-1-2.)
6
7
7
7
7
20
20
7
D
E
F
3. REPAIR PARTS LIST
NOTE:
• -XX and -X mean standardized parts, so they may have some differ-
ence from the original one.
• Items marked
“*” are not stocked since they are seldom required for
routine service. Some delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number in the exploded views
are not supplied.

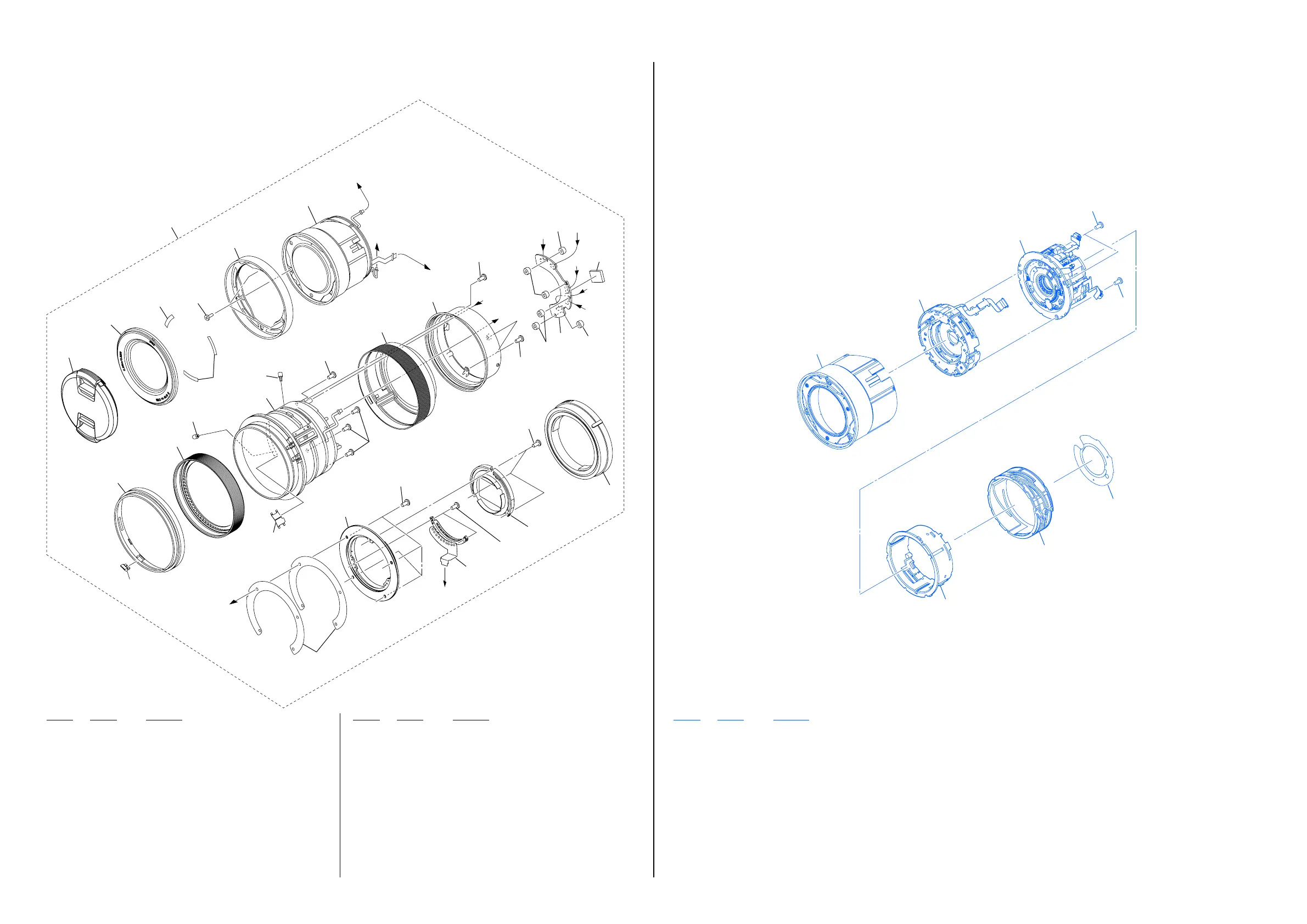

3-1. EXPLODED VIEWS
3-1-1. OVERALL SECTION
ns: not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
1 4-430-324-01 OPTICS UNIT (AB013) FOR SERVICE
2 X-2582-781-1 A FRONT CAP S (DIA.62)
3 4-447-421-01 (102) ORNAMENTAL PLATE
4 4-447-423-01 (188) ADHESIVE TAPE
5 4-159-676-01 F LOCK PIN
6 4-451-557-01 (101) FILTER SCREW FRAME
7 2-699-027-01 BT2P1.7X5C3C
8 4-451-665-01 (A09) FRONT TUBE ASSY
9 4-451-666-01 (A10) FOCUS RING ASSY
10 4-292-414-01 (113) PLATE, PI FIXED
11 4-451-667-01 (A11) ZOOM RING ASSY
12 4-451-668-01 (A12) REAR TUBE ASSY
13 4-409-954-01 SCREW, GP MOUNT + STOPPER
14 4-208-815-01 BT1P2X4C3C
15 4-209-146-01 CONTACT BLOCK ASSY, (A44)
16 4-292-410-01 2P1.4X2.2B3C
17 4-447-422-01 (402) REAR TUBE
18 4-159-701-03 REAR LENS CAP
19 4-261-330-01 RUBBER (B), PC BOARD DAMPER
20 4-458-532-01 (157)SCREW FOR CAM TUBE
21 4-455-924-01 (213) VIBRATION-PROOFING SHEET
22 4-688-929-01 MAIN PC BOARD ASSY (FW )
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2016.12
3-1-2. OPTICAL BLOCK SECTION
ns: not supplied
54
54
53
52
51
55
ns
ns
Ref. No. Part No. Description
51 4-688-926-01 GROUP ASSY, (A02) 1
52 4-688-927-01 SERVICE ASSY, VIBRATION PROOF
53 4-688-928-01 SERVICE ASSY, 2 GROUP
54 2-699-027-01 BT2P1.7X5C3C
55 4-688-930-01 MASK, 4 GROUP
