Index to parts and controls (continued)

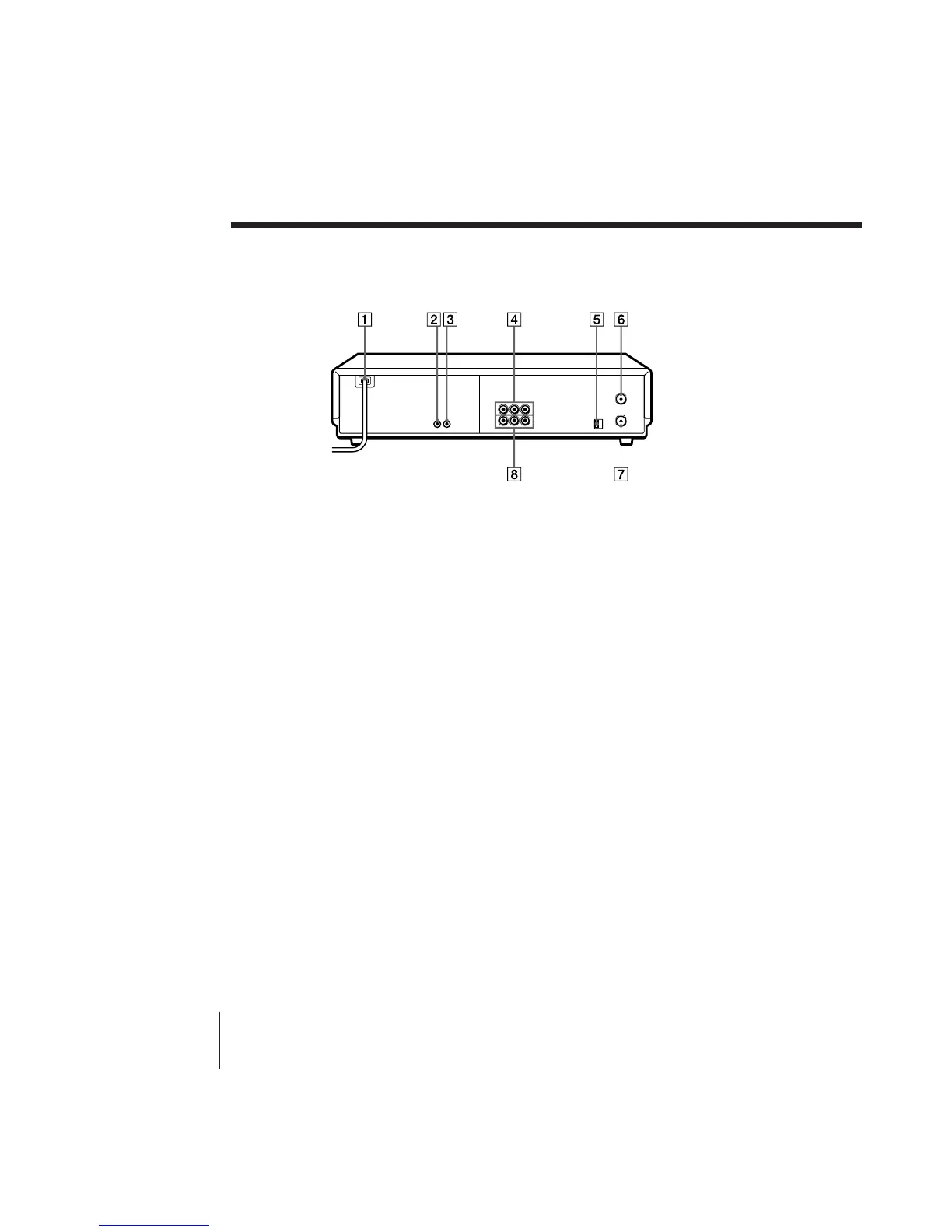

Rear panel
5 RF UNIT switch (78)
6 VHF/UHF IN connector (10, 13, 16,
19, 23, 26)
7 VHF/UHF OUT connector (10, 13,
16, 19, 23, 26)
8 LINE OUT AUDIO L/R/VIDEO
jacks (8)
1 AC Power cord
2 S-LINK (CONTROL S IN) jack (9,
74)
3 CABLE BOX CONTROL
(CONTROL S OUT) jack (10, 23)
4 LINE-1 IN AUDIO L/R/VIDEO
jacks (74)
