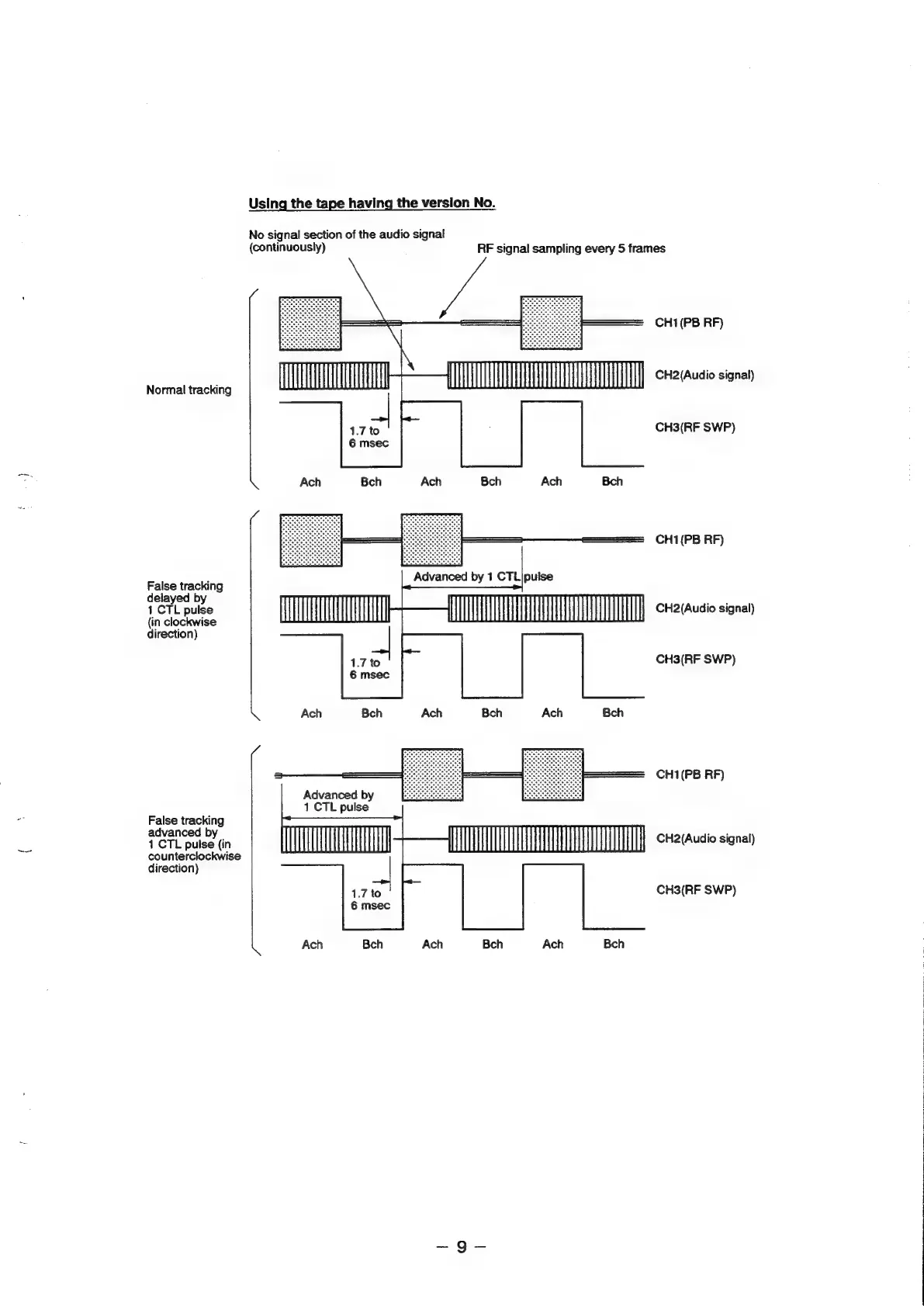

Using the tape having the version No.
No signal section of the audio signal
(continuously) RF signal sampling every 5 frames
CH1(PB RF)
CH2(Audio signal)
Normal tracking
CH3(RF SWP)
Ach Bch Ach Bch Ach Bch
CH1(PB RF)
False tracking
delayed by
1 CTL pulse CH2(Audio signal)
{in clockwise
direction)
CH3(RF SWP)
CH1(PB RF)
Advanced by
1 CTL pulse
oes ee
advance ee
1CTL
pals
ih
CH2(Audio
signal)
counterclockwise
direction)
CH3(RF SWP)
