2. MODIFICATION
2-1. CHANGING THE RECORDED CONTENTS
OF ALIGNMENT TAPE
KRV-S2NE (NTSC) (Ver. 1.2)
Recording only at | MHz, A-ch.
5 kHz > 4 kHz
EF mode full tracks
RF skipping once per 5 frames
2-2. TG2 ROLLER, FE HEAD ASSEMBLY
(Refer to VHS Mechanical Adjustment
Manual IV page14)
* The TG2 roller is provided with either of two types, fixed or
straight. For the fixed type, section 3-5 is added.

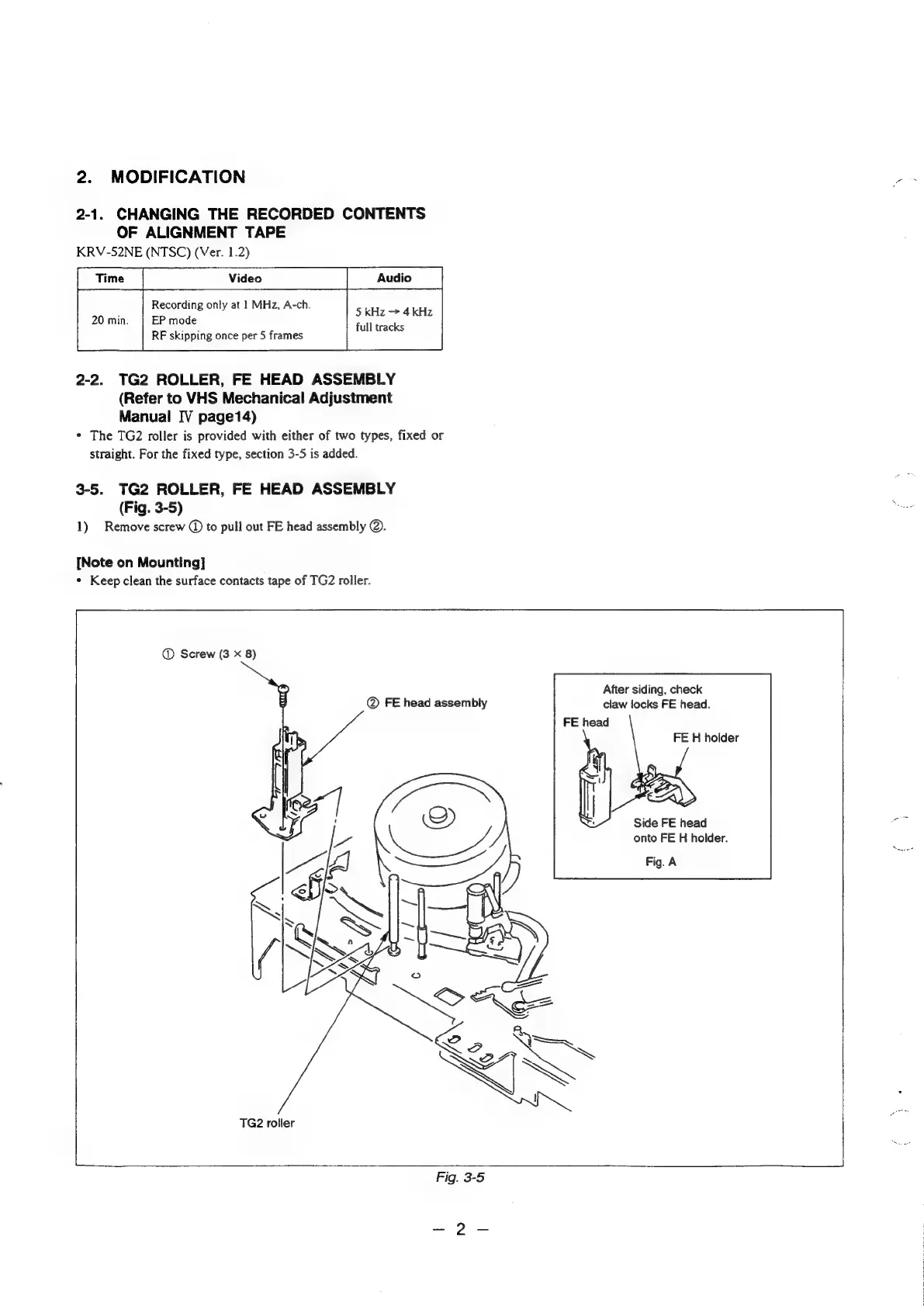

3-5. TG2 ROLLER, FE HEAD ASSEMBLY
(Fig. 3-5)
1) Remove screw (@ to pull out FE head assembly @.
[Note on Mounting]
* Keep clean the surface contacts tape of TG2 roller.
@ Screw (3 x 8)
After siding, check
@ FE head assembly claw locks FE head.
FE head
FE H holder
Side FE head
onto FE H holder.
Fig. A
TG2 roller
