2-3. TG3, TG6 GUIDE ROLLER ASSEMBLIES
(Refer to VHS Mechanical Adjustment
Manual IV page 17)
¢ There is another type in TG3 and TG6 guide roller assemblies,
which is not attached with a screw (B2X3). For the screwless
type, section 3-8 is added.

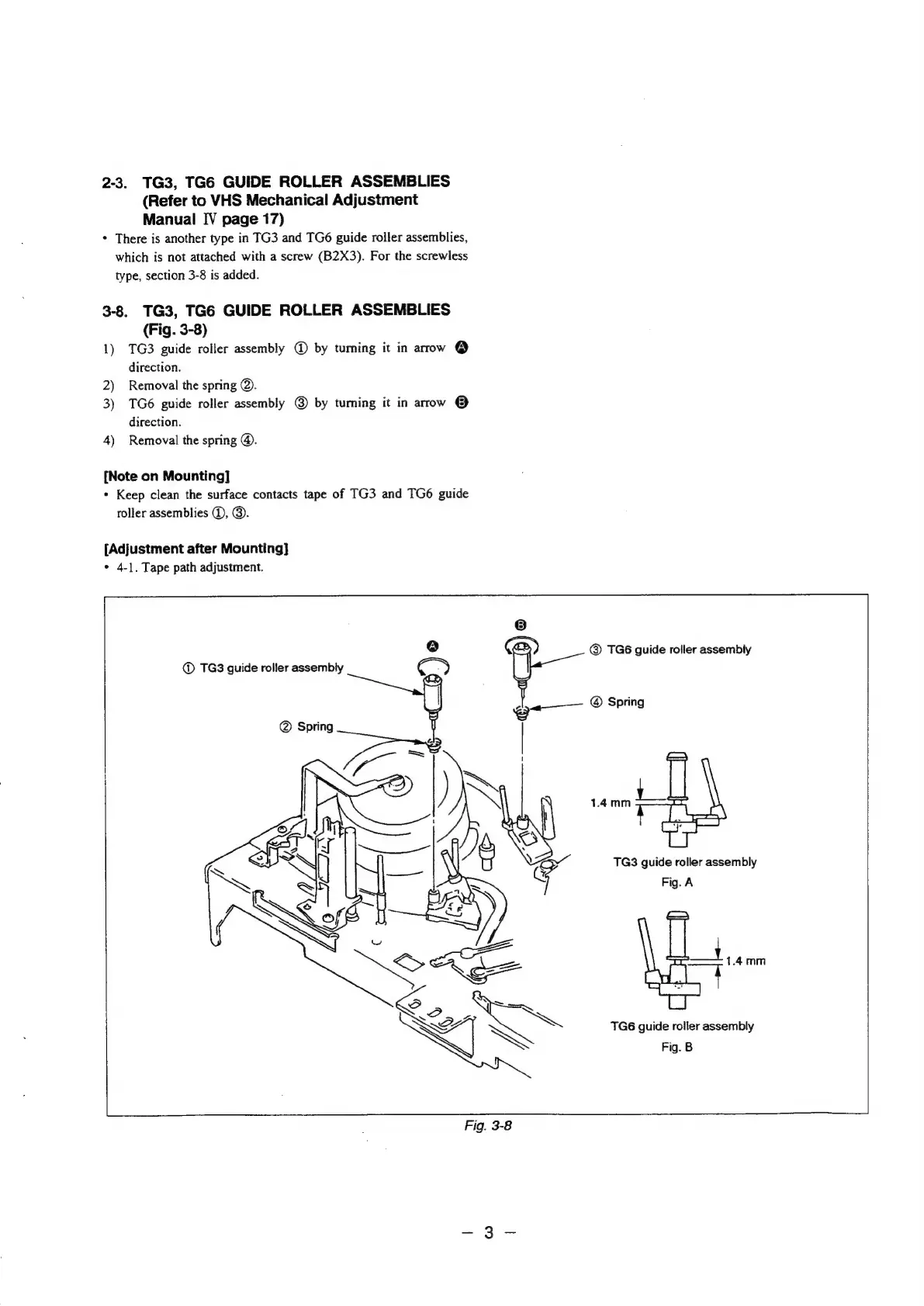

3-8. TG3, TG6 GUIDE ROLLER ASSEMBLIES
(Fig. 3-8)
1) TG3 guide roller assembly @ by tuming it in arow @
direction.
2) Removal the spring @.
3) TG6 guide roller assembly @ by tuming it in arrow @
direction.
4) Removal the spring @.
{Note on Mounting]
* Keep clean the surface contacts tape of TG3 and TG6 guide
roller assemblies ©, @.
[Adjustment after Mounting]
* 4-1. Tape path adjustment.
¢ ) ® TG6 guide roller assembly
®
@® TG3 guide roller assembly €-)
es @ Spring
@ Spring
TG6 guide roller assembly
Fig. B
