2-4. TG8 ASSEMBLY
(Refer to VHS Mechanical Adjustment
Manual IV page 23)
* As the shape of TG8 assembly was changed, Section 3-13 is
changed.
—_ : Chenged portion

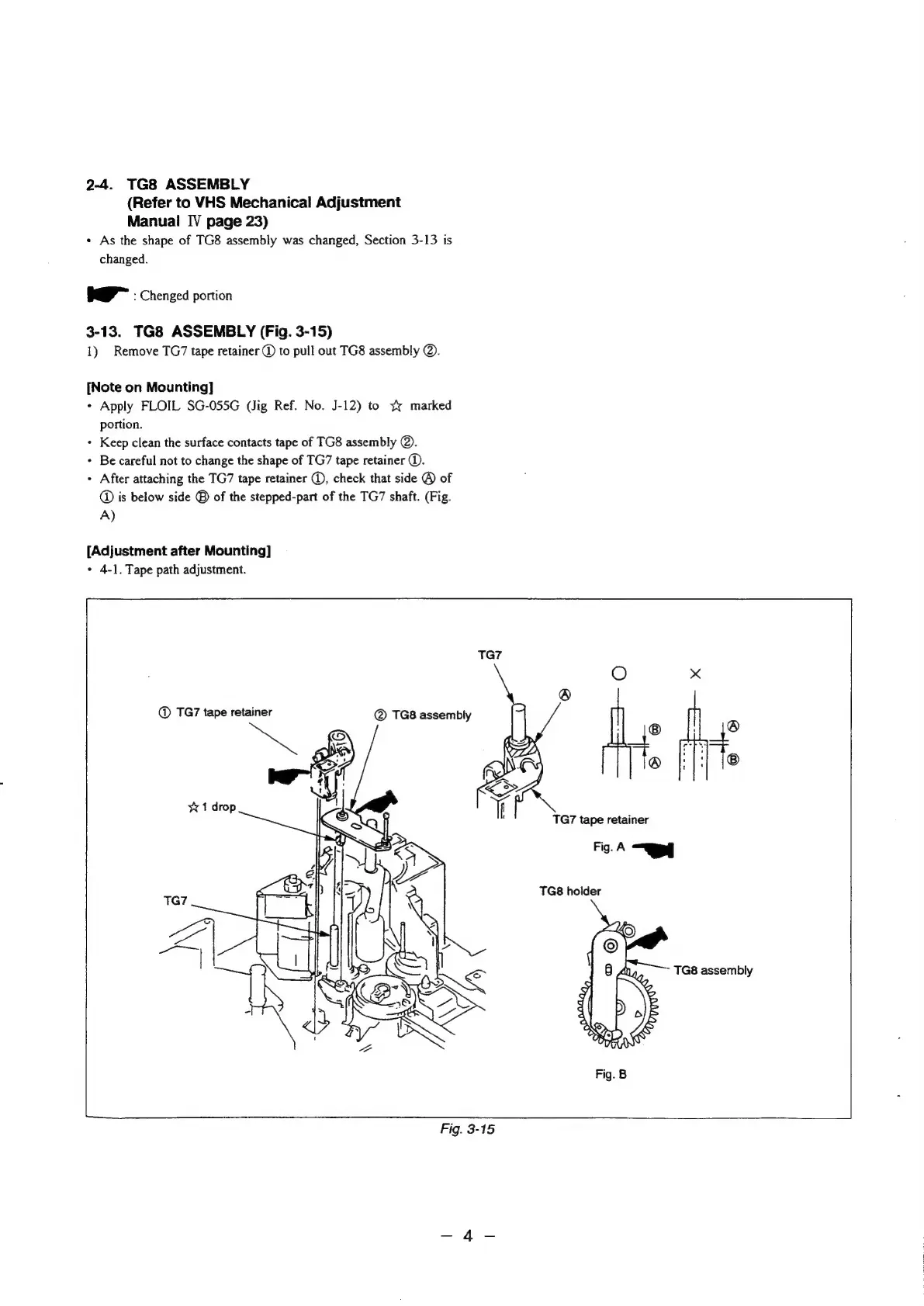

3-13. TG8 ASSEMBLY (Fig. 3-15)
1) Remove TG7 tape retainer @ to pull out TG8 assembly @.
[Note on Mounting]
¢ Apply FLOIL SG-055G (Jig Ref. No. J-12) to x marked
portion.
+ Keep clean the surface contacts tape of TG8 assembly @.
+ Be careful not to change the shape of TG7 tape retainer .
+ After attaching the TG7 tape retainer @, check that side ® of
© is below side ® of the stepped-part of the TG7 shaft. (Fig.
A)
[Adjustment after Mounting]
+ 4-1. Tape path adjustment.
TG7
O
®
@ TG7 tape retainer @ TG8 assembly
ft
:
;
®
¥% 1 drop
TG7 tape retainer
Fig. A |
TG8 holder
TG8 assembly
Fig. 3-15
