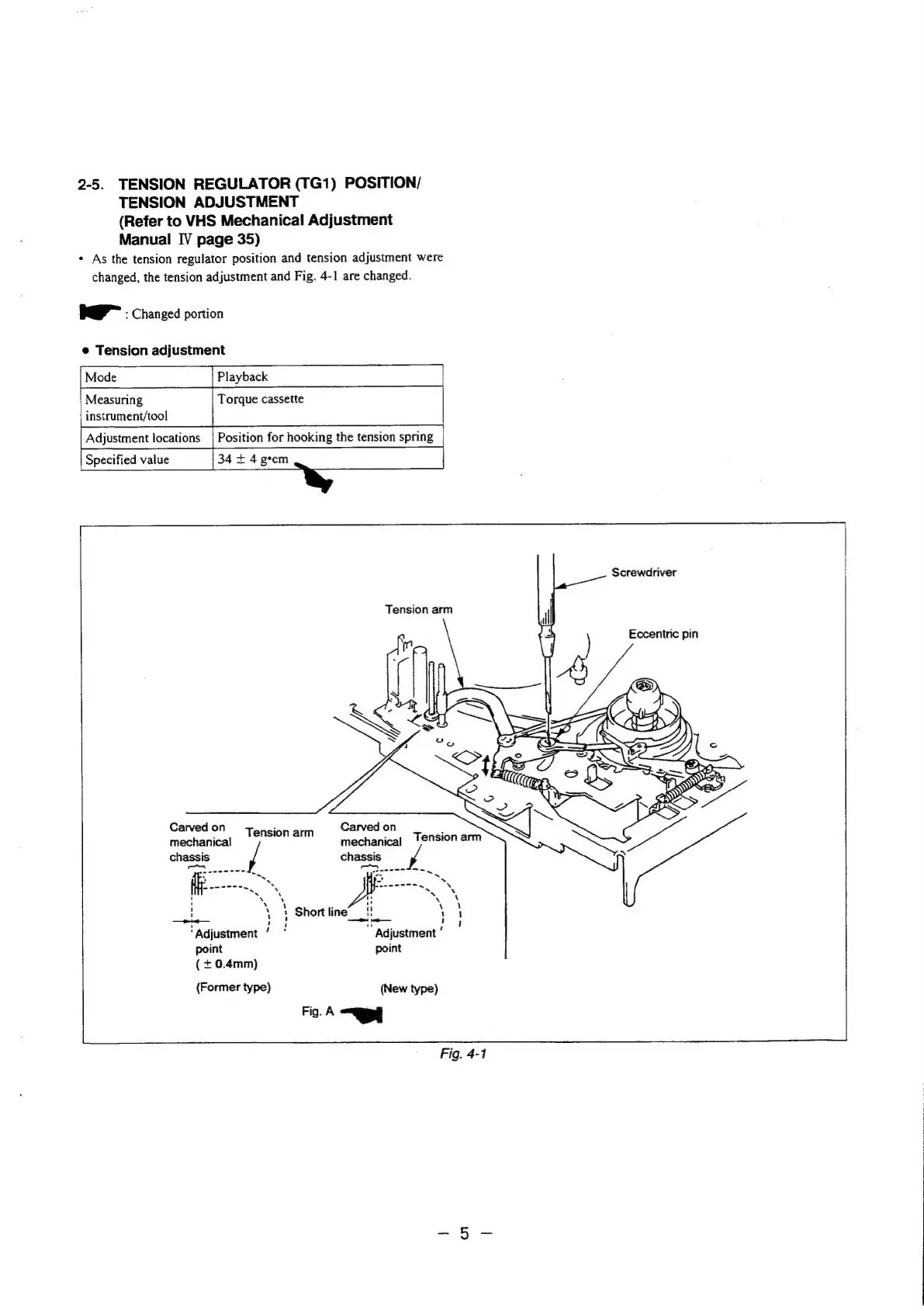

2-5. TENSION REGULATOR (TG1) POSITION/
TENSION ADJUSTMENT
(Refer to VHS Mechanical Adjustment
Manual IV page 35)
* As the tension regulator position and tension adjustment were
changed, the tension adjustment and Fig. 4-1 are changed.
—_ : Changed portion
@ Tension adjustment
Mode Playback
Measuring Torque cassette
instrument/tool
Adjustment locations | Position for hooking the tension spring
34+ 4 gecm
Specified value
Screwdriver
Tension arm
Eccentric pin
Carved on Tension arm Carved on
Tension arm
mechanical mechanical
chassis y chassis
eased eee a re a tes Panic, 2
fhe ee “s . ‘ oer “\ S
' Sa N ‘i Ny \
ah \ 4 Shortline™ \ H
‘Adjustment ' : ” Adjustment ‘
point point
(+ 0.4mm)
(Former type) (New type)
Fig. A — i
Fig. 4-1
