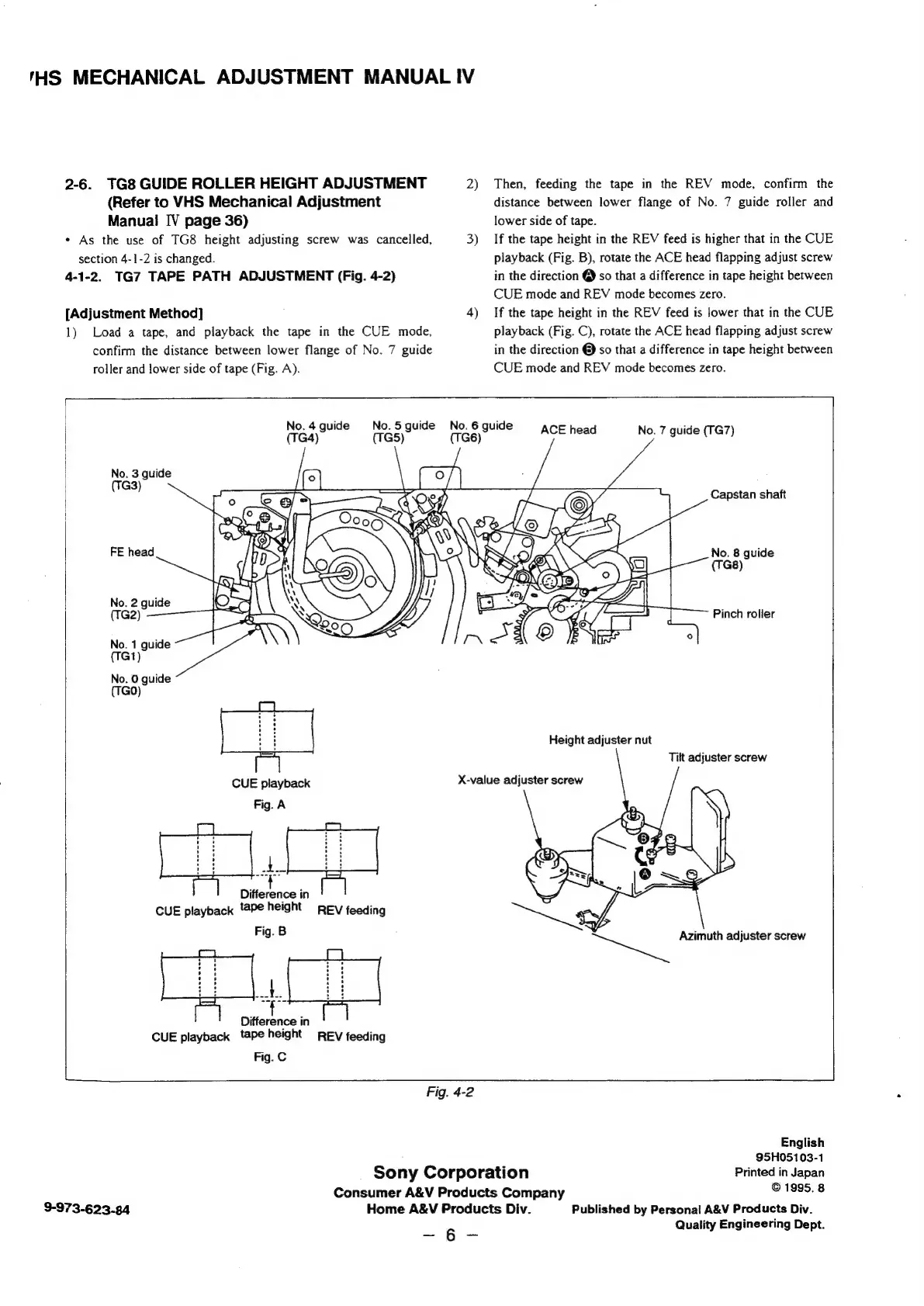

'HS MECHANICAL ADJUSTMENT MANUAL IV
2-6. TG8 GUIDE ROLLER HEIGHT ADJUSTMENT 2) Then, feeding the tape in the REV mode, confirm the
(Refer to VHS Mechanical Adjustment distance between lower flange of No. 7 guide roller and
Manual IV page 36) lower side of tape.
* As the use of TG8 height adjusting screw was cancelled, 3) If the tape height in the REV feed is higher that in the CUE
section 4-1-2 is changed. playback (Fig. B), rotate the ACE head flapping adjust screw
4-1-2. TG7 TAPE PATH ADJUSTMENT (Fig. 4-2) in the direction @ so that a difference in tape height between
CUE mode and REV mode becomes zero.
[Adjustment Method] 4) If the tape height in the REV feed is lower that in the CUE
1) Load a tape, and playback the tape in the CUE mode, playback (Fig. C), rotate the ACE head flapping adjust screw
confirm the distance between lower flange of No. 7 guide in the direction @ so that a difference in tape height between
roller and lower side of tape (Fig. A). CUE mode and REV mode becomes zero.
No. 4 guide No. 5 guide No. 6 guide F
(TGA) (T@5) (TG6) ACE head No. 7 guide (TG7)
No. 3 guide
G3
(ee) Capstan shaft
FE head No. 8 guide
(TG8)
No. 2 guide
(TG2) Pinch roller
No. 1 guide :
(TGt)
No. 0 guide
(TGO)
=
gs Height adjuster nut
Tilt adjuster screw
CUE
playback
X-value
adjuster
screw
Fig. A
5 es
ss nein
Difference in
CUE
playback
‘ape
height
REV
feeding
NS
y
Fig.
B
‘
ae Azimuth adjuster screw
Difference in
CUE playback tape height REV feeding
Fig. C
Fig. 4-2
