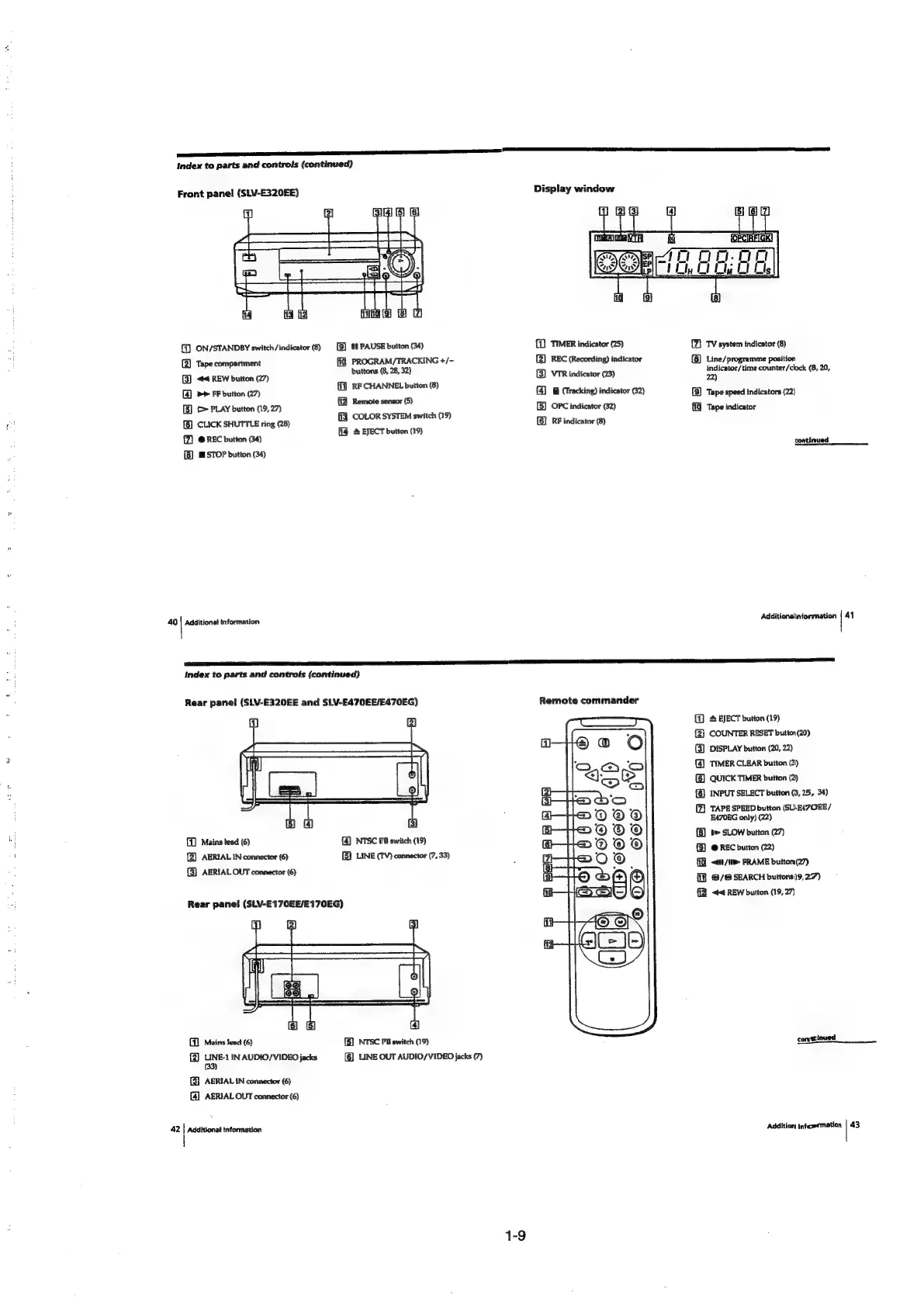

Index to parts and controls (continued)
Front panel (SLV-E320EE)
{1] ON/STANDBY switch/indicator (8) (8) 88 PAUSE button (34)
({] PROGRAM/TRACKING +/-
buttons (8, 28, 32)
ff] RE CHANNEL button (8)
(2 Remote sensor (5)
[3 COLOR SYSTEM switch (19)
(f 4 EJECT button (19)
(2) Tape compartment
(G] << REW button (27)
(4) >» FF button (27)
[) & PLAY button (19, 27)
CLICK SHUTTLE ring (28)
@ REC button (34)
lm STOP button (34)
40 | Additional information
Display window
£1] TIMER indicator (25)
[2] REC (Recording) indicator
(3) VTR indicator (23)
(4) @ {Tracking) indicator (32)
[5) OPC indicator (32)
() RF indicator (8)
{7} TV system indicator (8)
Line/ programme position
indicator/time counter /clock (8, 20,
2)
[3] Tape speed indicators (22)
Tape indicator
continued
Additionalinformation | 41
Index to parts and controls (continued)
Rear panel (SLV-E320EE and SLV-E470EE/E470EG)
(0) Mains lead (6)
{2} AERIAL IN connector (6)
{3} AERIAL OUT connector (6)
(4) NTSC PB switch (19)
[8] LINE (TV) connector (7, 33)
Rear panel (SLV-E170EE/E170EG)
Gi] Mains lead (6)
{2} LINE-1 IN AUDIO/VIDEO jacks
(33)
AERIAL IN connector (6)
[4] AERIAL OUT connector (6)
(5) NTSC PB switch (19)
LINE OUT AUDIO/VIDEO jacks (7)
42 | Additional information
Remote commander
8
gp
oo 0% O
©GO0
©
®
1)
1-9
(0 4 BJECT button (19)
{2} COUNTER RESET button(20)
(3) DISPLAY button (20, 22)
{4] TIMER CLEAR button (3)
(5) QUICK TIMER button (2)
INPUT SELECT button (8, 25, 34)
£7] TAPE SPEED button (SL\E470EE/
EA70EG only) (22)
B® SLOW button (27)
@ REC button (22)
<i! /it FRAME button(27)
(ff) @/€ SEARCH buttons 19,27)
44 REW button (19, 27)
continued
