Sony SLV-E170EE - Page 36

5-1-3.
MECHANISM
DECK

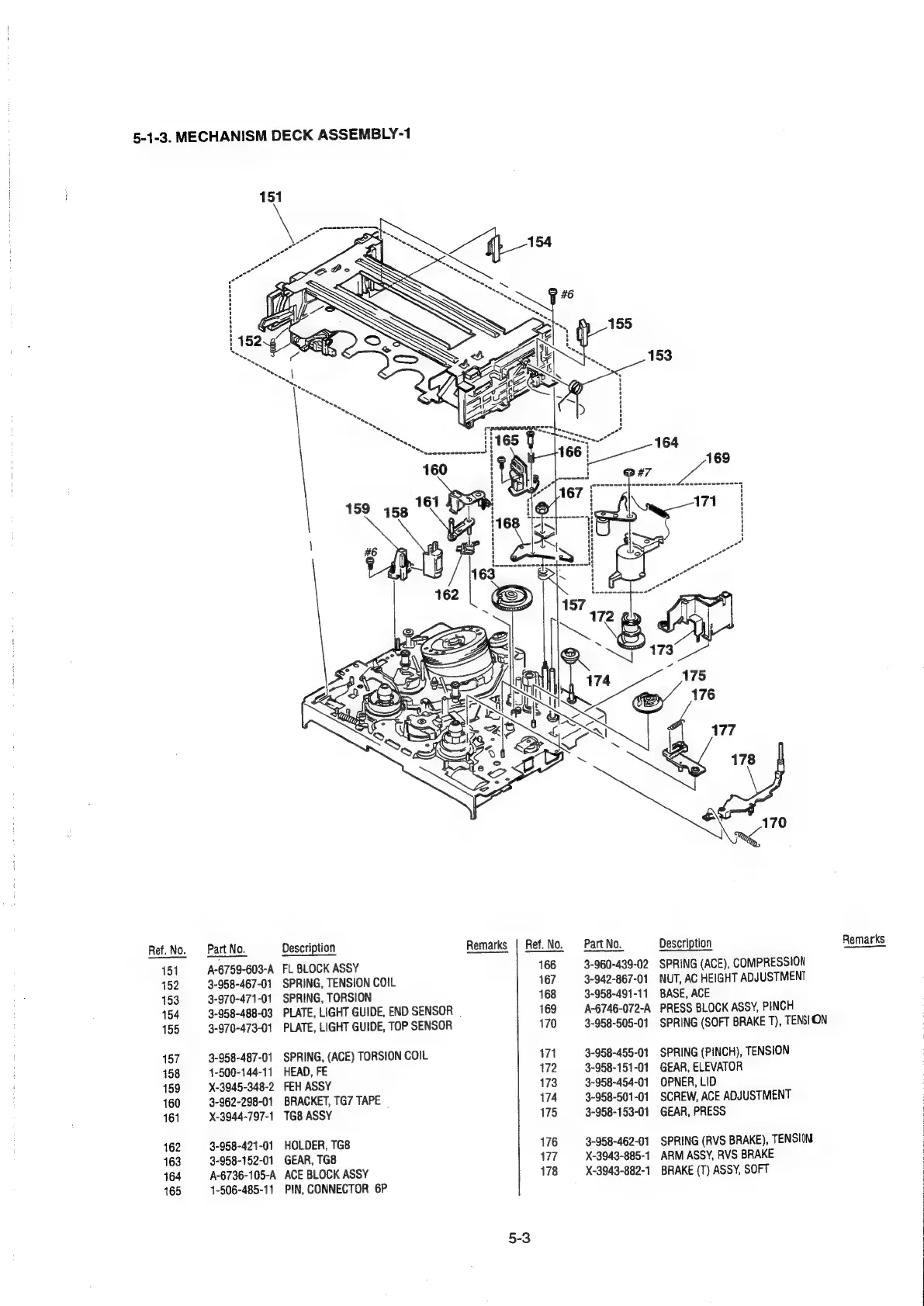

ASSEMBLY-1
Ret. No.
151
152
153
154
155
157
158
159
160
161
162
163
164
165
Part No.
A-6759-603-A
3-958-467-01
3-970-471-01
3-958-488-03
3-970-473-01
3-958-487-01
4-500-144-11
X-3945-348-2
3-962-298-01
X-3944-797-1
3-958-421-01
3-958-152-01
A-6736-105-A
1-606-485-11
Description
Remarks
FL BLOCK ASSY
SPRING, TENSION COIL
SPRING, TORSION
PLATE, LIGHT GUIDE, END SENSOR |
PLATE, LIGHT GUIDE, TOP SENSOR
SPRING, (ACE) TORSION COIL
HEAD, FE
FEH ASSY
BRACKET, TG7 TAPE |
TG8 ASSY
HOLDER, TG8
GEAR, TG8
ACE BLOCK ASSY
PIN, CONNECTOR 6P
Ref. No.
166
167
168
169
170
171
172
173
174
175
176
177
178
5-3
ss eee
Part No.
3-960-439-02
3-942-867-01
3-958-491-11
A-6746-072-A
3-958-505-01
3-958-455-01
3-958-151-01
3-958-454-01
3-958-501-01
3-958-153-01
3-958-462-01
X-3943-885-1
X-3943-882-1
‘.
Description
Remarks
SPRING (ACE), COMPRESSION
NUT, AC HEIGHT ADJUSTMENT
BASE, ACE
PRESS BLOCK ASSY, PINCH
SPRING
(SOFT
BRAKE
T),
TENSION
SPRING (PINCH), TENSION
GEAR, ELEVATOR
OPNER, LID
SCREW, ACE ADJUSTMENT
GEAR, PRESS
SPRING (RVS BRAKE), TENSION
ARM ASSY, RVS BRAKE
BRAKE (T) ASSY, SOFT
