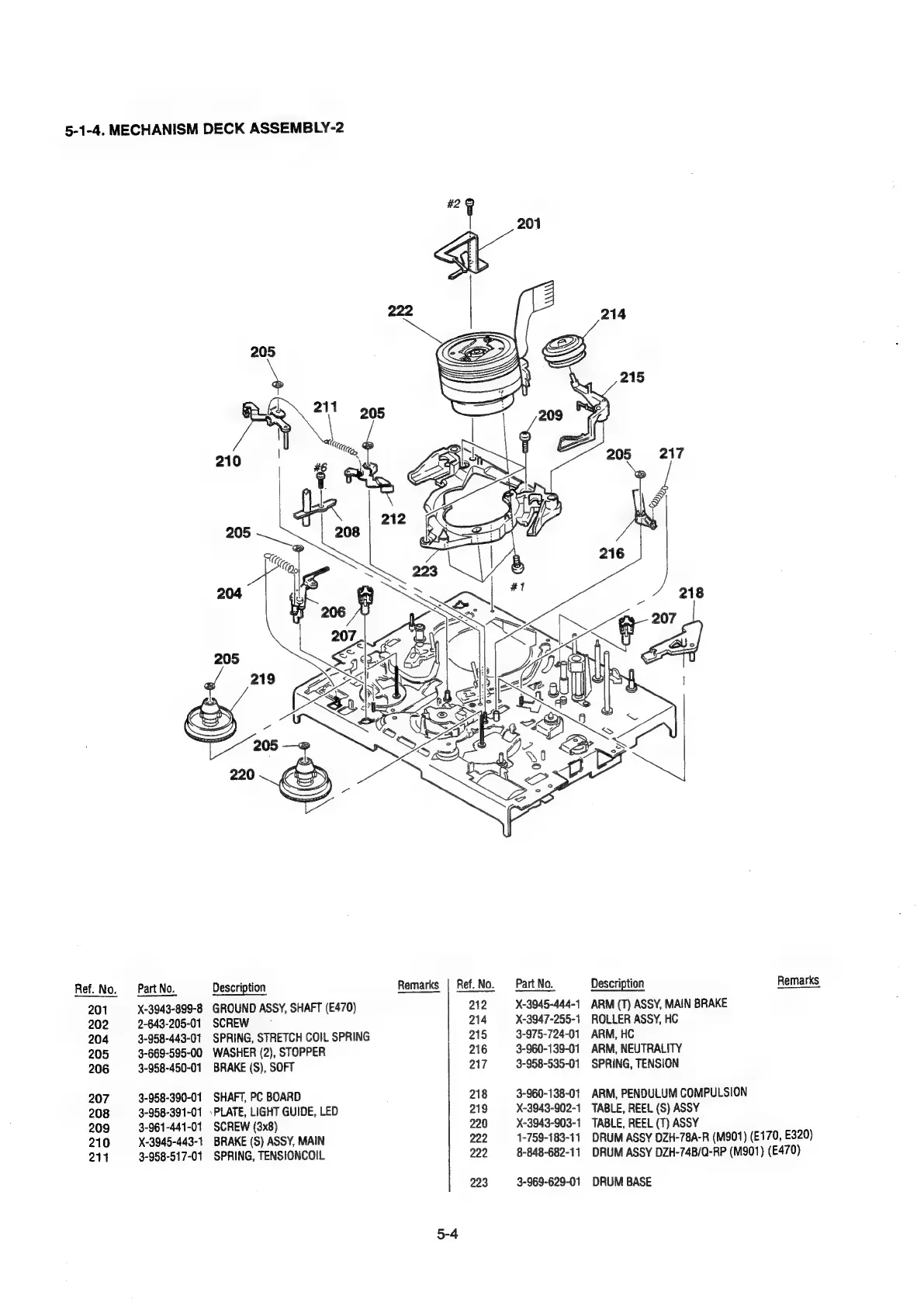

5-1-4.
MECHANISM
DECK
ASSEMBLY-2
Ref. No.
201
202
204
205
206
207
208
209
210
211
Part No.
X-3943-899-8
2-643-205-01
3-958-443-01
3-669-595-00
3-958-450-01
3-958-390-01
3-958-391-01
3-961-441-01
X-3945-443-1
3-958-517-01
205
uk \ 211 995
“aay ‘
s
210
Description
GROUND ASSY, SHAFT (E470)
SCREW
SPRING, STRETCH COIL SPRING
WASHER (2), STOPPER
BRAKE (S), SOFT
SHAFT, PC BOARD
“PLATE, LIGHT GUIDE, LED
SCREW (3x8)
BRAKE (S) ASSY, MAIN
SPRING, TENSIONCOIL
Remarks | Ref. No.
5-4
212
214
215
216
217
218
219
220
222
222
223
Part No.
X-3945-444-1
X-3947-255-1
3-975-724-01
3-960-139-01
3-958-535-01
3-960-138-01
X-3943-902-1
X-3943-903-1
1-759-183-11
8-848-682-11
3-969-629-01
Description
Remarks
ARM (T) ASSY, MAIN BRAKE
ROLLER ASSY, HC
ARM, HC
ARM, NEUTRALITY
SPRING, TENSION
ARM, PENDULUM COMPULSION
TABLE, REEL (S) ASSY
TABLE, REEL (T) ASSY
DRUM
ASSY
DZH-78A-R
(M901)
(E170,
E320)
DRUM
ASSY
DZH-74B/Q-RP
(M901)
(E470)
DRUM BASE
