Sony SLV-E170EE - Page 38

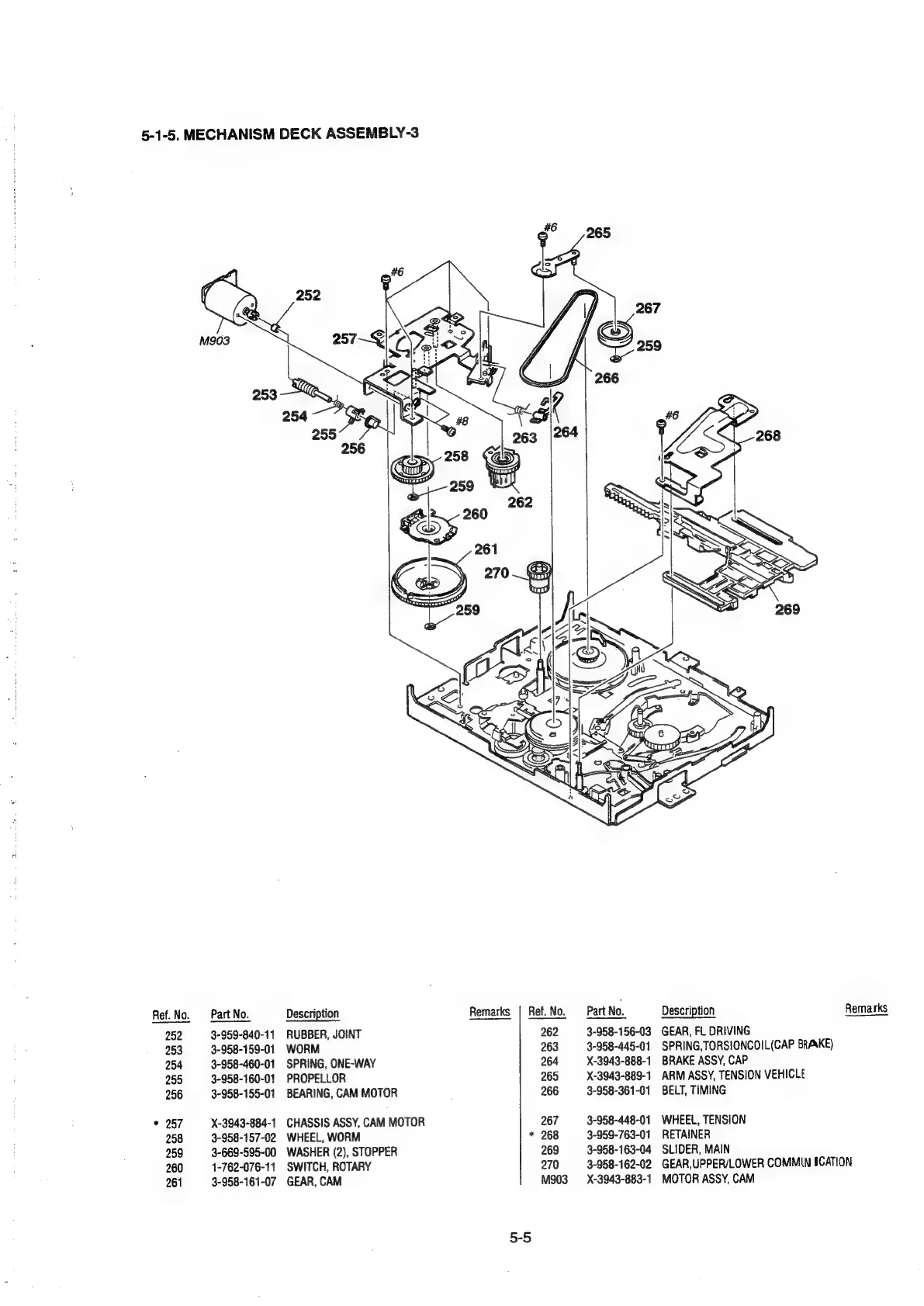

5-1-5. MECHANISM DECK ASSEMBLY-3
Ref. No.
252
253
254
255
256
* 257
258
259
260
261
M903
Part No.
3-959-840-11
3-958-159-01
3-958-460-01
3-958-160-01
3-958-155-01
X-3943-884-1
3-958-157-02
3-669-595-00
1-762-076-11
3-958-161-07
Description
RUBBER, JOINT
WORM
SPRING, ONE-WAY
PROPELLOR
BEARING, CAM MOTOR
CHASSIS ASSY, CAM MOTOR
WHEEL, WORM
WASHER (2}, STOPPER
SWITCH, ROTARY
GEAR, CAM
Remarks | Ref. No.
262
263
264
265
266
267
268
269
270
M903
JA Wu
Part No.
3-958-156-03
3-958-445-01
X-3943-888-1
X-3943-889-1
3-958-361-01
3-958-448-01
3-959-763-01
3-968-163-04
3-958-162-02
X-3943-883-1
Description Remarks
GEAR, FL DRIVING
SPRING, TORSIONCOIL(CAP BRAXKE)
BRAKE ASSY, CAP
ARM ASSY, TENSION VEHICLE
BELT, TIMING
WHEEL, TENSION
RETAINER
SLIDER, MAIN
GEAR, UPPER/LOWER COMMUN ICATION
MOTOR ASSY, CAM
