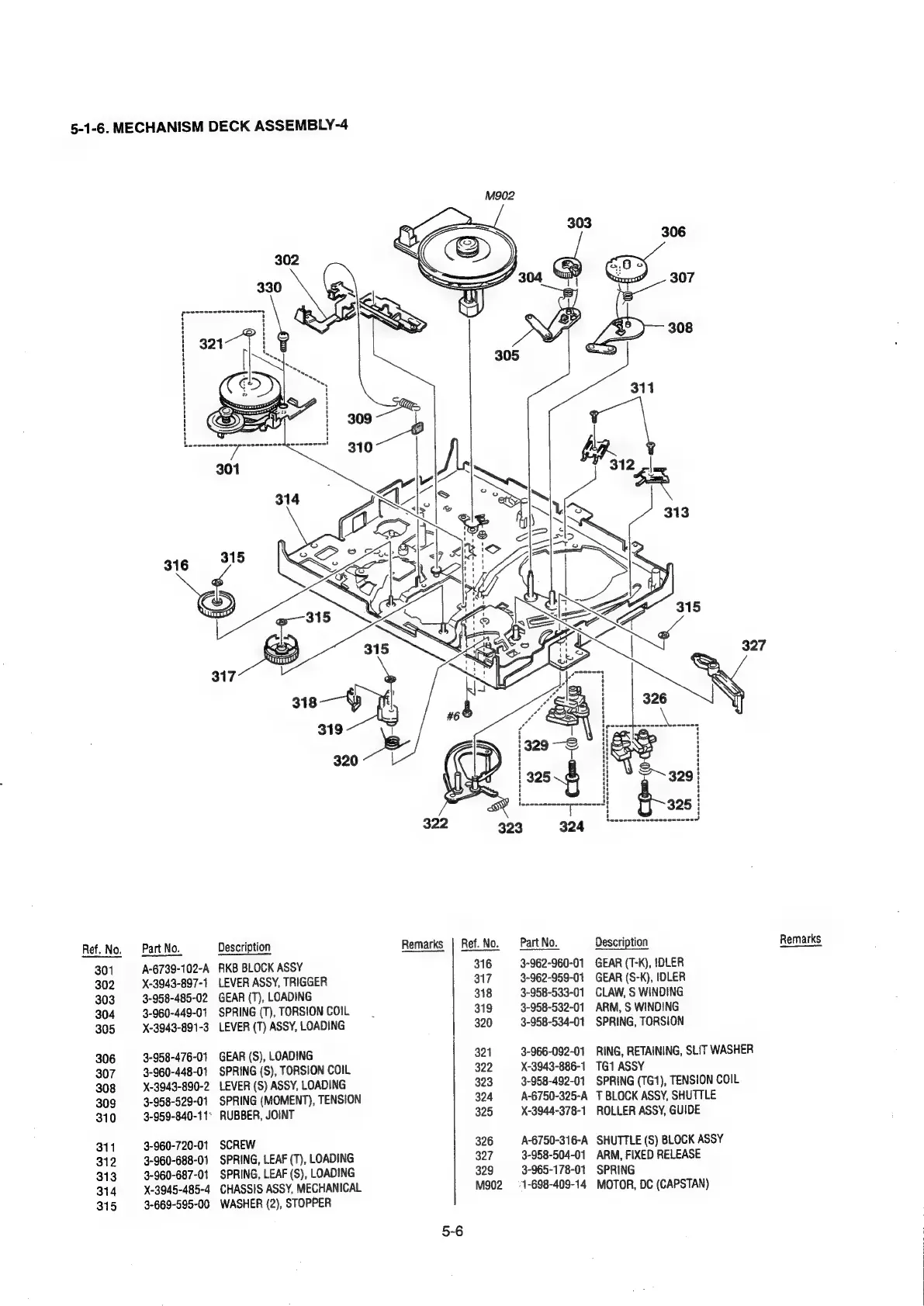

5-1-6.
MECHANISM
DECK
ASSEMBLY-4
Ref. No.
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
Part No.
A-6739-102-A
X-3943-897-1
3-958-485-02
3-960-449-01
X-3943-891-3
3-958-476-01
3-960-448-01
X-3943-890-2
3-958-529-01
3-959-840-11°
3-960-720-01
3-960-688-01
3-960-687-01
X-3945-485-4
3-669-595-00
330
Description
RKB BLOCK ASSY
LEVER ASSY, TRIGGER
GEAR (T), LOADING
SPRING (T), TORSION COIL
LEVER (T) ASSY, LOADING
GEAR (S), LOADING
SPRING (S), TORSION COIL
LEVER (S) ASSY, LOADING
SPRING (MOMENT), TENSION
RUBBER, JOINT
SCREW
SPRING, LEAF (T), LOADING
SPRING, LEAF (S), LOADING
CHASSIS ASSY, MECHANICAL
WASHER (2), STOPPER
322
Remarks
323 324
Ref.No. Part No.
316 3-962-960-01
317 3-962-959-01
318 3-958-533-01
319 3-958-532-01
320 3-958-534-01
321 3-966-092-01
322 X-3943-886-1
323 3-958-492-01
324 A-6750-325-A
325 X-3944-378-1
326 A-6750-316-A
327 3-958-504-01
329 3-965-178-01
M902 ~=—s-. 11-698-409-14
327
Description
Remarks
GEAR (T-K), IDLER
GEAR (S-K), IDLER
CLAW, S WINDING
ARM, S WINDING
SPRING, TORSION
RING, RETAINING, SLIT WASHER
TG1 ASSY
SPRING (TG1), TENSION COIL
T BLOCK ASSY, SHUTTLE
ROLLER ASSY, GUIDE
SHUTTLE (S) BLOCK ASSY
ARM, FIXED RELEASE
SPRING
MOTOR, DC (CAPSTAN)
