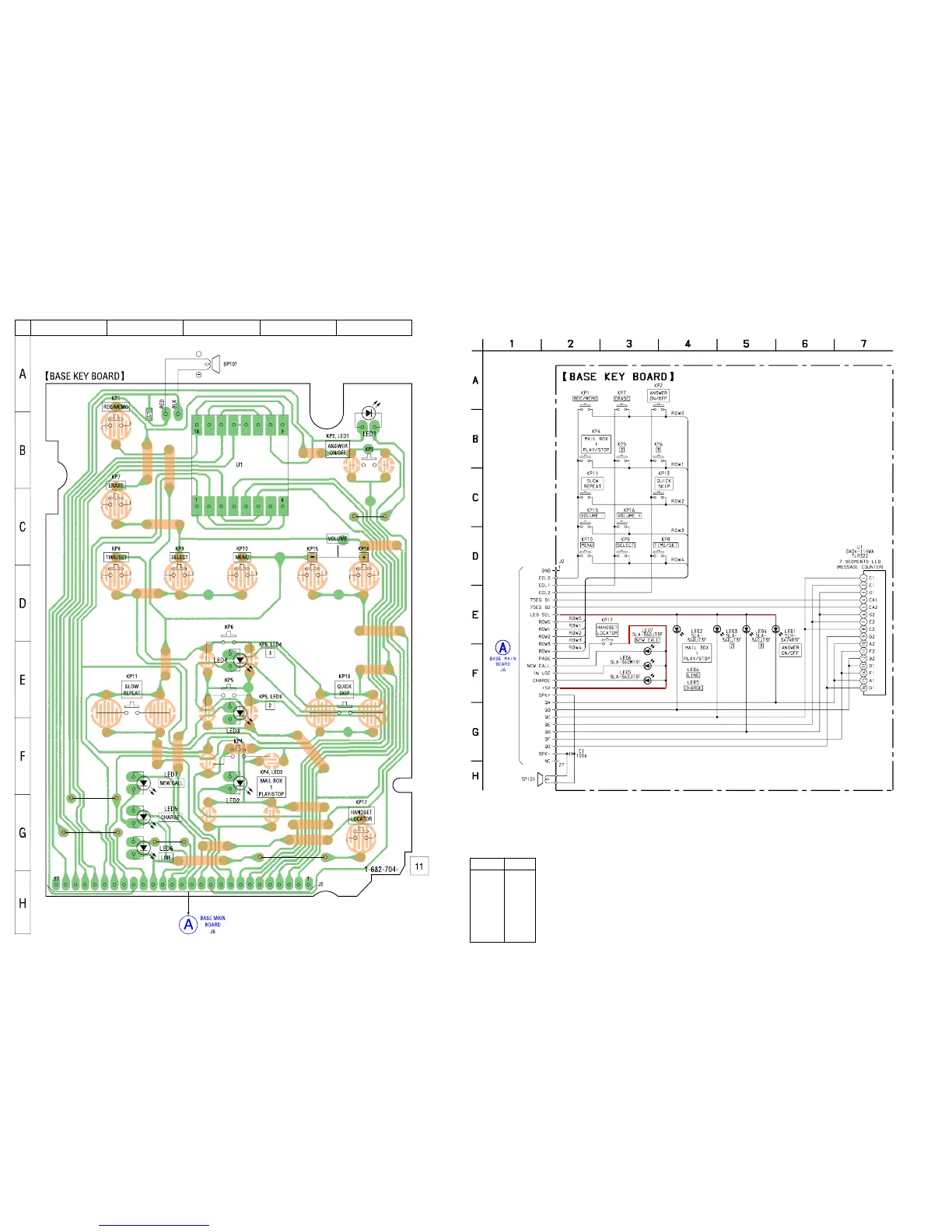

Sony SPP-A1071 - Printed Wiring Board - BASE KEY Board; Schematic Diagram - BASE KEY Board

SPP-A1070/A1071
1616
+
1 2 3 4 5
5-7. SCHEMATIC DIAGRAM – BASE KEY Board –
5-6. PRINTED WIRING BOARD – BASE KEY Board –
• Semiconductor
Location
Ref. No. Location
LED1 B-5
LED2 F-3
LED3 E-3
LED4 E-3
LED5 G-2
LED6 G-2
LED7 F-2
U1 B-3
(Page 14)
(Page 15)
