Sony SPP-A1071 - DISASSEMBLY; Handset Rear Assembly

SPP-A1070/A1071
5
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
Set
H/S rear assy H/S FRT assy
HAND MAIN board
BASE MAIN board
Base bottom
Note: Follow the disassembly procedure in the numerical order given.

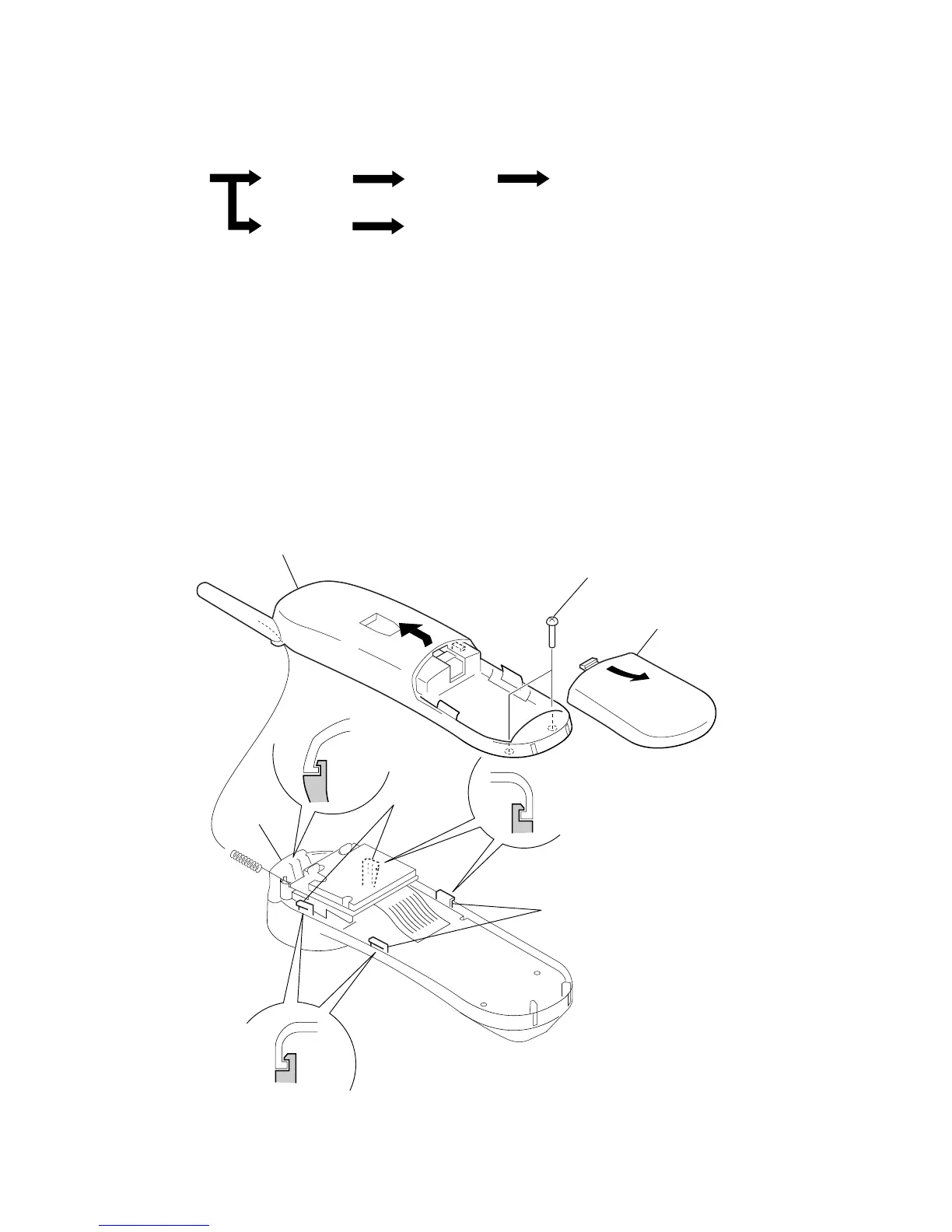

3-2. H/S REAR ASSY
5 Remove the H/S rear assy
in the direction of arrow
B .
1 Remove the battery lid
in the direction of arrow
A .
4 claw
3 two claws
3 two claws
2 two screws
(BTP3
× 10)
A
B
