Sony SPP-A1071 - Base Set Section; 6 Exploded Views; Hand Set Section

SPP-A1070/A1071
2020

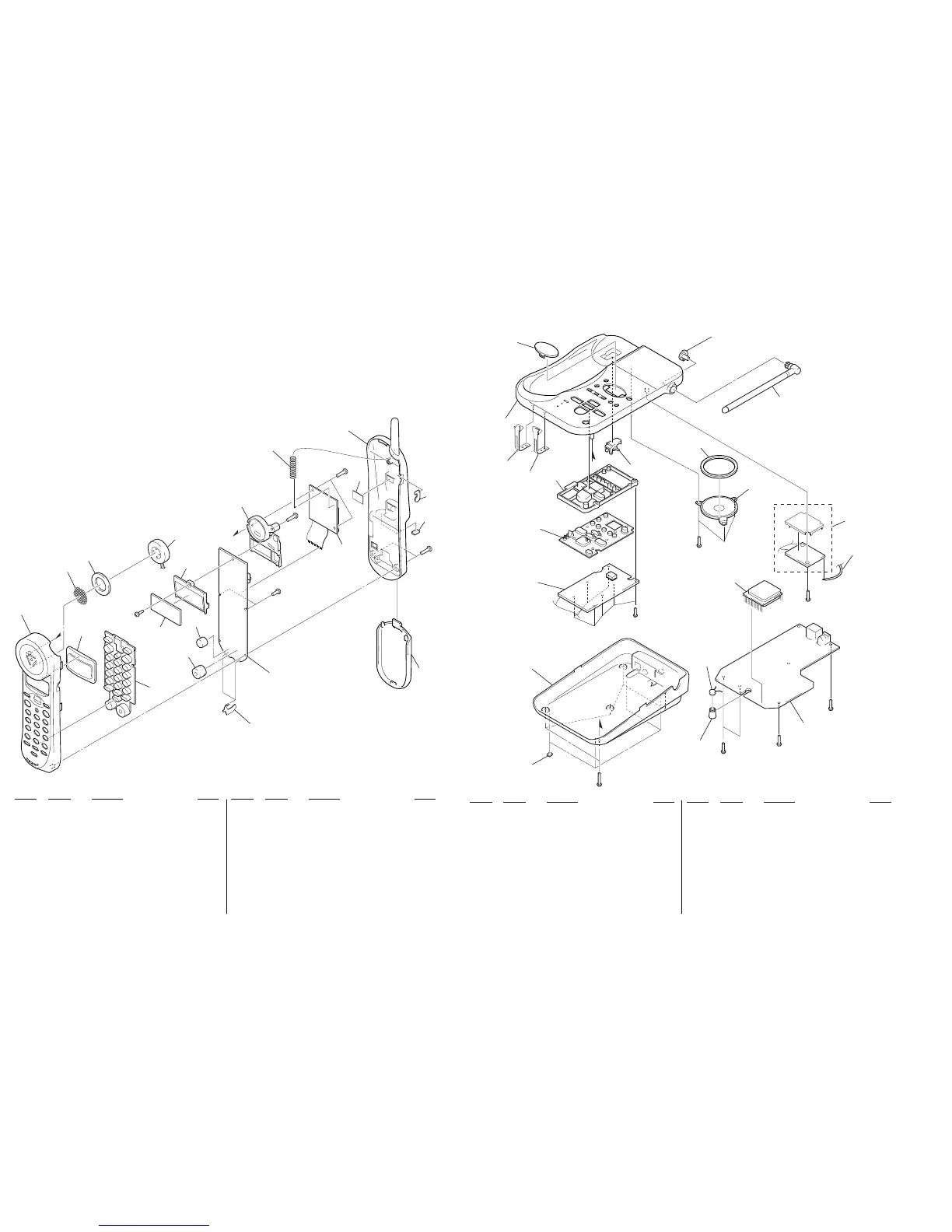

6-1. HAND SET SECTION
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-3381-065-1 H/S FRT ASSY (A1070)
1 X-3381-067-1 H/S FRT ASSY (A1071)
2 3-230-080-01 LENS (H/S)
3 3-012-611-01 SHEET (RECEIVER)
4 3-371-005-01 GASKET (RECEIVER) (TWN)
5 3-041-535-01 FELT, RX
* 7 3-230-085-01 RECEIVER BKT
8 3-234-372-01 SPRING, ANT
9 3-230-079-01 COVER HP JACK
10 3-230-074-01 LID BATTERY
11 A-3062-653-A HAND RF UNIT
* 12 A-3062-658-A HAND MAIN BOARD, COMPLETE (A1070)
* 12 A-3062-742-A HAND MAIN BOARD, COMPLETE (A1071)
13 3-233-775-01 TERMINAL (HS) (L), CHARGE
14 3-230-078-01 RUBBER KEY (H/S)
15 3-230-081-01 DIFFUSER
16 X-3381-064-1 H/S REAR ASSY
BUZ1 1-544-603-11 BUZZER
LCD1 1-804-511-11 LCD MODULE (H/S)
MIC1 1-542-260-31 MICROPHONE, ELECTRET CONDENSER
SP1 1-505-593-11 SPEAKER (2.8cm)
SP1
#2
#2
#2
#1
BUZ1
MIC1
not
supplie
d
LCD1
#3
4
3
1
14
12
9
10
7
8
16
5
15
2
13
11
6-2. BASE SET SECTION
59
58
57
56
55
60
61
62
54
53
52
51
68
67
66
65
not
supplied
SP101
MIC101
#4
#2
#5
#2
#2
#2
#2
64
51 3-041-534-01 FOOT, RUBBER
52 3-230-088-01 BASE BOTTOM (A1070)
52 3-234-971-01 BASE BOTTOM (A1071)
* 53 1-682-704-11 BASE KEY BOARD
54 3-230-090-01 BASE KEY PAD
55 3-230-089-01 BASE KEY SET
56 3-233-779-01 TERMINAL (BS) (RA), CHARGE
57 3-233-778-01 TERMINAL (BS) (LA), CHARGE
58 3-230-087-01 BASE TOP (A1070)
58 3-234-970-01 BASE TOP (A1071)
59 3-230-067-01 LENS (7 SEG)
60 3-230-068-01 HOOK HANGER
61 3-233-543-01 STOPPER, ANT
62 3-233-542-01 ANT B/S
64 3-236-106-01 FORM, SPK CUSHION BS
65 A-3062-655-A BASE RF UNIT
* 66 A-3672-917-A BASE I-TAD UNIT
* 67 A-3062-656-A BASE MAIN BOARD, COMPLETE
* 68 3-042-428-01 CUSHION, MIC
MIC101 1-542-260-31 MICROPHONE, ELECTRET CONDENSER
SP101 1-544-035-11 SPEAKER (5cm)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
Ver 1.1
