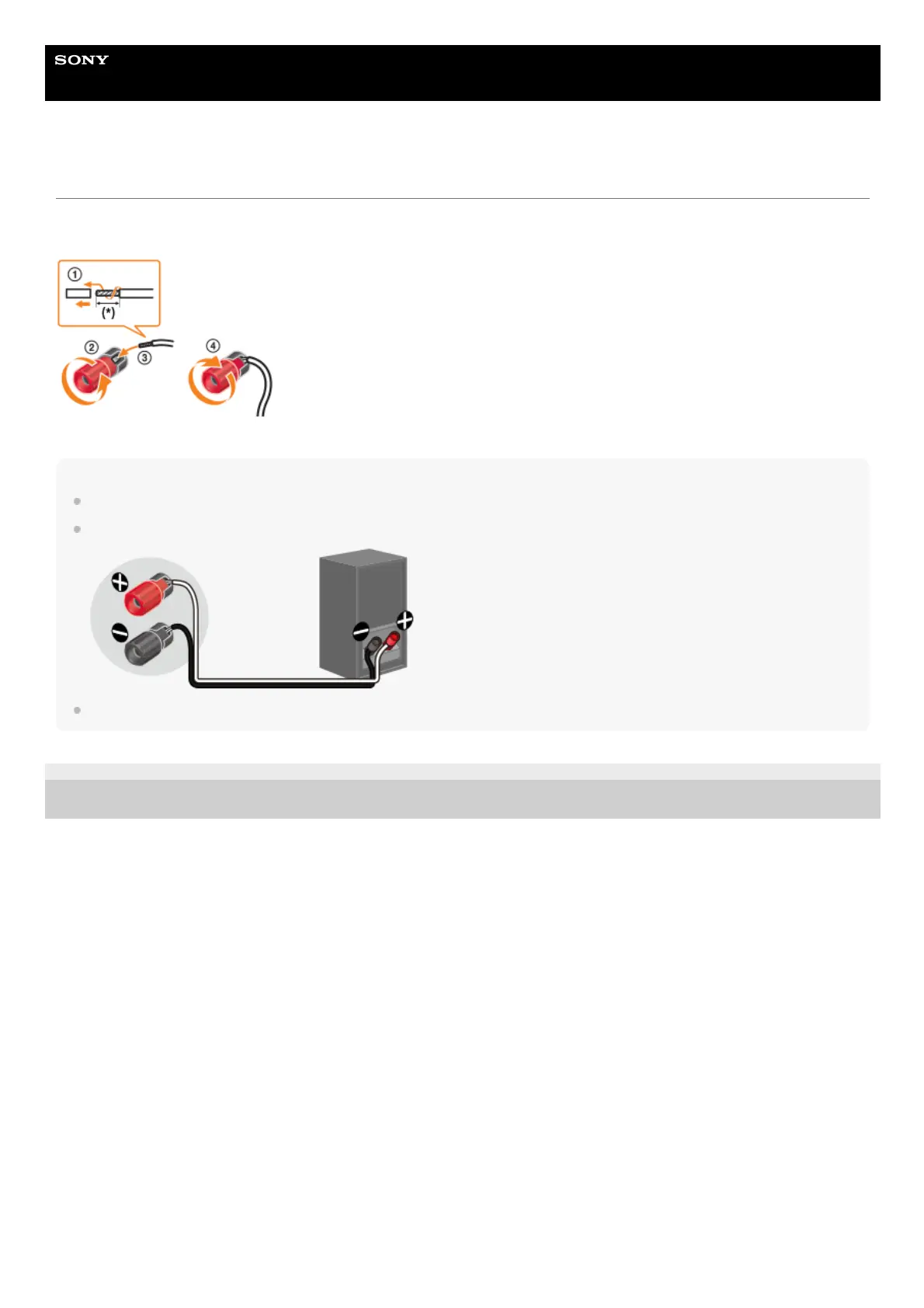

How to connect speaker cables
Be sure to connect the speaker cables correctly to the terminals of the speaker and this unit.
Also, be sure to tightly twist the speaker wire strands and insert them securely into the speaker terminals.
Note
Be sure not remove too much of the speaker cable sleeves, so as to prevent the wires of the speaker cables from touching each other.
Connect speaker cables properly with the polarities (+/–) matched between the unit and the speakers.
Improper connection may result in fatal damage to the unit.
5-037-020-11(1) Copyright 2022 Sony Corporation
Strip the jacket to 10 mm (13/32 in) at each end of the speaker cables.
*
