Help Guide
Multi Channel AV Receiver
STR-AZ1000ES
Connecting 5.1-channel speaker system

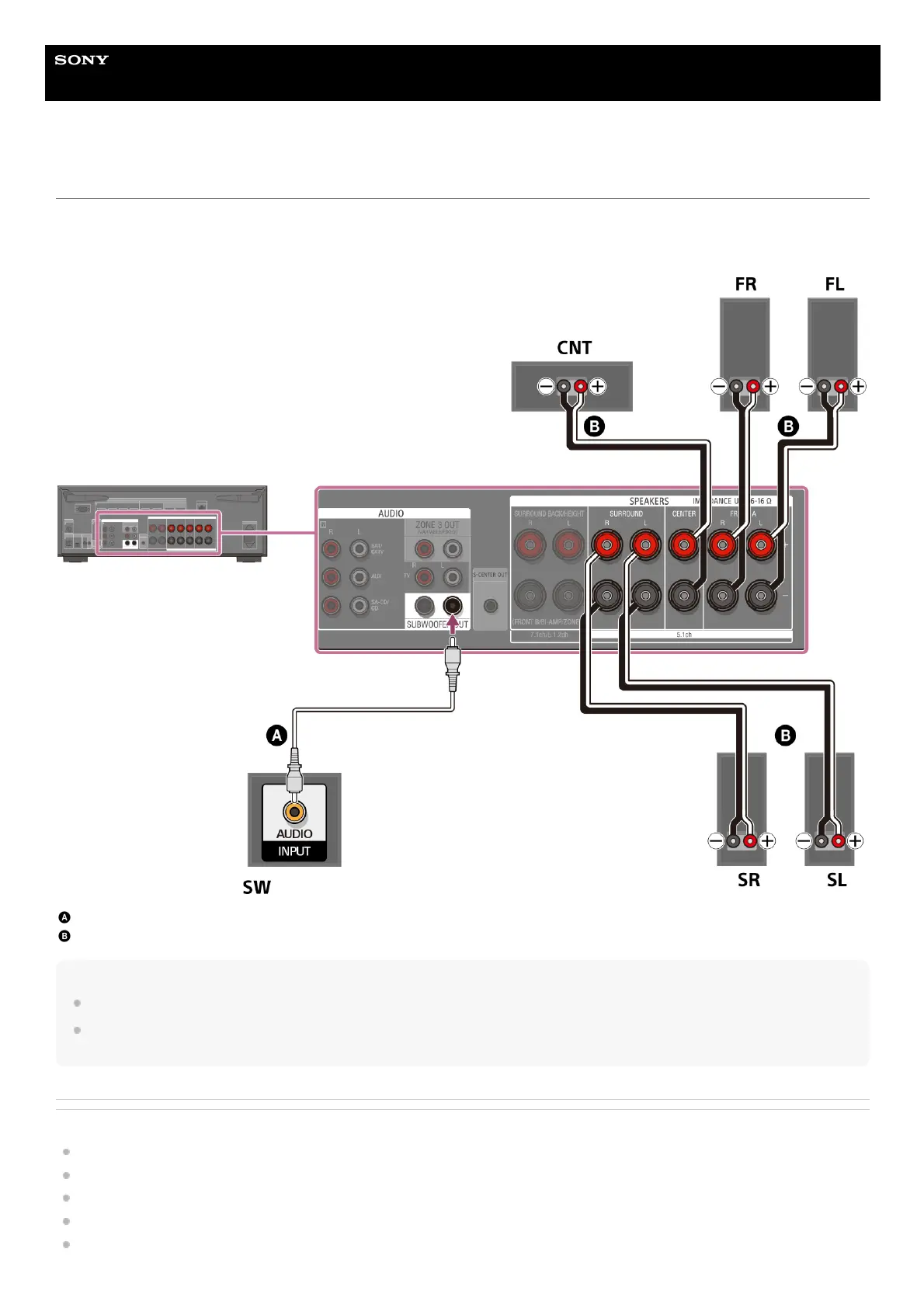

Connect each speaker to the SPEAKERS terminals on the rear of the unit.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
For details on how to connect speaker cables to the unit, see “How to connect speaker cables.”
Monaural audio cable (not supplied)
Speaker cable (not supplied)
Note
Connect speakers with a nominal impedance of 6 ohms to 16 ohms.
After you have installed and connected your speakers, be sure to select the speaker pattern you want using [Speaker Pattern] in [Manual Speaker
Settings] under [Speaker Settings].
Related Topic
Speaker installation example
Installing 5.1-channel speaker system
Selecting the speaker pattern (Speaker Pattern)
Notes on connecting cables
How to connect speaker cables
