Help Guide
Multi Channel AV Receiver
STR-AZ1000ES
Connecting 5.1.2-channel speaker system using top middle speakers

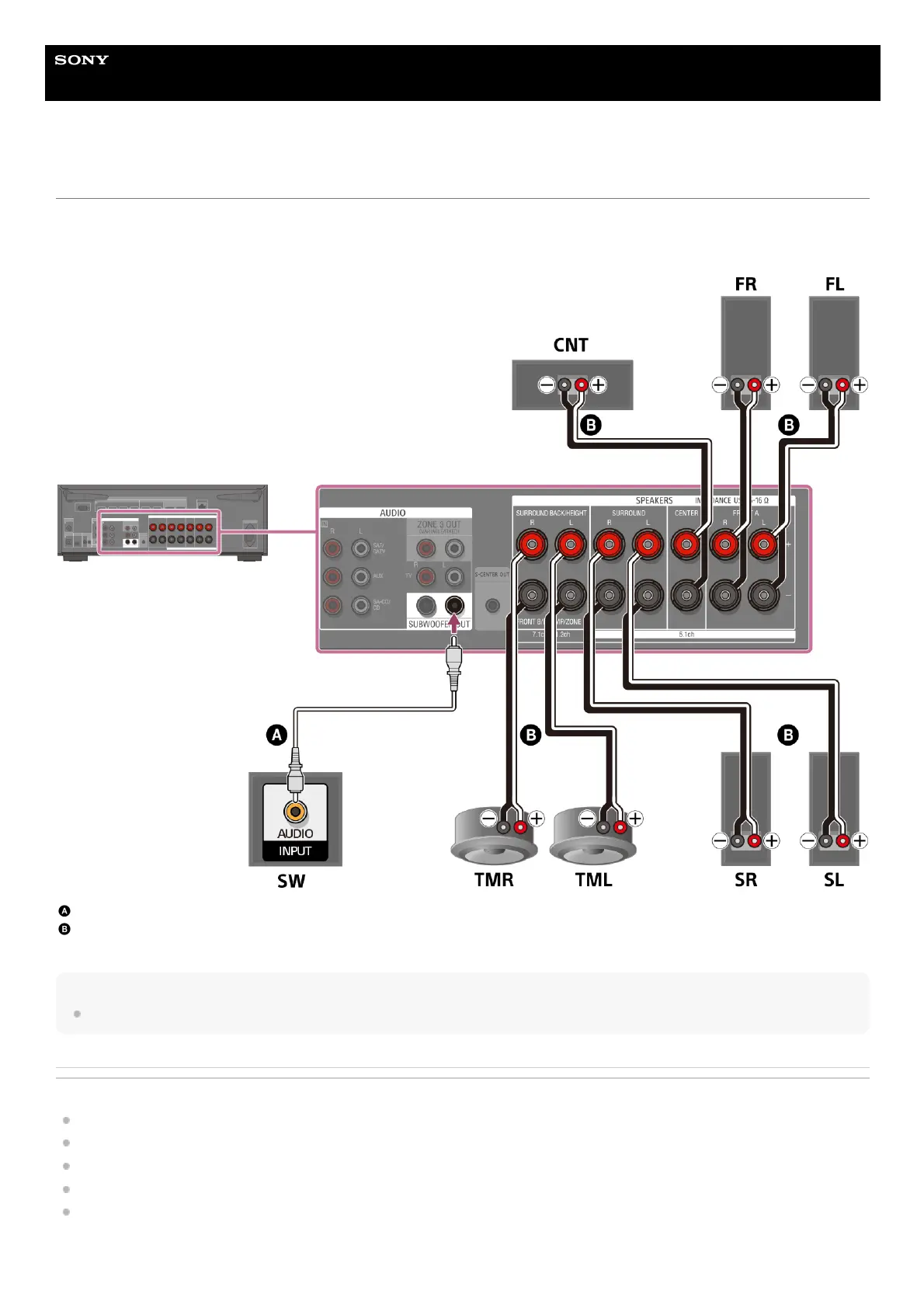

Connect each speaker to the SPEAKERS terminals on the rear of the unit.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
For details on how to connect speaker cables to the unit, see “How to connect speaker cables.”
Monaural audio cable (not supplied)
Speaker cable (not supplied)
After connecting the top middle speakers, set [Speaker Pattern] in [Manual Speaker Settings] under [Speaker Settings] to [5.1.2 (TM)].
Note
Connect speakers with a nominal impedance of 6 ohms to 16 ohms.
Related Topic
Speaker installation example
Installing 5.1.2-channel speaker system using top middle speakers
Selecting the speaker pattern (Speaker Pattern)
Notes on connecting cables
How to connect speaker cables
