Connecting 5.1-channel speaker system with Zone 3 connection

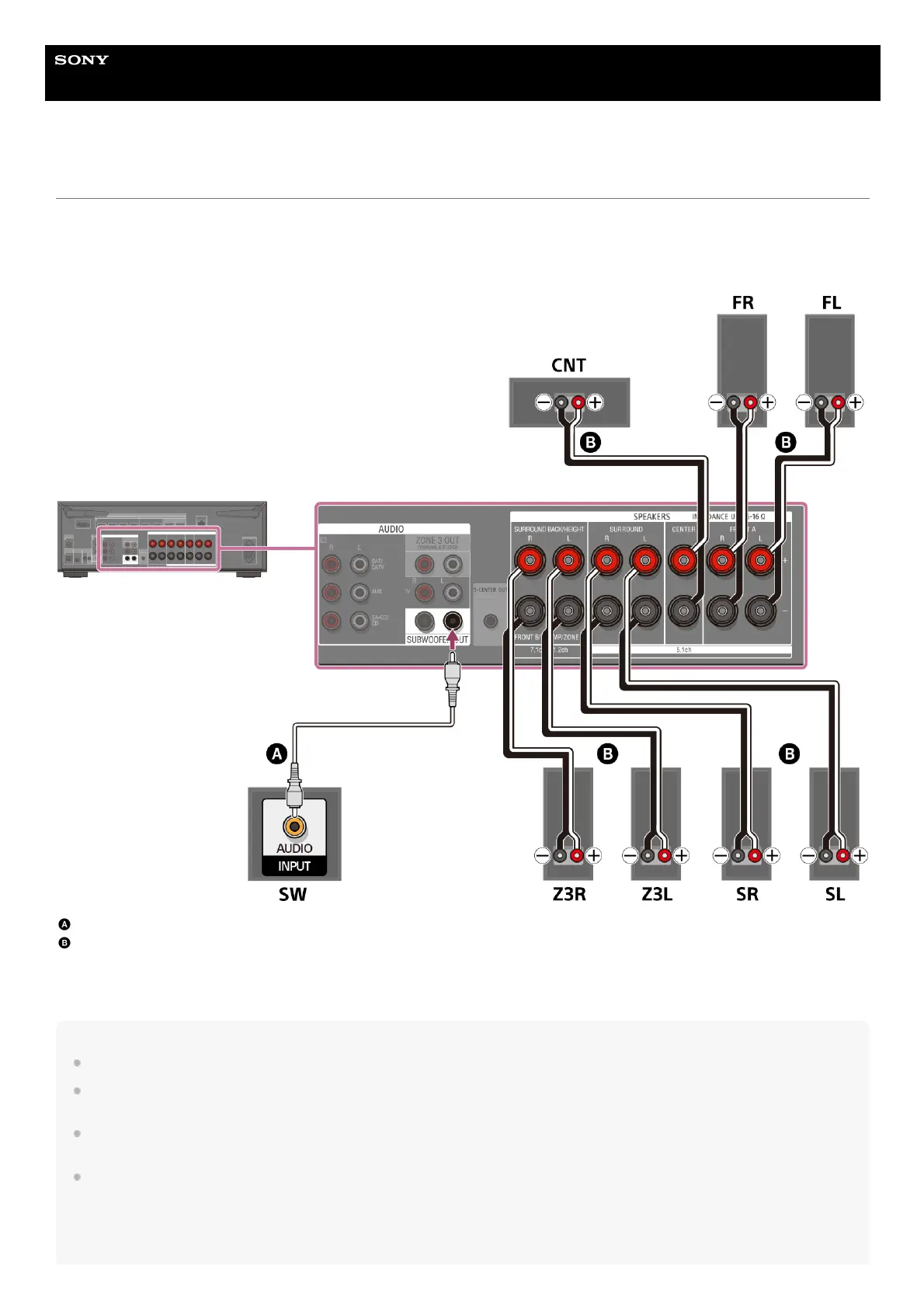

Connect each speaker to the SPEAKERS terminals on the rear of the unit.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
For details on how to connect speaker cables to the unit, see “How to connect speaker cables.”
Monaural audio cable (not supplied)
Speaker cable (not supplied)
After you have made the Zone 3 connection, set [Surround Back Speaker Assign] in [Manual Speaker Settings] under [Speaker Settings]
to [Zone3].
Note
Connect speakers with a nominal impedance of 6 ohms to 16 ohms.
After you have installed and connected your speakers, be sure to select the speaker pattern you want using [Speaker Pattern] in [Manual Speaker
Settings] under [Speaker Settings].
You can only set [Surround Back Speaker Assign] if the speaker pattern is set to a setting that does not have surround back and height/overhead
speakers.
To enjoy [USB], [Home Network], [Bluetooth Audio], [Chromecast built-in], [Spotify], or [AirPlay] in Zone 3, select [SOURCE] for the zone 3 input, then
and switch the main zone input.
