Sony STR-DB900 - Chassis Section

45
STR-DB900

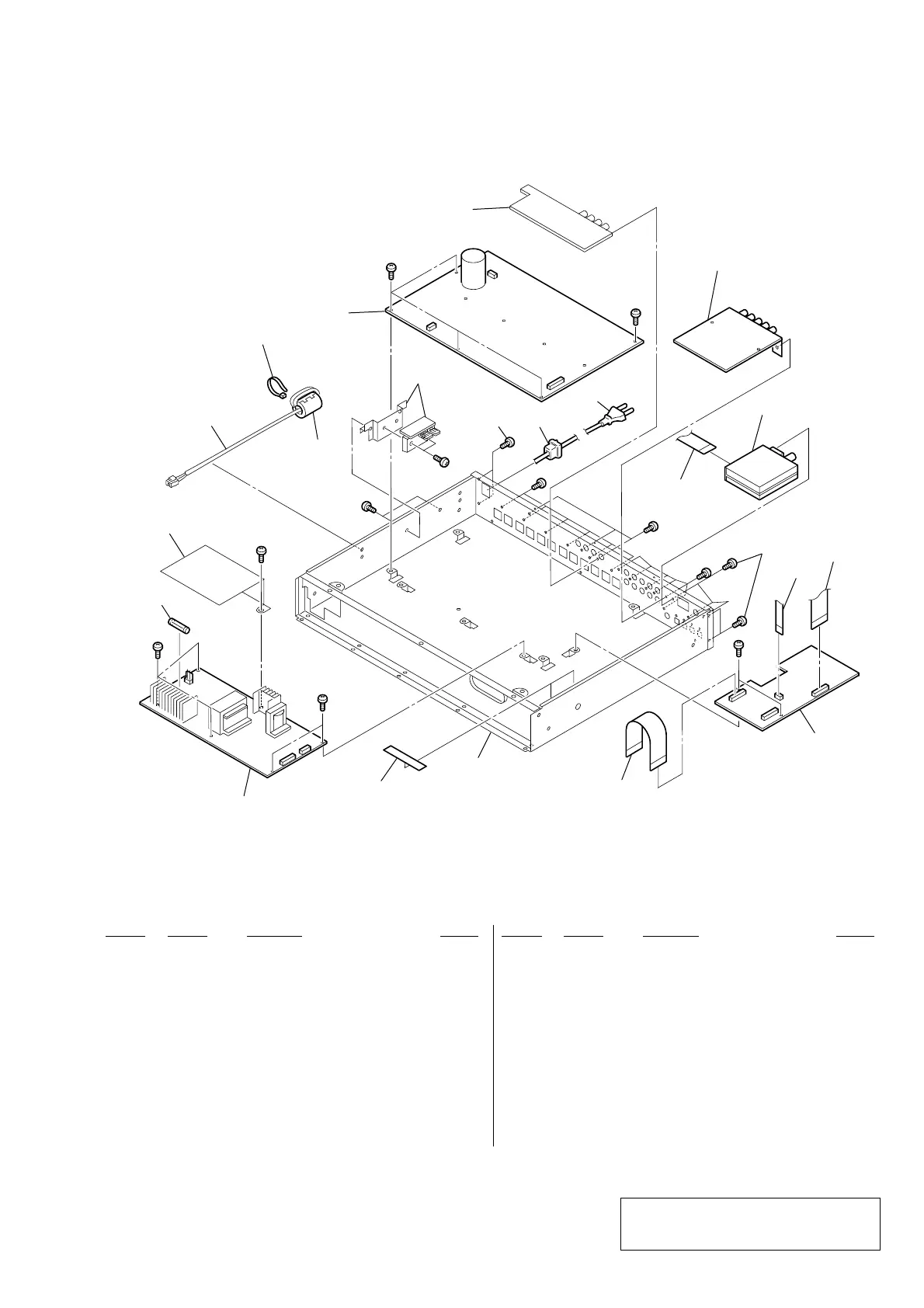

5-3. CHASSIS SECTION
F901
102
107
106
110
108
111
112
114
113
108
103
104
105
101
109
not
supplied
#2
#2
#2
#2
#2
#2
#2
TM101
#2
#3
#2
#2
not
supplied
not
supplied
not
supplied
not
supplied
101 A-4752-842-A POWER BOARD, COMPLETE
102 1-469-969-11 CLAMP, FERRITE (AEP, UK)
103 3-655-653-11 BAND (TAITON), BINDING
104 A-4752-839-A AMP BOARD, COMPLETE
105 A-1070-925-A ANALOG IN BOARD, COMPLETE (SP, MY)
105 A-4752-844-A ANALOG IN BOARD, COMPLETE (AEP, UK)
0 106 1-829-626-11 CORD, POWER
107 4-966-267-04 BUSHING (FBS001), CORD
108 4-974-510-11 SCREW (+BV 3X8 CU)
109 4-860-518-00 CUSHION
110 1-769-939-11 WIRE (FLAT TYPE) (11 CORE) (SP, MY)
110 1-773-003-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
111 1-769-857-11 WIRE (FLAT TYPE) (5 CORE)
112 1-773-182-11 WIRE (FLAT TYPE) (23 CORE)
113 A-1070-920-A DIGITAL BOARD, COMPLETE (SP, MY)
113 A-4752-836-A DIGITAL BOARD, COMPLETE (AEP, UK)
114 1-828-386-11 WIRE (FLAT TYPE) (25 CORE)
0F901 1-576-230-12 FUSE (H.B.C.) (T3.15AL/250V)
TM101 1-693-578-41 TUNER (AEP, UK)
TM101 1-693-641-11 TUNER (SP, MY)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
