43
STR-DB900
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
SP : Singapore model
MY : Malaysia model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-942-568-61 EMBLEM (NO.5), SONY
2 3-704-515-32 SCREW (BV/RING)
3 X-4956-419-2 KNOB (SLCT) ASSY
4 X-4956-418-2 KNOB (VOL) ASSY
5 4-985-642-01 CUSHION
6 4-227-843-31 SCREW (TP), FLAT HEAD
7 4-255-056-01 CASE
8 X-4956-420-1 FOOT ASSY
#1 7-685-881-01 SCREW +BVTT 4X8 (S)

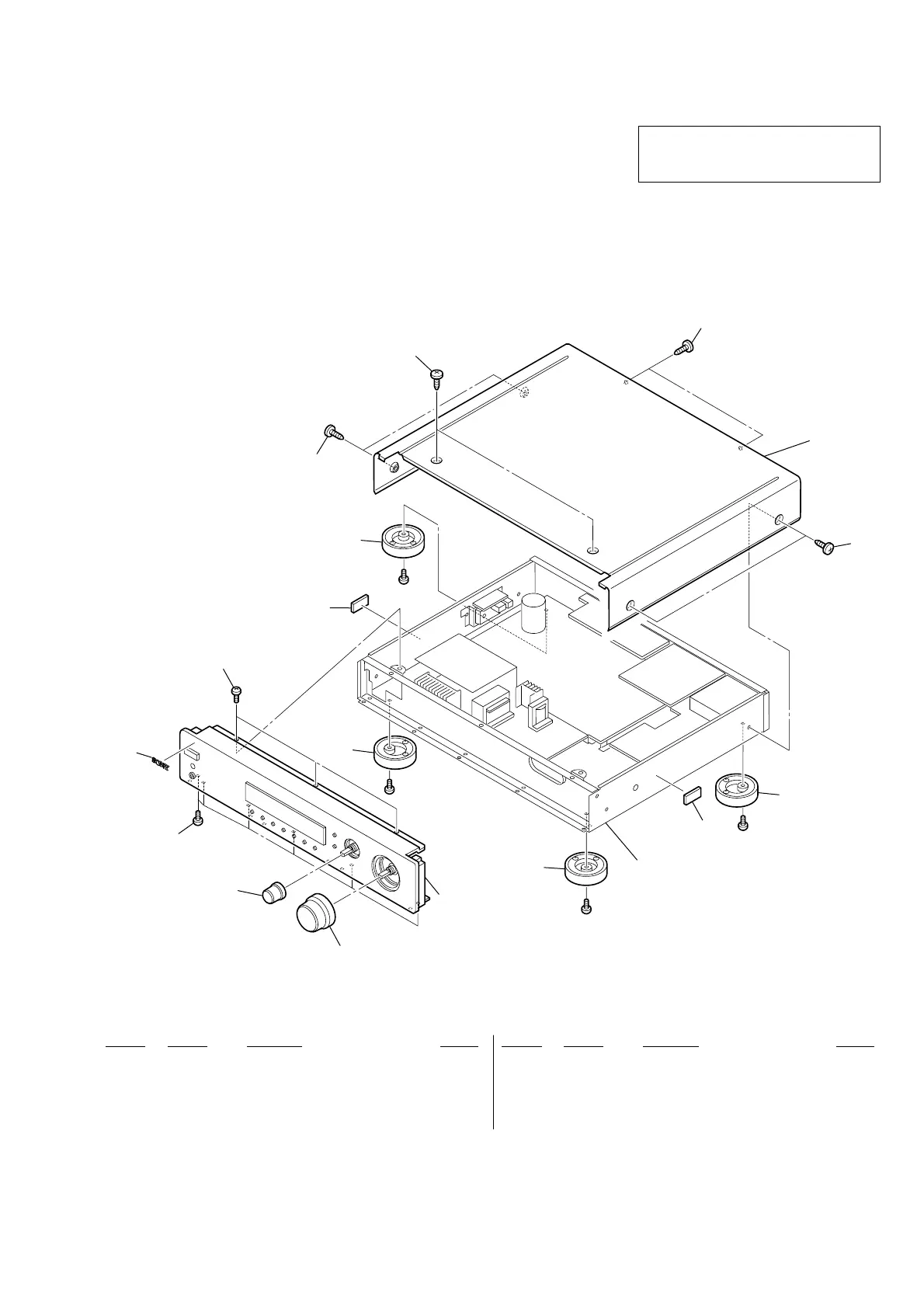

5-1. CASE SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
1
2
2
3
4
5
5
6
6
6
6
8
8
8
8
7
#1
#1
#1
#1
front panel section
chassis section
To Next Page
