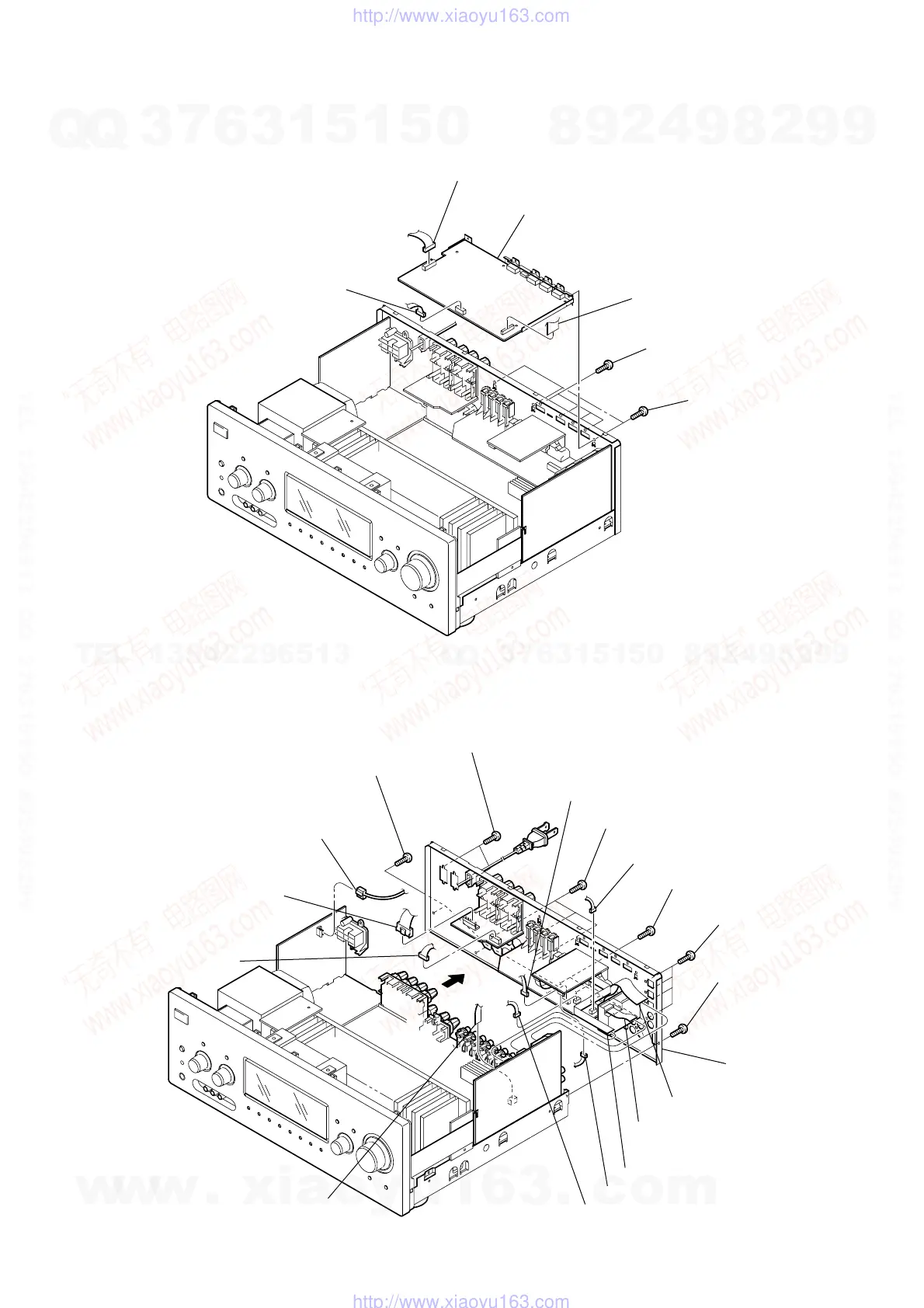

Sony STR-DG910 - 2-2. HDMI RE Board Removal; 2-3. Back Panel Section Removal

11
STR-DG910
2-3. BACK PANEL SECTION
qj screw
(+BVTP 3
× 8)
ql back panel section
qk
qs
three screws
(+BVTP 3
× 8)
qd two screws
(+BVTP 3
× 8)
qf three screws
(+BVTP 3
× 8)
qg five screws
(+BVTP 3
× 8)
qh four screws
(+BVTP 3
× 8)
8 CNS503 (9 core)
0 CNS509 (15 core)
9 CNS508 (9 core) (except AEP,UK)
CNS508 (11 core) (AEP,UK)
1 CNP901 (2P)
2 CNP285 (4P)
4 CNP103 (3P)
6 CN6805 (2P)
qa CNS840 (5 core)
5 CN6806 (4P)
7 CN6807 (2P)
3 CNP286 (5P)
2-2. HDMI RE BOARD
5 four screws
(+BVTT 3
× 6)
4 three screws
(+BVTP 3
× 8
)
1 CN3511 (17 core)
6 HDMI RE board
2 CN3509 (5P)
3 CN3801 (8P)
