STR-DG910
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-1231-364-A MAIN BOARD, COMPLETE (US,CND)
151 A-1231-396-A MAIN BOARD, COMPLETE (AEP,UK)
151 A-1271-028-A MAIN BOARD, COMPLETE (E2)
152 A-1231-370-A DIGITAL BOARD, COMPLETE (US,CND)
152 A-1231-397-A DIGITAL BOARD, COMPLETE (AEP,UK)
152 A-1231-970-A DIGITAL BOARD, COMPLETE (E2)
153 X-4953-448-1 FOOT ASSY
154 3-077-331-21 +BV 3 (3-CR)
155 4-249-675-01 +BV SUMITITE S 4X6 ROUND
156 3-905-609-01 SCREW (TRANSISTOR)
157 A-1231-380-A STANDBY BOARD, COMPLETE (US,CND)
157 A-1236-403-A STANDBY BOARD, COMPLETE (AEP,UK)
157 A-1236-404-A STANDBY BOARD, COMPLETE (E2)
158 1-500-082-11 CLAMP, SLEEVE FERRITE (AEP,UK)
0 F901 1-532-504-33 FUSE (T4AL/250V) (AEP,UK)
0 F901 1-533-312-12 FUSE, GLASS CYLINDRICAL (DIA. 5)
(10A/125V) (US,CND)
0 F902 1-532-464-33 FUSE (T2.5AL/250V) (E2)
0 F902 1-533-420-12 FUSE, GLASS CYLINDRICAL (DIA. 5)
(5A/125V) (US,CND)
0 F4001 1-532-465-33 FUSE (T3.15AL/250V)
0 F4002 1-532-465-33 FUSE (T3.15AL/250V)
Q423 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q424 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q473 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q474 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q523 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q524 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q573 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q574 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q623 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q624 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q673 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q674 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q723 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q724 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 T901 1-443-958-11 TRANSFORMER, POWER (MAIN) (US,CND)
0 T901 1-443-959-11 TRANSFORMER, POWER (MAIN) (E2)
0 T901 1-445-215-11 TRANSFORMER, POWER (MAIN) (AEP,UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

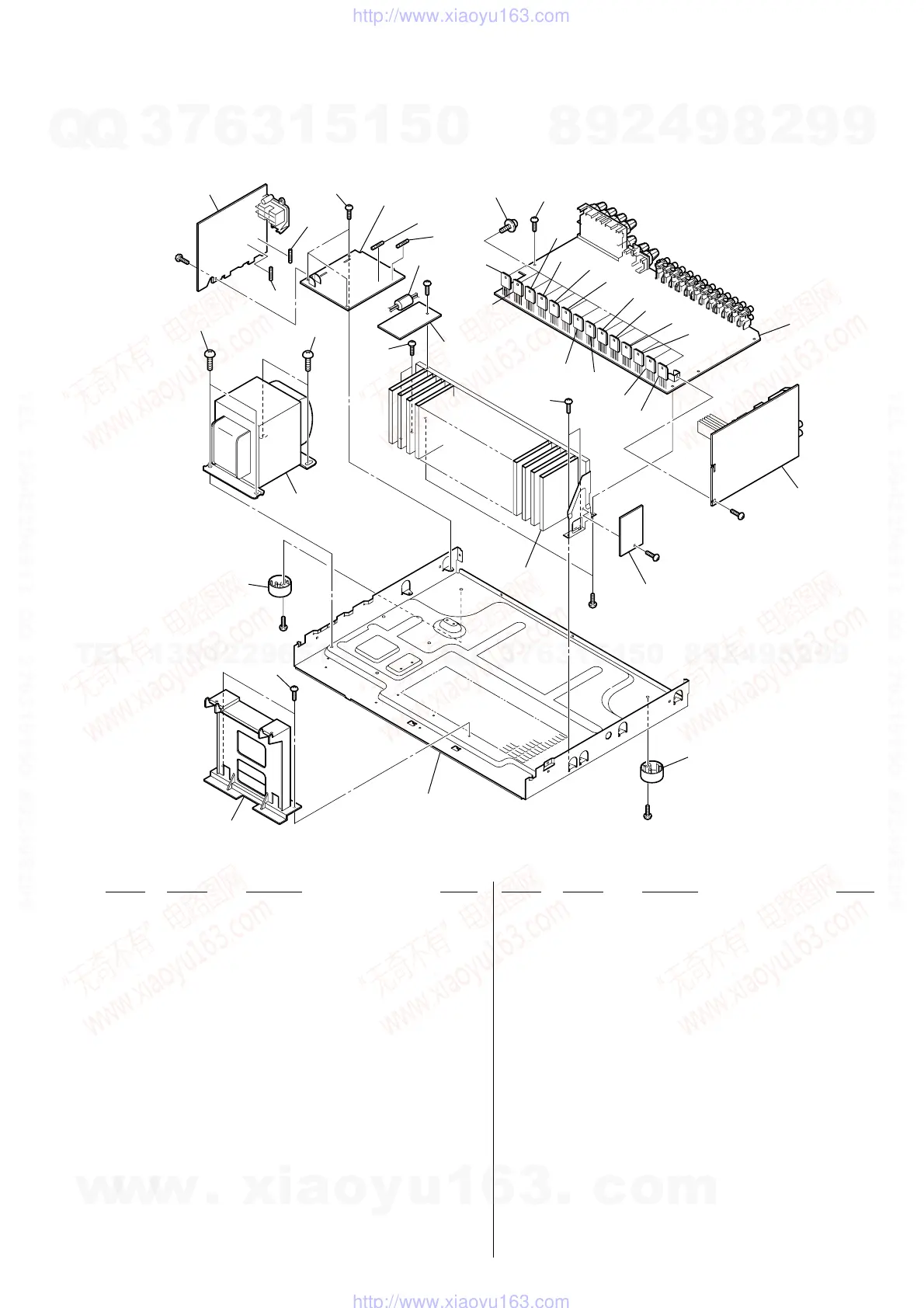

6-4. CHASSIS SECTION
151
152
153
153
155
155
156
157
#1
#1
#1
#1
#1
#1
#1
F901
F902
F4002
F4001
Q573
Q574
Q673
Q424
Q423
Q474
Q473
Q524
Q623
Q674
Q624
Q723
Q523
Q724
T901
not supplied
(DCDC board)
not supplied
(INSULATION GUIDE board)
not supplied
(HEATSINK GUIDE3
board)
not supplied
not supplied
not supplied
154
158
154
154
154
154
