Sony STR-DG910 - 2-4. Front Panel Section Removal; 2-5. Digital Board Removal

12
STR-DG910

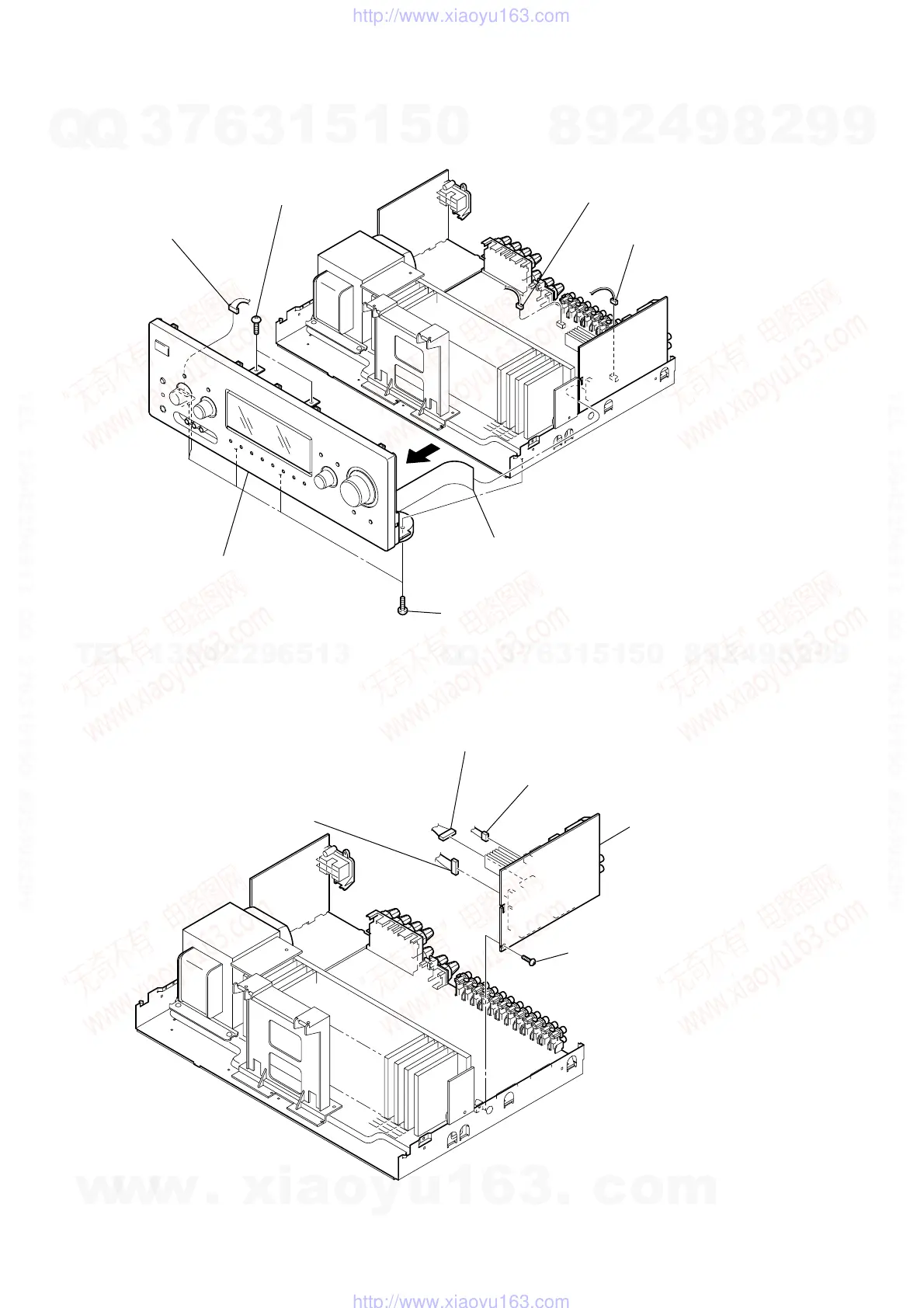

2-5. DIGITAL BOARD
4 screw
(+BVTP 3
× 8)
5 DIGITAL board
1 CNP501 (3P)
2 CNP503 (9P)
3 CNP500 (7P)
2-4. FRONT PANEL SECTION
4 five screws
(+BVTP 3
× 8)
5 two screws
(+BVTP 3
× 8)
6
8
front panel section
1 CNP827 (3P)
2 CNP825 (3P)
7 CNP790 (4P)
3 CNS505 (27 core)
