* You must connect the HDMI TV OUT or
MONITOR OUT jack to your TV to watch the
selected input image (page 21).

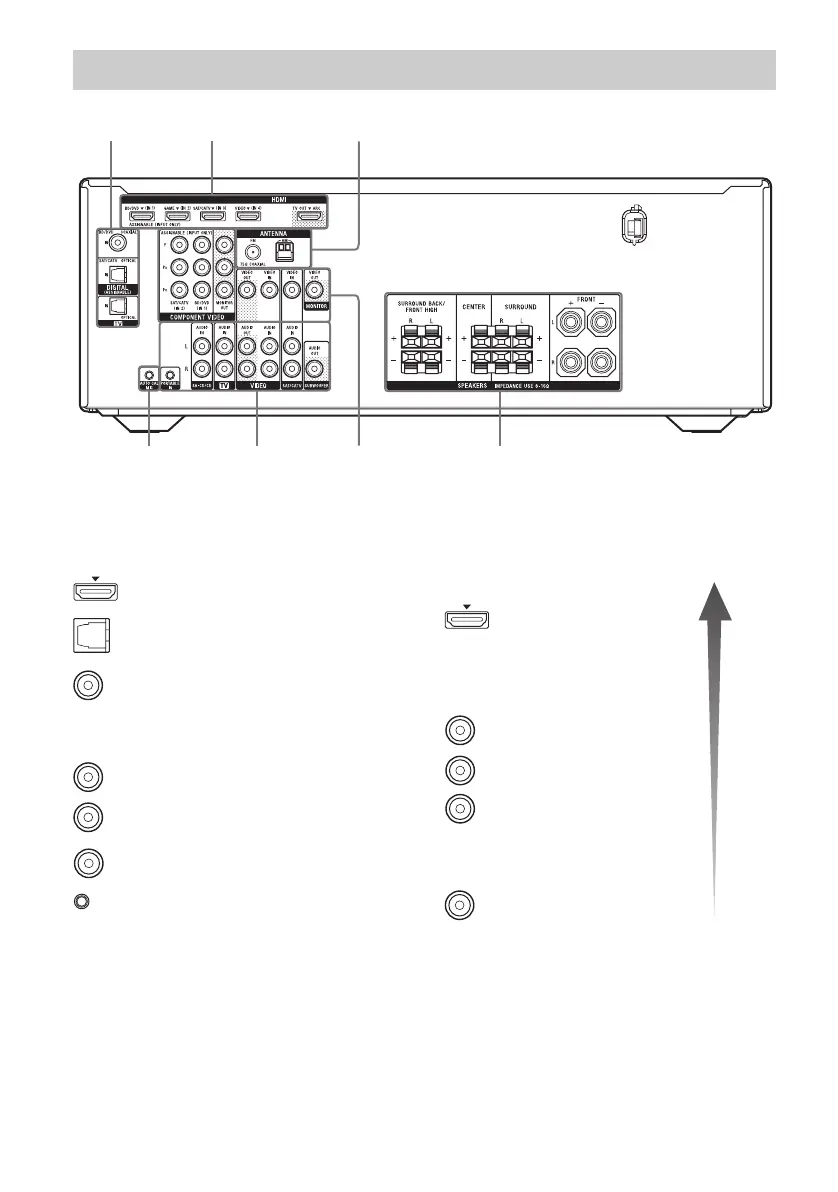

Rear panel
45 1
1 1, 2 3
2
A Audio signal section
DIGITAL INPUT/OUTPUT jacks (page 21, 24,
26)
HDMI IN/OUT
OPTICAL IN
COAXIAL IN
ANALOG INPUT/OUTPUT jacks (page 21, 26,
28)
AUDIO IN/OUT
AUDIO OUT
PORTABLE IN
White (L)
Red (R)
Black
B Video signal section*
The image quality depends on the connecting jack.
DIGITAL INPUT/OUTPUT jacks
(page 21, 24, 25, 26, 27)
HDMI IN/OUT
COMPONENT VIDEO
INPUT/OUTPUT jacks (page 21,
24, 26)
Y, P
B, PR IN/OUT
COMPOSITE VIDEO INPUT/
OUTPUT jacks (page 21, 26, 27)
VIDEO IN/OUT
High
quality
Green
(Y)
Blue
(P
B)
Red
(P
R)
Yellow
