Sony STR-KM77 - Back Panel Section

65
STR-KM22/KM55/KM77

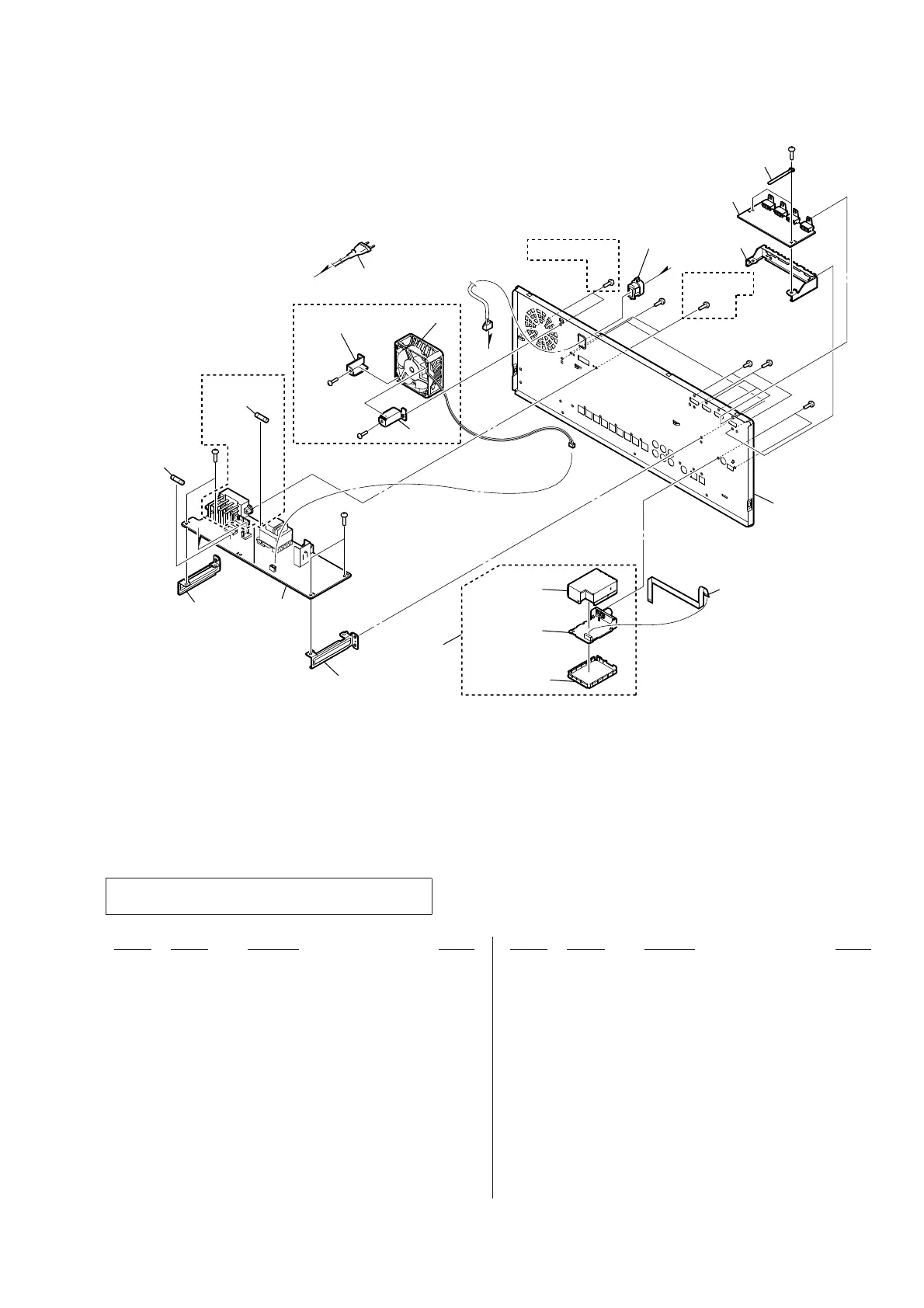

6-3. BACK PANEL SECTION
101 A-1987-672-A STANDBY BOARD, COMPLETE
(KM55: SAF, AR, TH, E12/KM77: SAF, SP, AR, AUS)
101 A-1987-690-A STANDBY BOARD, COMPLETE
(KM55: E51, EA/KM77: E51)
101 A-1992-605-A STANDBY BOARD, COMPLETE
(KM22: SAF, SP, AR, TH)
101 A-1992-606-A STANDBY BOARD, COMPLETE
(KM22: E51, EA)
* 102 3-703-150-11 CLAMP
9
103 A-1989-260-A HDMI RE PC BOARD, COMPLETE (for SERVICE)
104 1-828-311-21 WIRE (FLAT TYPE) (9 CORE)
105 A-1846-561-A TUNER1AMPR ASSY
0
106 4-966-267-12 BUSHING (FBS001), CORD
0
107 1-777-071-83 CORD, POWER (E51, SAF, SP)
0
107 1-835-068-21 CORD, POWER (AUS)
0
107 1-837-312-11 CORD, POWER-SUPPLY (AR)
0
107 1-839-012-11 CORD, POWER-SUPPLY (E12)
0
107 1-839-940-21 POWER-SUPPLY CORD (TH)
0
107 1-839-999-21 POWER-SUPPLY CORD (EA)
0
F901 1-532-504-33 FUSE (T4AL/250V)
0
F902 1-532-506-33 FUSE (T6.3AL/250V) (E51, EA)
0
M2 1-787-955-21 DC FAN (KM55, KM77)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-546-09 SCREW +B 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
D
#1
#1
#1
#1
#1
#1
#1
#2
#1
#1
not supplied
M2
not supplied
104
E
D
106
E
(KM55, KM77)
(KM55, KM77)
107
103
102
(E51, EA)
F901
F902
(E51, EA)
#1
not supplied
not supplied
not supplied
not supplied
not supplied
(TUNER1AMPR
board)
105
101
not supplied
not supplied
Ver. 1.1
