Sony STR-KM77 - SUB RECTIFIER Board, Main Block

STR-KM22/KM55/KM77
9

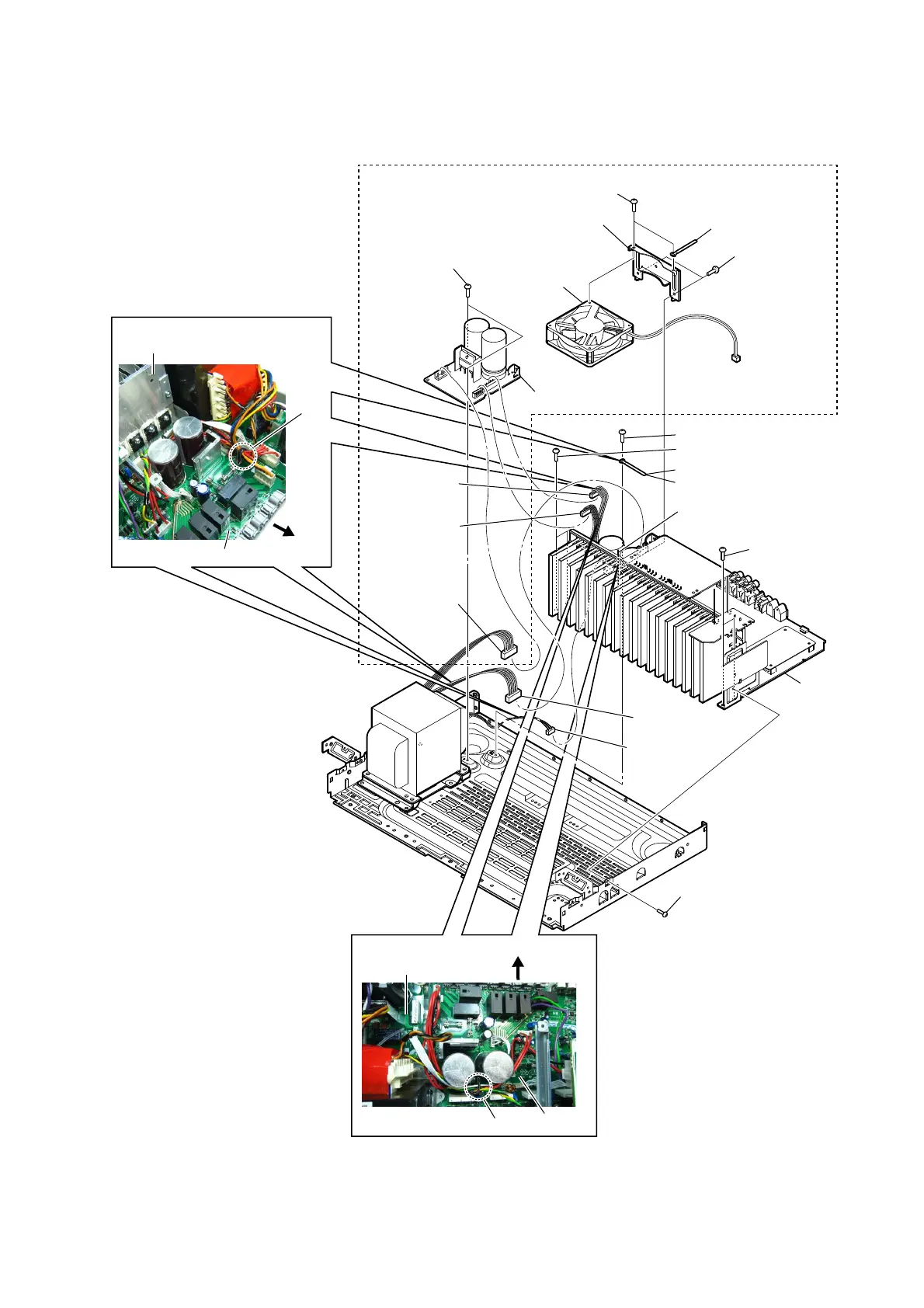

2-5. SUB RECTIFIER BOARD, MAIN BLOCK
:LUHVHWWLQJ
:LUHVHWWLQJ
rear side
rear side
clamp
heatsink
MAIN board
MAIN board
pin, lead
SUB RECTIFIER board
2 two screws
(+BVTP 3 u 8)
qa two screws
(+BVTP 3 u 8)
qs SUB RECTIFIER board
1 two screws
(+BVTP 3 u 8)
4 bracket, fan
3 clamp
5 fan, DC
7 CN931 (6P)
qd CN950 (5P)
qf CN951 (5P)
qj two screws
(+BVTP 3 u 8)
ql one screw (+BVTP 3 u 8)
q; CNP931 (5P)
8 CN932 (6P)
9 wire is removed from pin, lead.
6 wire is removed from clamp.
qh clamp
qg one screw (+BVTP 3 u 8)
qk two screws (+BVTP 3 u 8)
w; main block
