Sony STR-KM77 - Front Panel Section

STR-KM22/KM55/KM77
7

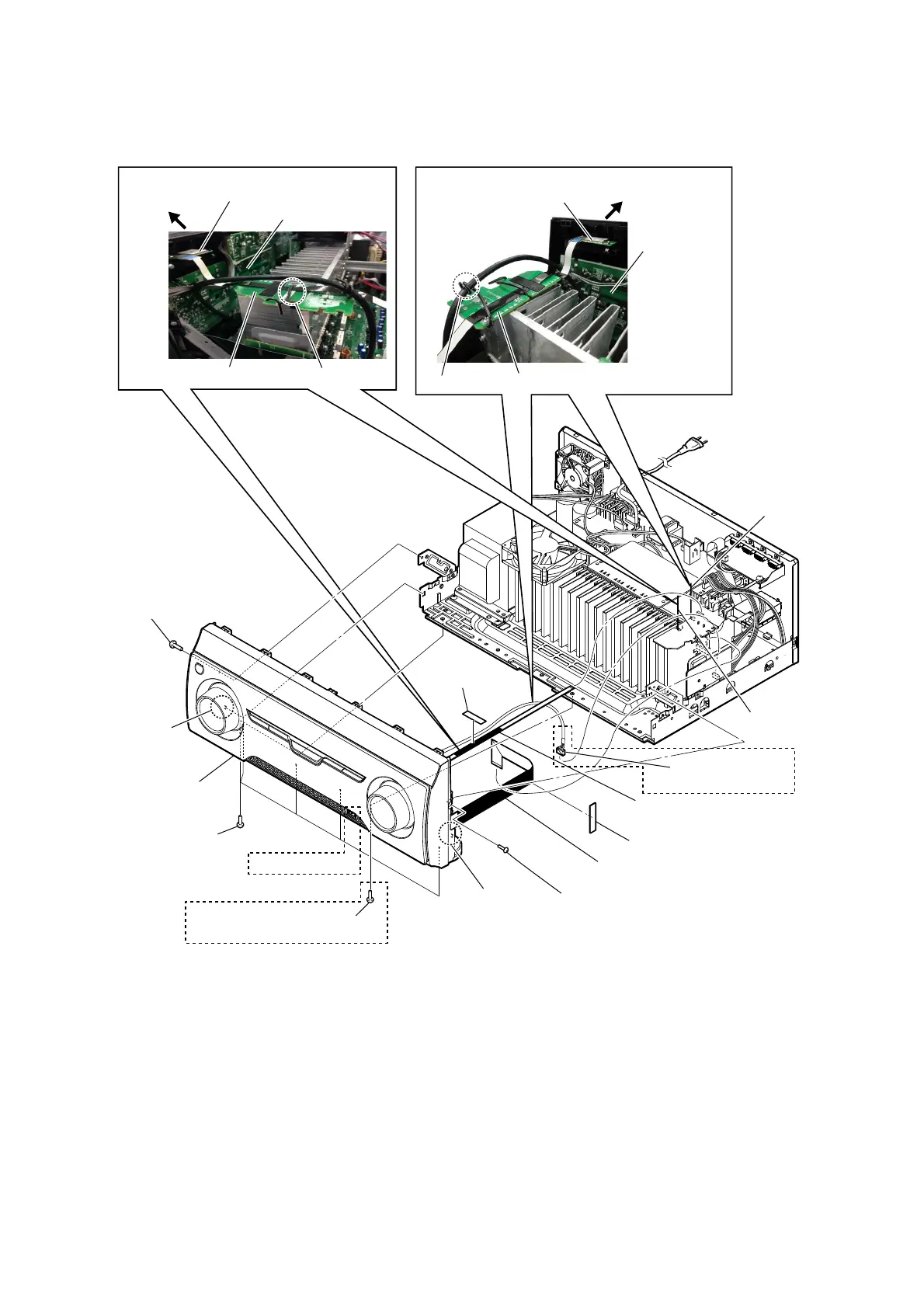

2-3. FRONT PANEL SECTION
• Abbreviation
AR : Argentina model
SAF : South African model
:LUHVHWWLQJ
front side
front side
pin, lead
pin, lead
TOP INSULATION PC board
TOP INSULATION PC board
LED BAR board
LED BAR board
BLUETOOTH MODULE
BLUETOOTH MODULE
:LUHVHWWLQJ
1 wire is removed
from the pin, lead.
4 wire is removed
from the pin, lead.
(except SAF, AR)
3 wire (flat type)
(14 core) (CN2900)
6 cushion, saranet
7 wire (flat type)
(27 core) (CN2503)
5 CN2700 (5P)
2 saranet cushion
8 one screw
(+BVTP 3 u 8)
9 one screw
(+BVTP 3 u 8)
0 five screws
(+BVTP 3 u 8)
qd front panel section
qs claw
qs claw
qa one screw (+BVTP 3 u 8)
H[FHSW6$)$5
H[FHSW6$)$5
H[FHSW6$)$5
