STR-KS2000
4
SECTION 2
GENERAL
Thia section is extracted from
instruction manual.

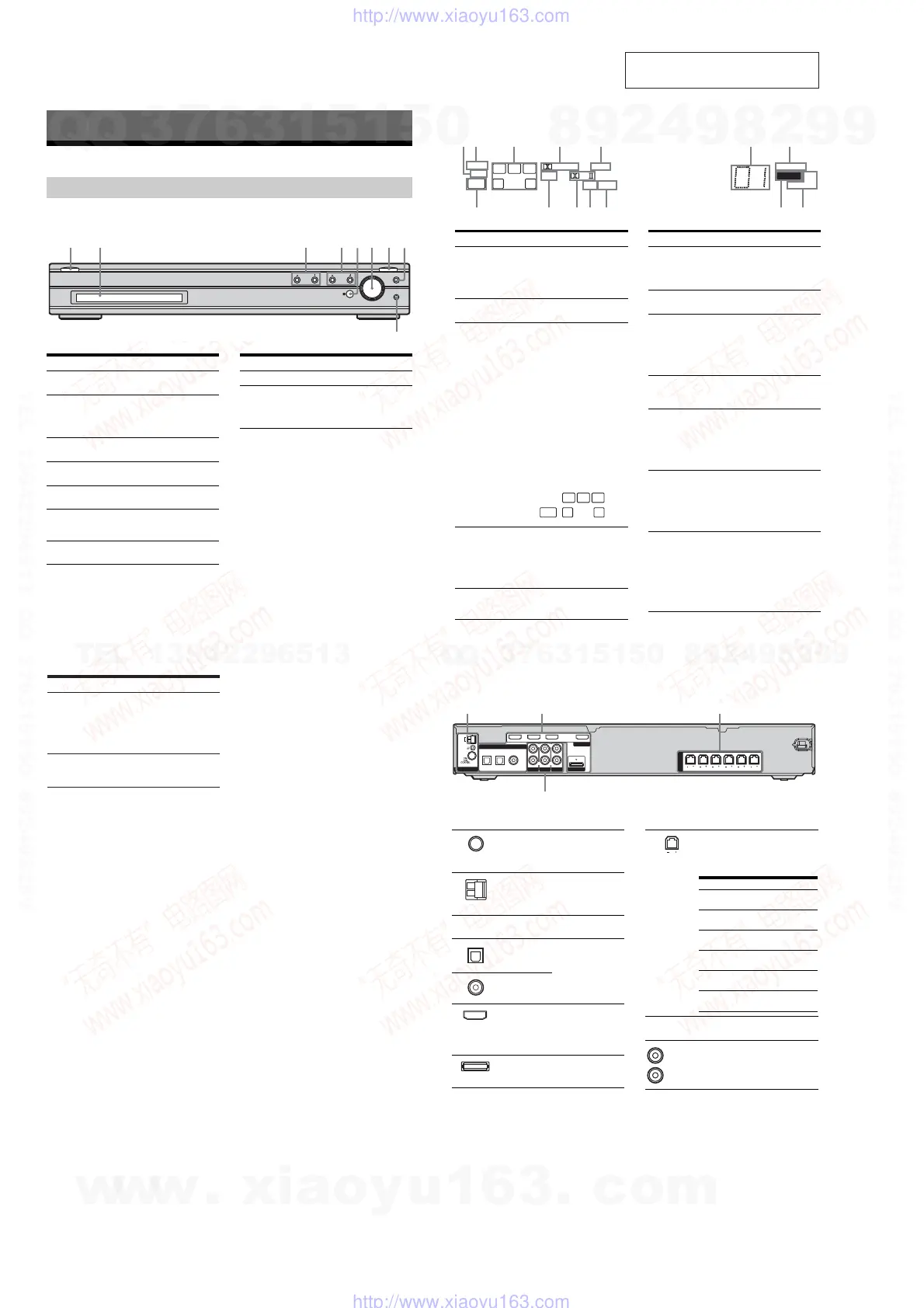

Description and location of parts
Front panel
Getting Started
Receiver
AUTO CAL MIC
MUTING
SOUND FIELDPRESET TUNING
MASTER VOLUME
Name Function
" /
(on/standby)
Press to turn the receiver
on or off.
# Display The current status of the
selected component or a
list of selectable items
appears here.
$ PRESET TUNING
+/–
Press to select a preset
station.
% SOUND FIELD
+/–
Press to select a sound
field.
& Remote sensor Receives signals from
remote commander.
' MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time.
( INPUT
SELECTOR
Press to select the input
source to playback.
Name Function
) MUTING Press to mute the soud.
* AUTO CAL MIC
jack
Connects to the supplied
optimizer microphone for
the Auto Calibration
function.
About the indicators on the display
L
CR
SL SRSW
D.RANGE
RDS
ST MONO
MEMORY
S
DIGITAL
DTS
HDMI
PL
OPT
COAX
B
T
E
G
SLEEP
LFE
Name Function
" LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect) channel
and the LFE channel signal is
actually being reproduced.
# SLEEP Lights up when the sleep timer is
activated.
$ Playback
channel
indicators
L
R
C
SL
SR
S
The letters (L, C, R, etc.) indicate
the channels being played back.
The boxes around the letters vary
to show how the receiver
downmixes the source sound.
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Sound Field: A.F.D. AUTO
%
DIGITAL Lights up when receiver is
decoding Dolby Digital signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections.
& HDMI Lights up when a playback
component is connected to this
receiver using a HDMI jack.
L
CR
SL SR
SW
Name Function
' Preset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations.
( D.RANGE Lights up when dynamic range
compression is activated.
) Tu ne r
indicators
Lights up when using the
receiver to tune in radio statins,
etc.
Note
“RDS” lights up for models of
area code CEL, CEK only.
* MEMORY Lights up when a memory
function, such as Preset Memory
etc., is activated.
+ COAX Lights up when IN MODE is set
to “AUTO IN” and the source
signal is a digital signal being
input through the COAX IN
jack, or when IN MODE is set to
“COAX IN”.
, OPT Lights up when IN MODE is set
to “AUTO IN” and the source
signal is a digital signal being
input through the OPT IN jack,
or when IN MODE is set to
“OPT IN”.
- PL(II) “PL” lights up when the
receiver applies Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
“PLII” lights up when the
Pro Logic II Movie/Music
decoder is activated.
Name Function
. DTS Lights up when the receiver is
decoding DTS signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections.
/ SW Lights up when the audio signal
is output from the
SUBWOOFER jack.
Rear panel
OPT IN
SAT
OPT IN
VIDEO 1
COAX IN AUDIO IN
DVD
DVD INSAT IN VIDEO 2/BD IN OUT
ANTENNA
SA-CD/CD
AUDIO IN
TV
AUDIO IN
FRONT R
VIDEO 1 DMPORT
DIGITAL
SPEAKERS
HDMI
AM
R
L
R
L
FRONT L SUR R SUR L CENTER SUBWOOFER
" ANTENNA section
FM
ANTENNA
jack
Connects to the FM
wire antenna
supplied with this
receiver.
AM
ANTENNA
terminals
Connects to the AM
loop antenna
supplied with this
receiver.
# DIGITAL INPUT/OUTPUT section
OPT IN jack Connects to a DVD
player, etc. The
COAX IN jack
provides a better
quality of loud sound.
COAX IN jack
HDMI IN/
OUT jack
Connects to a DVD
player or a satellite
tuner. An image and
the sound are output
to a TV or a projectr.
DMPORT
jack
Connect to a
DIGITAL MEDIA
PORT adapter.
$ SPEAKERS section
Connects to speakers.
The following table shows the
respective color for the speaker
jacks.
% AUDIO INPUT section
AUDIO IN
jack
Connects to a Super
Audio CD player,
CD player, etc.
Speaker jack Color
FRONT R
(Front right speaker)
Red
FRONT L
(Front left speaker)
White
SUR R
(Surround right speaker)
Grey
SUR L
(Surround left speaker)
Blue
CENTER
(Center speaker)
Green
SUBWOOFER
(Sub woofer)
Purple
White (L)
Red (R)
