Sony STR-KS2000 - HDMI RE Board; Front Panel Block

STR-KS2000
7

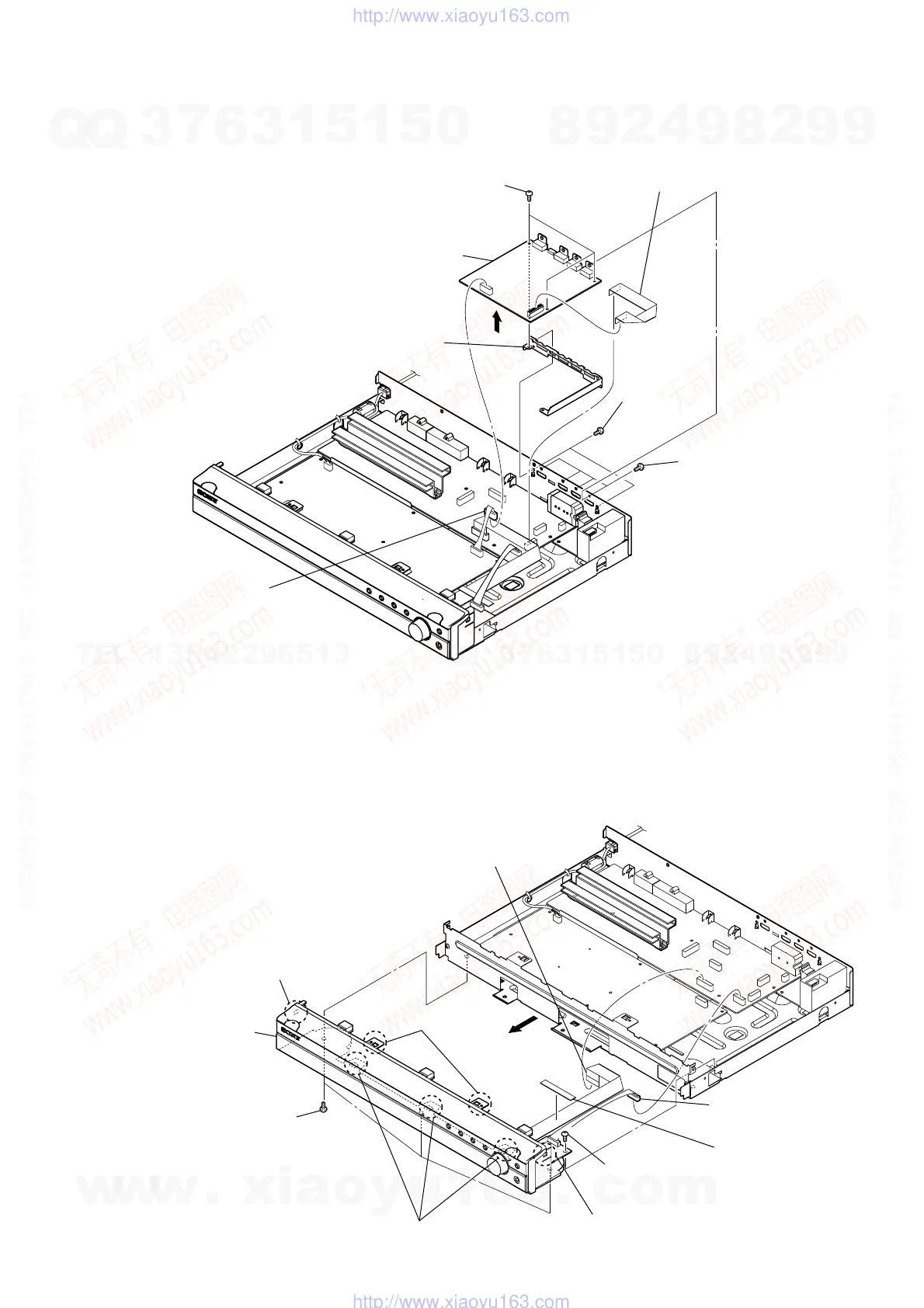

3-3. HDMI RE BOARD
 two screws
(BVTP3 × 8)
 three screws
(BVTP3 × 8)
 HDMI left bracket
 HDMI RE board
 connector
(CN3509)

 four screws
(BVTT3 × 6)
 wire (flat type) (17 core)
(HDMI RE BOARD (CN3511),
MAIN BOARD (CNS506))
3-4. FRONT PANEL BLOCK
 screw
(BVTP3 × 8)
 wire (flat type) (17 core)
(CNS510)
 connector
(CNS510)
 saranet cushion
 three screws
(BVTP3 × 8)
 two claws
 claw
 three claws
 front panel block
 claw
