STR-KS2000
51 3-209-644-01 VOLUME KNOB
52 X-2178-165-2 FRONT PANEL ASSY (US, CND)
52 X-2178-167-2 FRONT PANEL ASSY (AEP, UK)
53 4-977-358-01 CUSHION
54 3-087-053-01 +BVTP2.6 (3CR)
55 1-828-997-11 WIRE (FLAT TYPE) (17 CORE)
RV700 1-418-725-51 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

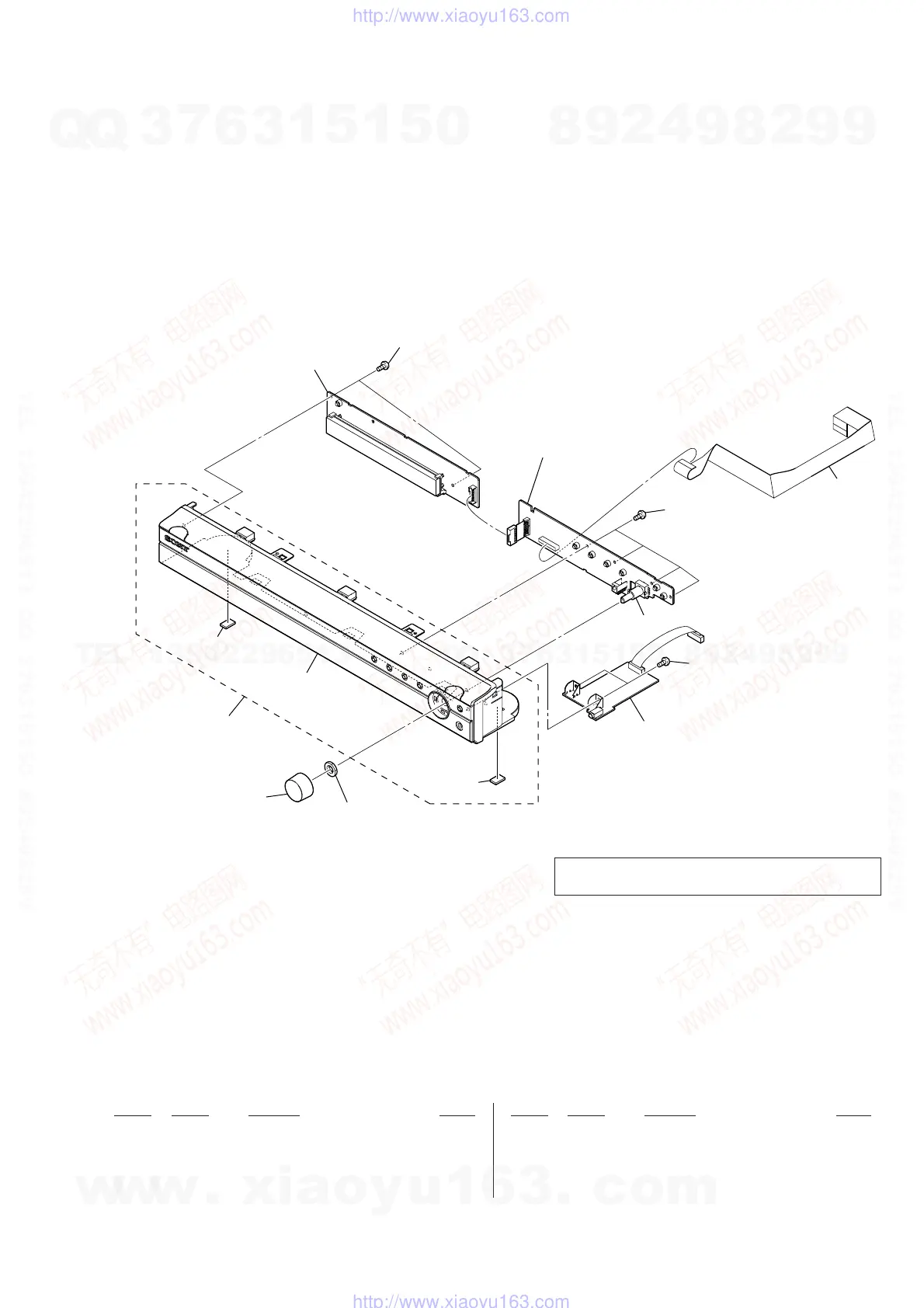

7-2. FRONT PANEL SECTION
51
supplied with RV700
RV700
not supplied
not supplied
(DCAC (2000) board)
not supplied
(IR board)
not supplied
(DISPLAY board)
52
53
53
54
54
54
55
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
