Sony STR-KS2000 - Section 3 Disassembly Procedures; Disassembly Flowchart; Component Disassembly Details

STR-KS2000
6
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.

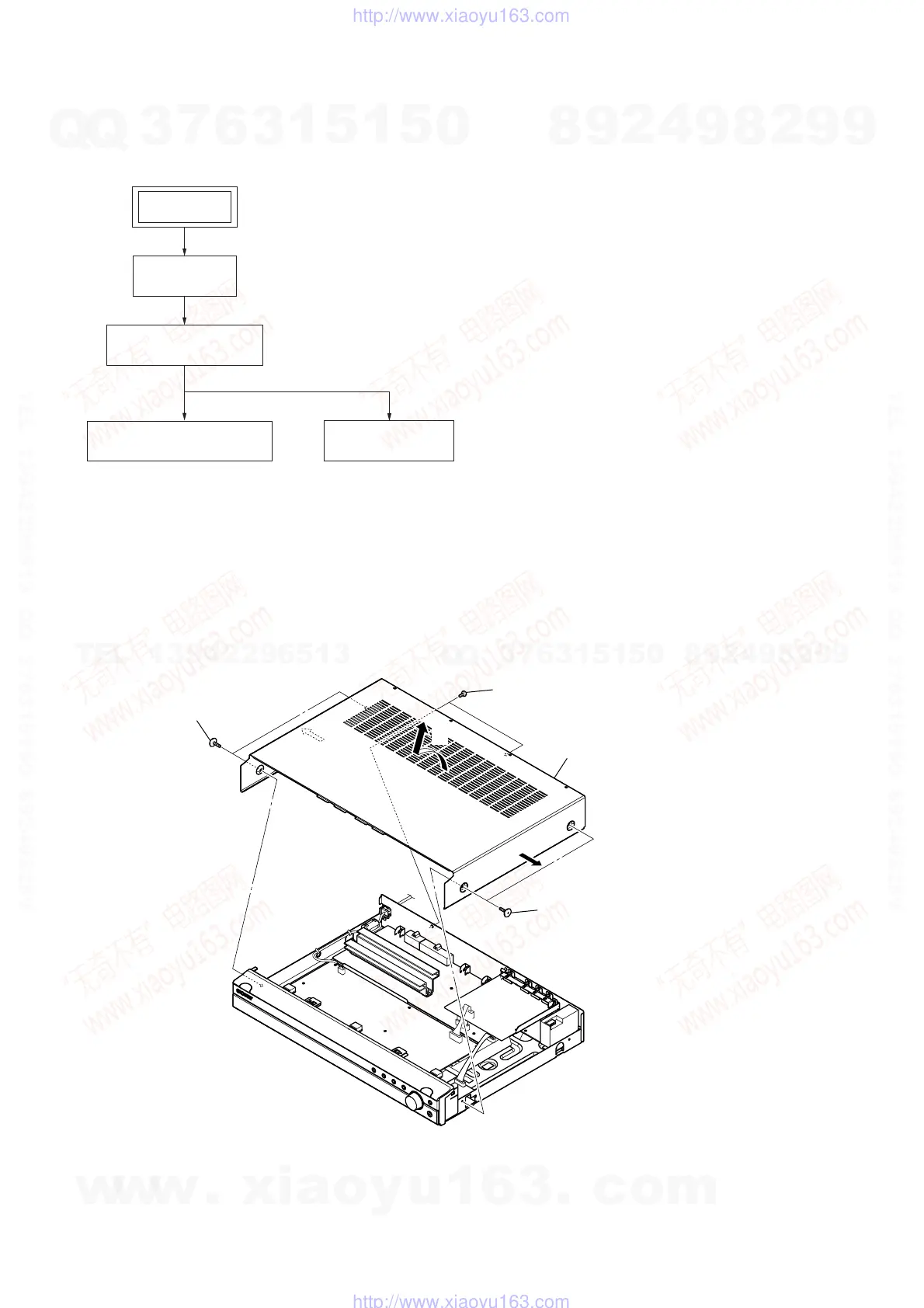

3-1. DISASSEMBLY FLOW
3-2. CASE
(Page 6)
3-3. HDMI RE BOARD
(Page 7)
3-5. MAIN BOARD
(Page 8)
3-4. FRONT PANEL BLOCK
(Page 7)
SET
Note: Follow the disassembly procedure in the numerical order shown below.
3-2. CASE
 two screws
(BVTP3 × 8)
 two tapping screws
 Remove the case
in the direction of arrow ".
 two tapping screws


"
