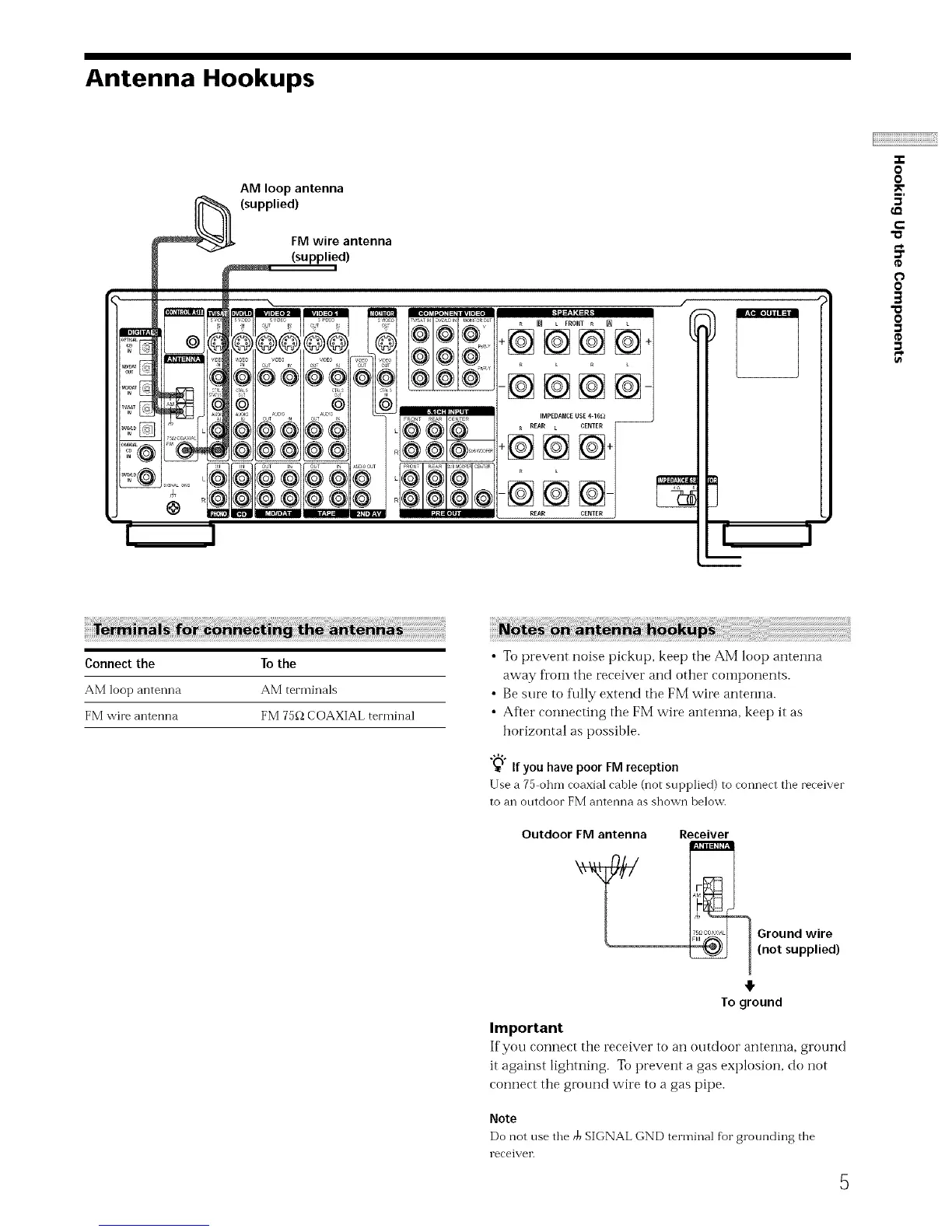

Antenna Hookups
AM loop antenna
(supplied)
FM wire antenna
(supplied)
--@@@@-
IMPEDANCEUSE 4-16_ --
_ _EN_TERIIrREAR L CENTER
-@@
REAR
0
0
5'
(D
e-
"0
0
3
O
(D
Connect the
AM loop antenna
FM wire antenna
To the
AM terminals
FM 75f_ COAXIAL terminal
• To prevent noise pickup, keet) the AM loop antenna
away from the receiver and other components.
• Be sure to tkflly extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.
"_W"If you have poor FM reception
F.
Use a 70 ohn-i coaxial cable (not supplied) to connect the receiver
to an outdoor FM antenna as shown below.
Outdoor FM antenna
Y
Important
Receiver
7_°°_'×'_ Ground wire
(not supplied)
To ground
If you connect the receiver to an outdoor antenna, ground
it against lighming. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
Note
Do not use the _ SIGNAL OND terminal for grounding the
receiver.
