TA-FB930R

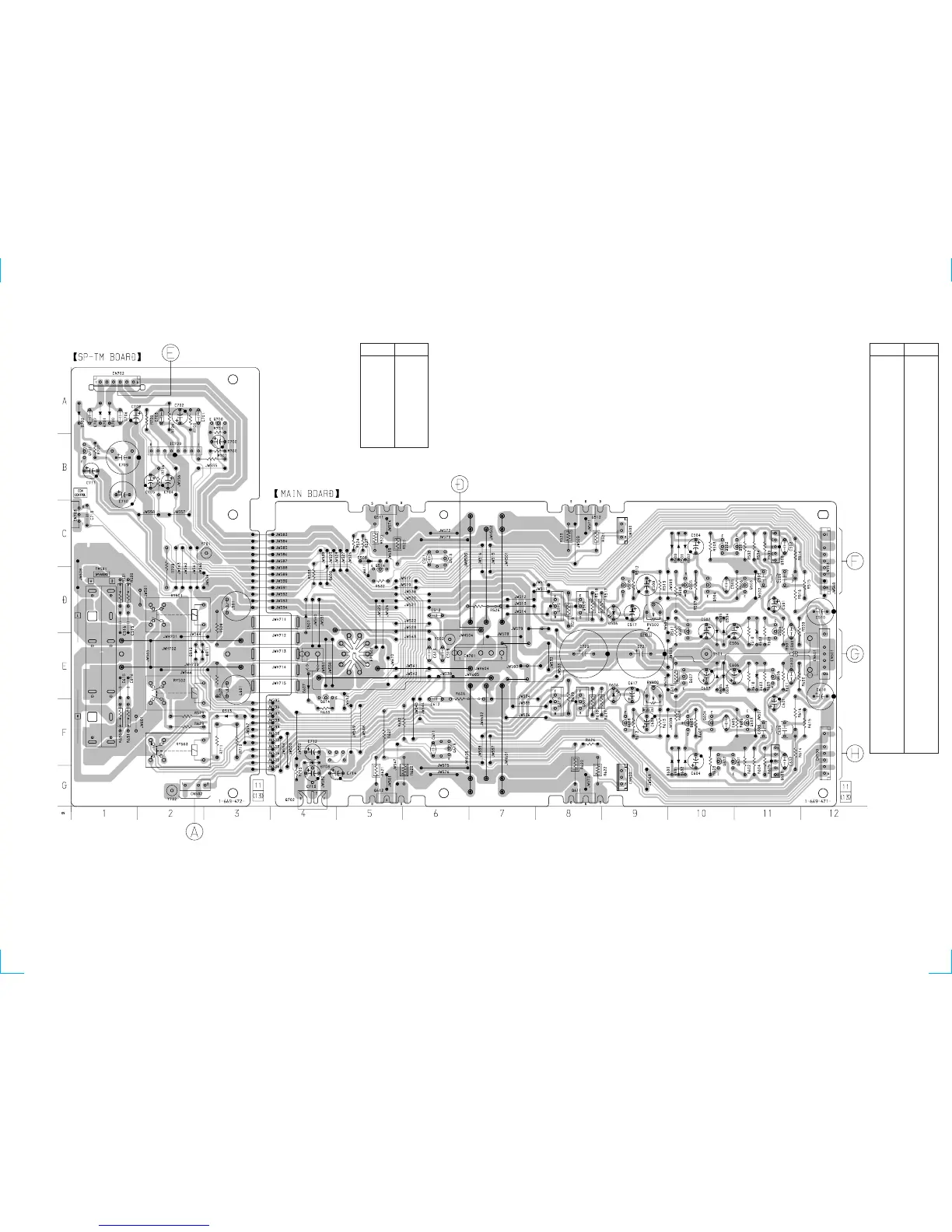

3-5. PRINTED WIRING BOARD – MAIN SECTION –
• See page 5 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D500 C-10
D501 C-10
D502 C-10
D503 D-11
D504 E-10
D505 E-10
D506 D-9
D507 D-4
D508 C-5
D600 F-10
D601 F-10
D602 F-10
D603 E-11
D604 E-10
D605 E-10
D606 F-9
D607 E-4
D608 C-4
D703 F-4
Q500 C-11
Q501 C-10
Q502 C-10
Q503 D-11
Q504 D-10
Q505 D-10
Q506 D-11
Q507 E-10
Q508 D-9
Q509 D-8
Q510 D-8
Q511 C-5
Q512 C-8
Q513 C-6
Q514 D-5
Q600 F-11
Q601 F-10
Q602 F-10
Q603 F-11
Q604 F-10
Q605 F-10
Q606 E-11
Q607 E-10
Q608 F-9
Q609 F-8
Q610 F-8
Q611 G-8
Q612 G-5
Q613 F-6
Q614 E-4
Q702 G-4
(Page 13)
(Page 13)
(Page
11)
(Page
11)
(Page
11)
(Page 9)
Ref. No. Location
• Semiconductor
Location
D511 E-2
D512 E-2
D513 F-3
D700 A-1
D701 A-1
D702 A-1
IC700 B-2
Q700 A-3
Q701 B-1
