Adjustment Using the Menus
28
WFM/ALM/
VECTOR
Sets the display settings for WFM/ALM/
vectorcope.
• WFM: Displays the wave form
monitor.
• ALM: Displays the audio level meter.
• VECTOR: Displays the vectorscope.
When WFM is selected, the waveform
and audio level are displayed. When
ALM is selected, the audio level is
displayed in eight channels.
When VECTOR is selected, the color
component of the image signal and the
audio levels are displayed.
When SDI signal is input, the audio
levels for channels selected in SDI
AUDIO SETTING are displayed.

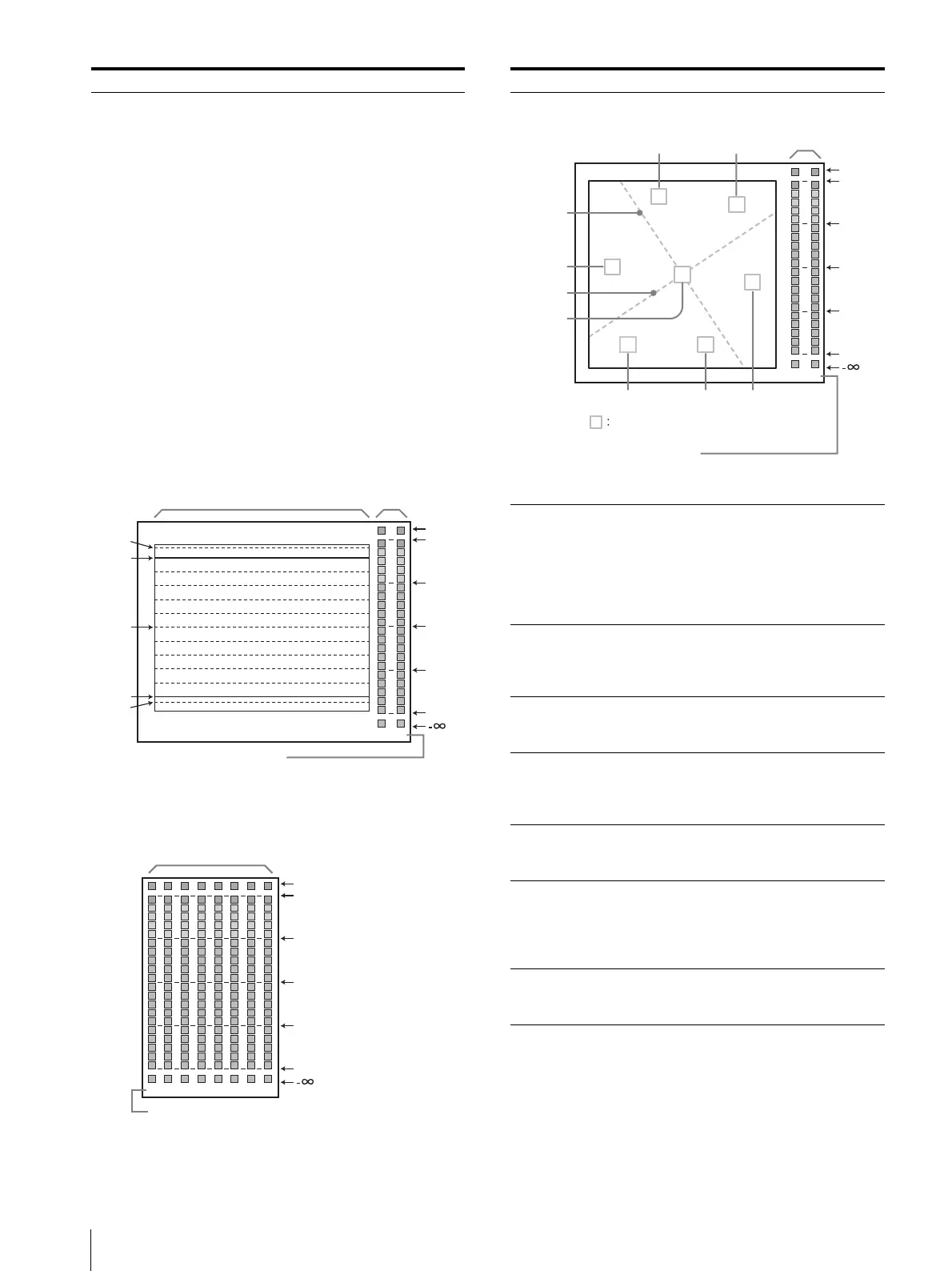

Each display type is illustrated below.
(The waveform percentage and audio
level units/values do not appear on the
display.)
When WFM is selected
When ALM is selected
Submenu Setting
-4%
0%
50%
100%
0
OVER
(dB)
-10
-20
-30
-60
12
109%
Audio levelWaveform
Channel number
(The channel number which is selected in
SDI AUDIO SETTING is displayed.)
0
(dB)
-10
-20
-30
-60
OVER
12345678
Audio level
Channel number
(Displayed in eight channels, including the channel
which is selected in SDI AUDIO SETTING.)
When VECTOR is selected
POSITION Sets the position of the WFM/ALM/
VECTOR display. You can select from
among 1 to 4.
• 1: Bottom left
• 2: Bottom right
• 3: Top right
• 4: Top left
COLOR Selects the displayed line color from
white (W), red (R), green (G), blue (B)
and yellow (YL), when WFM is
selected.
INTENSITY Sets the brightness of the waveform, etc.
The larger the value, the brighter the
waveform.
ZOOM When ON is set, 0-20 IRE areas will be
zoomed when WFM is selected, or black
areas will be zoomed when VECTOR is
selected.
LINE SELECT Select ON to display the wave form of
the line assigned in LINE POSITION
below, when WFM is selected.
LINE POSITION Sets the line position when WFM is
selected.
When the numerical value is increased,
the line will move down; when
decreased, the line will move up.
TARGET Select 75 or 100. Switches the
vectorscope target between 75% and
100%.
Submenu Setting
0
OVER
(dB)
-10
-20
-30
-60
12
Audio level
Color target frame
Black
Magenta
Yellow
Bar I
BlueGreen Cyan
Red
Bar Q
Channel number
(The channel number which is selected in
SDI AUDIO SETTING is displayed.)
