Sony Trinitron CPD-210GS - 2 Disassembly; Cabinet Removal; Service Position; D Board Removal

CPD-210GS/210EST
SECTION 2
DISASSEMBLY

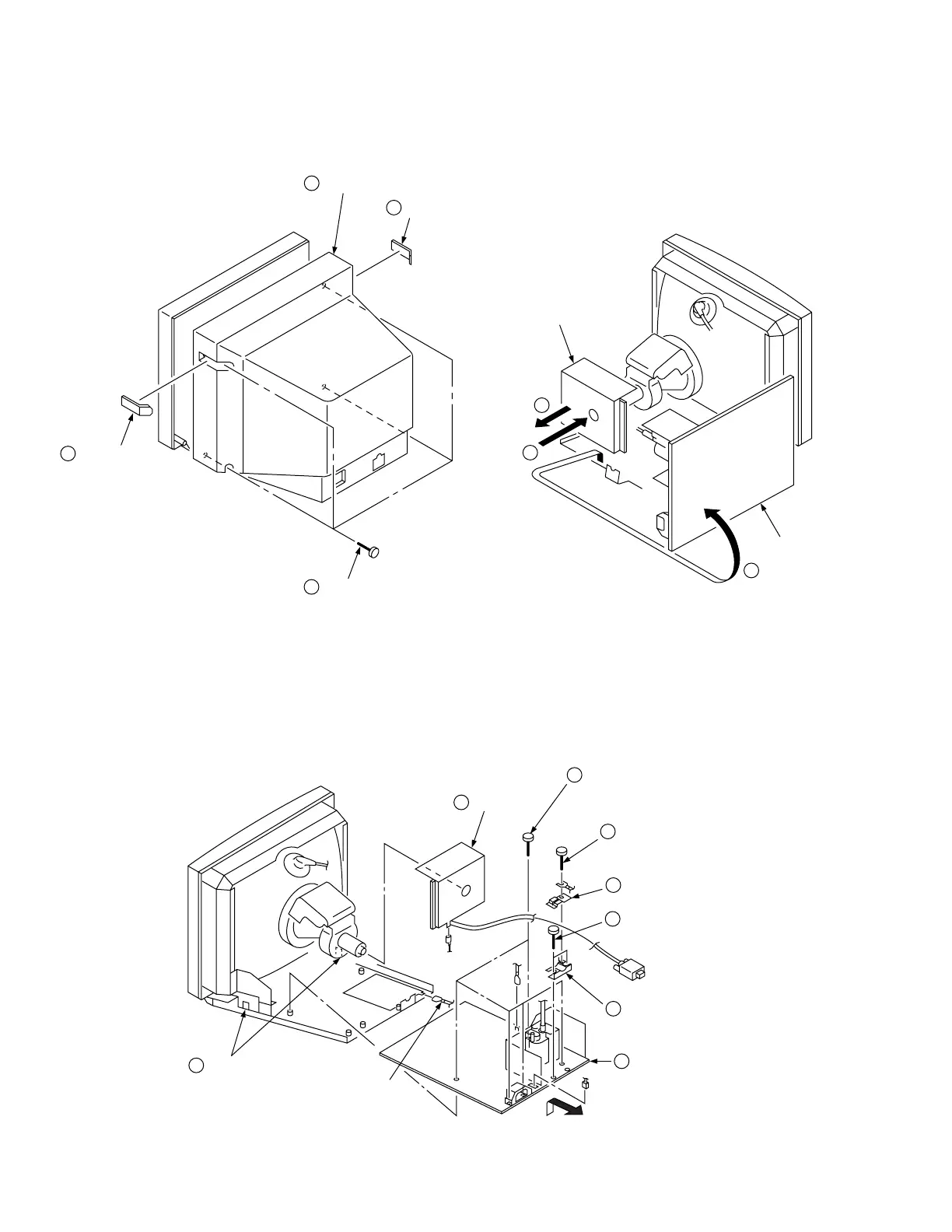

2-1. CABINET REMOVAL
2-3. D BOARD REMOVAL
2-1
2-2. SERVICE POSITION
2
4
3
1
Screw cover
Four screws
(+BVTP 4 x 16)
Cabinet
Screw cover
1
2
3
A board
D board
2
3
5
6
8
4
1
A board
Cable stopper
Two screws
(+BVTP 3 x 12)
Five screws
(+BVTP 3 x 12)
Screw
(+BVTT 4 x 8)
Cable bracket
D board
7
Two claws
CN603
CN506
GND
GND
GND
