CPD-210GS/210EST
3 When one side of the rubber cap is
separated from the anode button, the
anode-cap can be removed by turning
up the rubber cap and pulling up it in
the direction of the arrow c.
• HOW TO HANDLE AN ANODE-CAP
1
Don’t hurt the surface of anode-caps with shartp shaped material!
2 Don’t press the rubber hardly not to hurt inside of anode-caps!
A material fitting called as shatter-hook terminal is built in the
rubber.
3 Don’t turn the foot of rubber over hardly!
The shatter-hook terminal will stick out or hurt the rubber.
a
b
Anode Button
c
• REMOVAL OF ANODE-CAP
NOTE: Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon painted on the CRT,
after removing the anode.
• REMOVING PROCEDURES
1 Turn up one side of the rubber cap in
the direction indicated by the arrow a.
2 Using a thumb pull up the rubber cap
firmly in the direction indicated by the
arrow b.

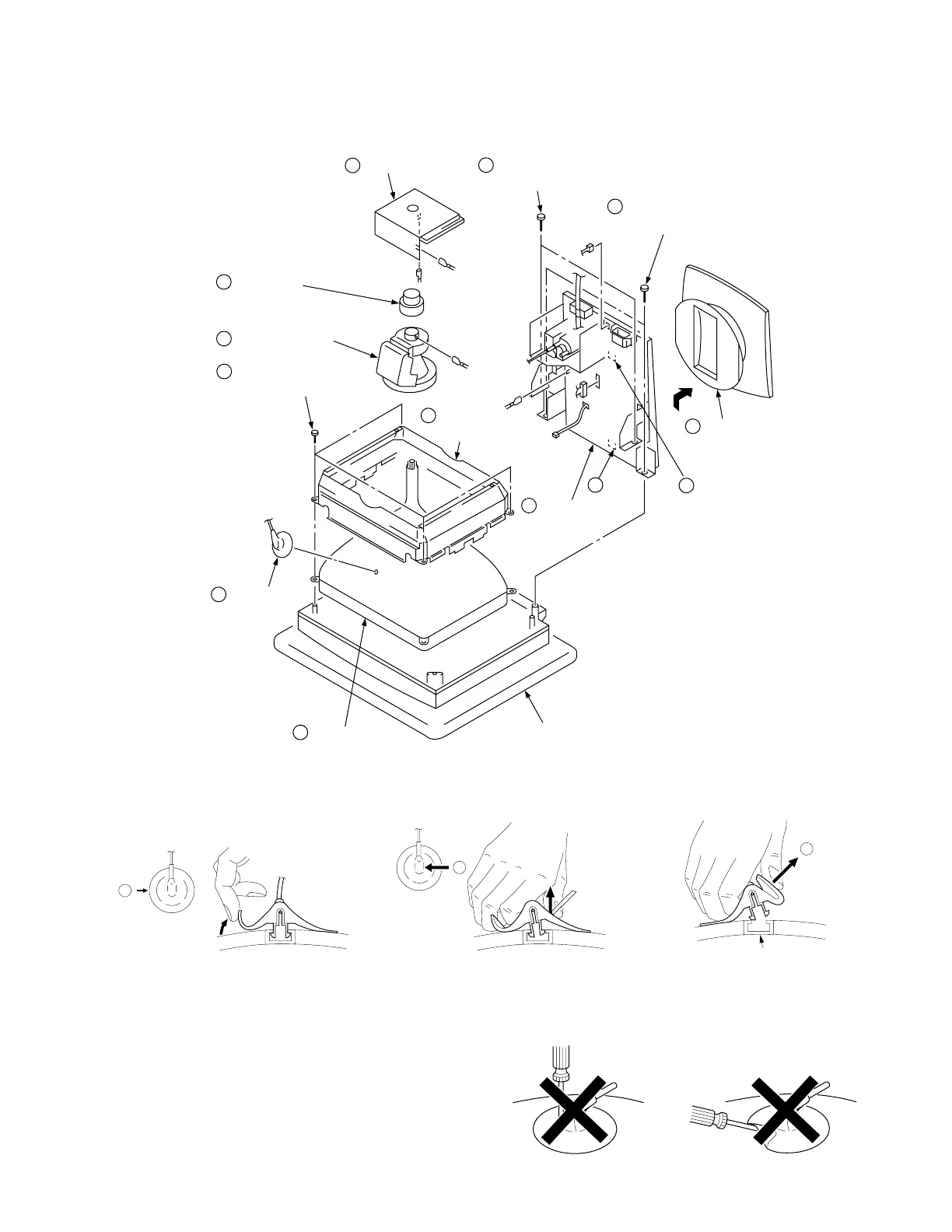

2-4. PICTURE TUBE REMOVAL
2-2
1
2
Two screws
(+BVTP 4 x 16)
A board
Neck assy
Four screws
(Tapping screw 5)
Deflection yoke
Picture tube
Anode cap
Cushion
Bottom cover
(D board)
Stand assy
3
Claw
6
Claw
4
5
Two screws
(+BVTT 4 x 8)
7
13
12
8
9
Picture tube
shield
11
10
Connector
(2pin)
CN506
CN501
CN603
GND
GND
CN307
