CPD-210GS/210EST

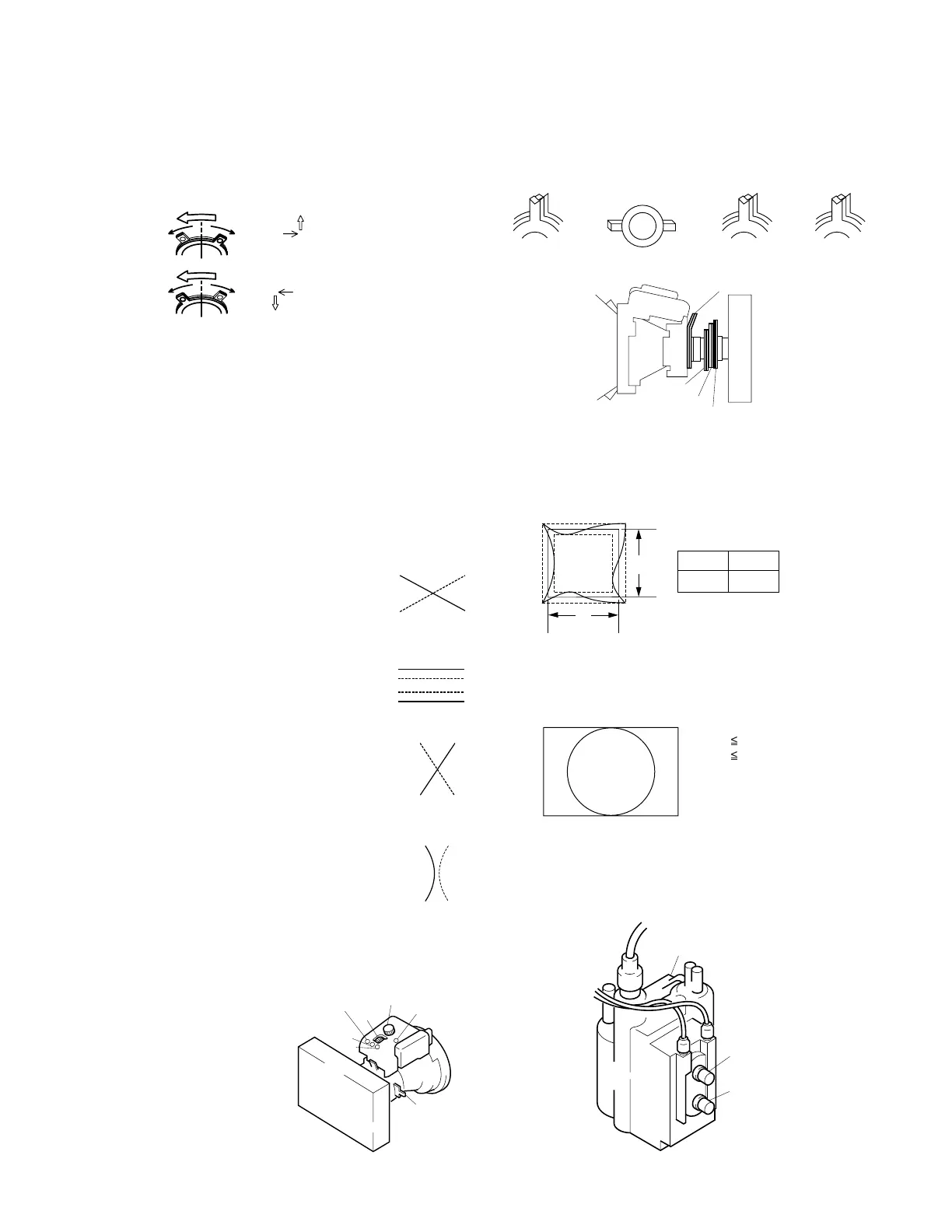

• Focus Adjustment
Adjust focus (V) and focus(H) for optimum focus.
3. Receive White cross-hatch.
4. Adjust HMC and VMC at six-pole magnet.
<6 Pole Magnet>
6
6
6
6
1
2
1
2
G
G
5. Display R and B cross hatch patterns.
6. Adjust H STAT and V STAT with 4-pole magnet.
7. Display white cross hatch patterns.
8. Adjust HMC and VMC with 6-pole magnet.
9. Display R and B cross hatch patterns.
10. Adjust XCV and XCV roller.
11. Adjust XBV and XBV reactor.
12. Adjust V.STAT with 4-pole magnet.
Repeat steps 7 to 12 above and make R, G, B of both vertical and
horizontal lines to be overlaid at the center of the x-axis.
13. Adjust H.TILT with TLH Corrector.
14. Adjust XCV with XCV core.
Purity Mg
6-pole Mg
4-pole Mg
4-pole Mg
XCV
YBH
XBV
APH
YCH
TLV
TLH
4-2
15. Adjust V.TILT with TLV VR.
16. Adjust Y.CROSS with YCH VR.
17. Adjust YBH with YBH VR.
18. Paint lock the four-pole magnet, six-pole magnet, XBV re-
actor, XCV corrector and TLH corrector handle.
<VR Adjustment on DY>
Zero Position NECK Assembly
4-Pole Mg
6-Pole Mg
Purity
on NA
Purity
on DY
XCV movement
TLV movement
YCH movement
YBH movement
B
R
R
B
B
R
B
R
B
R
• Convergence Specification
• Vertical and Horizontal Position and Size
Specification
A B
312mm
234mm
A
B
A 0.3mm
B 0.4mm
B
A
FBT
Focus volume 1 (H)
Focus volume 2 (V)
To Next Page
