Sony Trinitron CPD-210GS - Page 26

5-15 5-16
• A BOARD
SEMICONDUCTOR
LOCATION
IC
IC001 B–1 B–3
IC002 A–1
IC003 B–3 B–1
IC004 B–1
TRANSISTOR
Q001 C–3 C–1
Q002 B–3 B–1
Q003 B–3 B–1
Q004 C–3 C–1
Q005 B–3 B–1
Q006 A–3 A–1
Q007 B–1 B–3
Q008 B–1 B–3
Q101 A–2 A–2
Q201 A–3 A–1
Q301 A–3 A–1
DIODE
D002 C–3
D003 B–3 B–1
D004 B–3 B–1
D005 C–3 C–1
D008 B–1 B–2
D009 B–1 B–2
D010 B–1 B–2
D011 B–2 B–2
D012 B–1 B–3
D013 C–1
D016 A–1 A–3
D101 B–1 B–2
D102 B–1 B–2
D103 A–2 A–1
D104 A–2 A–2
D105 A–2 A–2
D201 B–1 B–3
D202 B–1 B–3
D203 A–3 A–1
D204 A–2 A–1
D205 A–2 A–1
D301 B–1 B–3
D302 B–1 B–3
D303 A–3 A–1
D304 A–3 A–1
D305 A–3 A–1
Conductor
()
Side
Conductor
()
Side
Component
()
Side
Component
()
Side
Conductor
()
Side
Component
()
Side
(a)
VIDEO

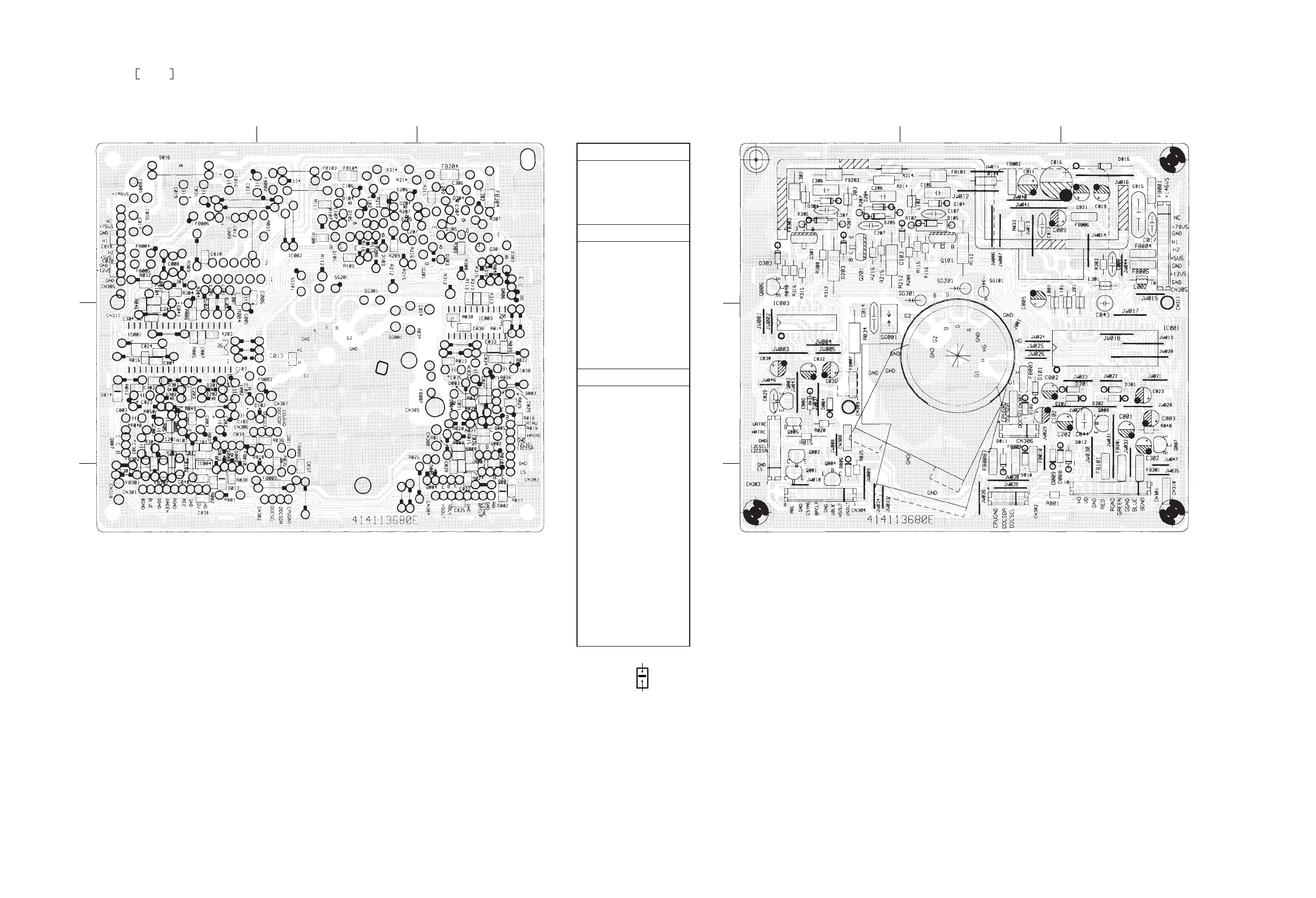

— A BOARD (Conductor Side) —
— A BOARD (Component Side) —
• Pattern of the rear side.
A
B
1
2 3
C
Anode
Cathode
D002
D013
A
B
1
2 3
C
