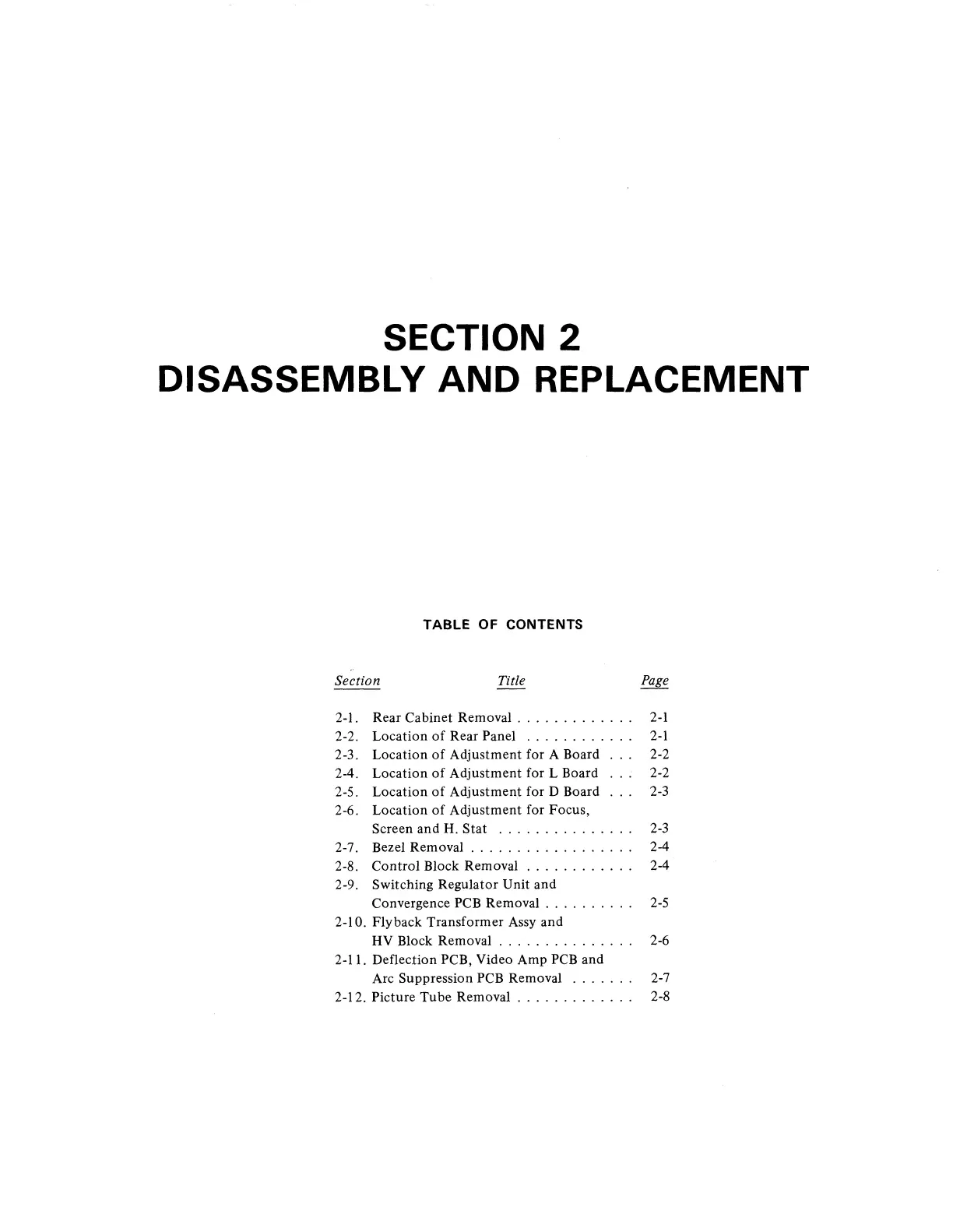

SECTION 2
DISASSEMBLY AND REPLACEMENT
TABLE OF CONTENTS
Section Title
2-1. Rear Cabinet
Removal.
. . . . . . . . . .
..
2-1
2-2. Location
of
Rear Panel
............
2-1
2-3. Location
of
Adjustment for A Board 2-2
2-4. Location
of
Adjustment for L Board 2-2
2-5. Location
of
Adjustment for D Board 2-3
2-6. Location
of
Adjustment for Focus,
Screen and
H. Stat
...............
2-3
2-7. Bezel Removal . . . . . . . . . . . . . . . .
..
2-4
2-8. Control Block Removal . . . . . . . . . .
..
2-4
2-9. Switching Regulator Unit and
Convergence
PCB
Removal . . . . . . . .
..
2-5
2-10. Flyback Transformer Assy and
HV Block Removal . . . . . . . . . . . . . 2-6
2-11. Deflection PCB, Video Amp
PCB
and
Arc Suppression
PCB
Removal
.......
2-7
2-12. Picture Tube Removal . . . . . . . . . . .
..
2-8
To Next Page
