Sony TRINITRON GDM-1601 - Picture Tube

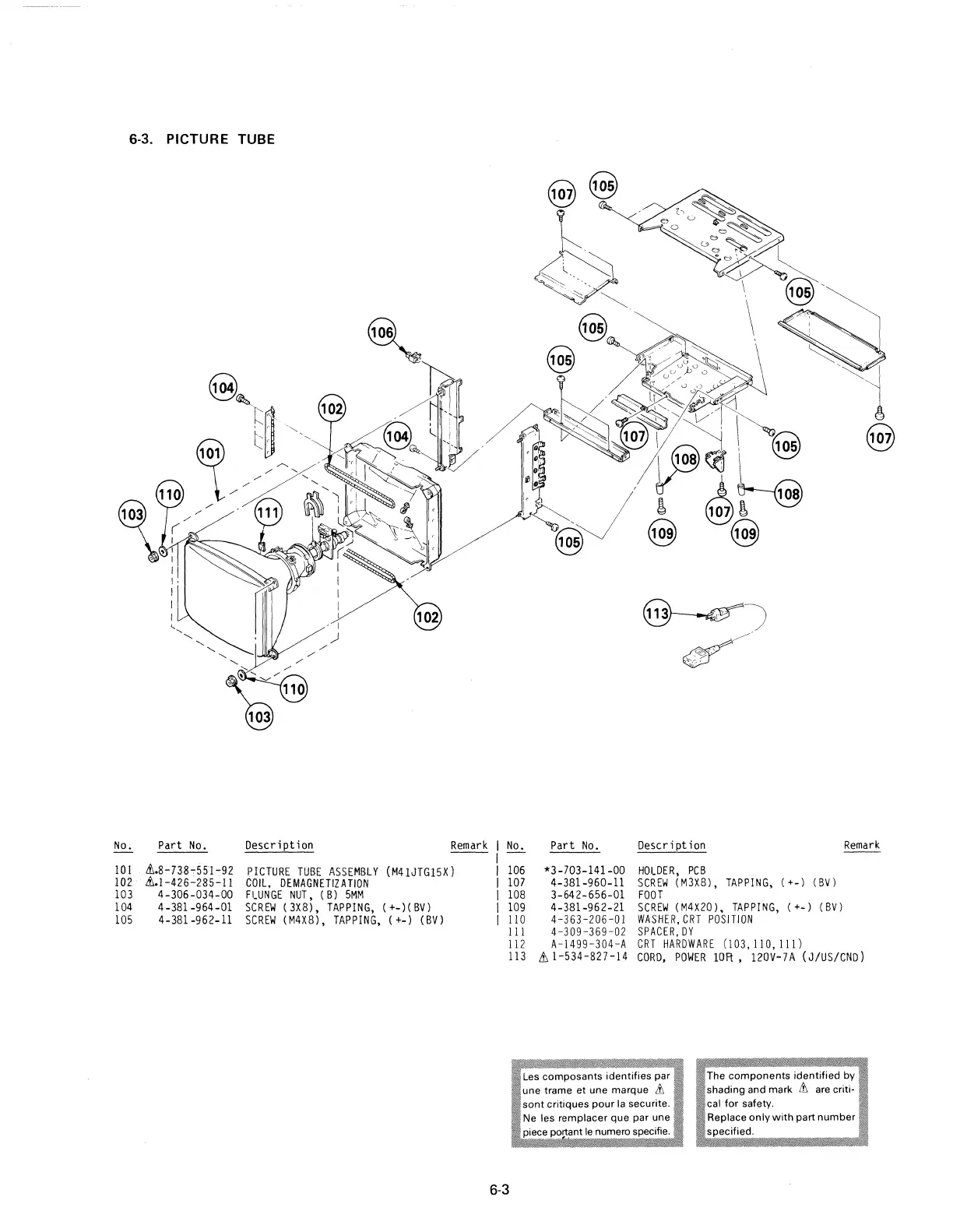

6-3_ PICTURE TUBE
No_
Part No.
Description
Remark 1
--I
101 &.8-738.,551-92
PICTURE TUBE ASSEMBLY
(M41JTG15X) 1
102
&'.1-426-285-11
Call,
DEMAGNETIZA nON
1
103 4-306-034-00 FI_UNGE NUT, (B) 5MM
1
104
4 -381-964 -01 SCREW (3XB), TAPPING, (+-)( BV)
1
105 4-381-962-11
SCREW (M4XB), TAPPING, (+-) (BV)
1
No.
Part No. Descr i pt i on
Remark
106
*3-703-141-00 HOLDER, PCB
107
4-381-960-11
SCREW (M3X8), TAPPING, (+-)
(BV)
108
3-642-656-01
FOOT
109 4-381-962-21
SCREW (M4X20). TAPPING, (+-)
(BV)
110
4-363-206-01
WASHER,CRT POSITION
III
4-309-369-02
SPACER,DY
112
A-1499-304-A
CRT HARDWARE (103,110, III)
113
&,1-534-827-14
CORD. POWER lOR. 120V-7A (J!US!CND)
Les composants identifies par
une trame et une marque
&.
sont critiques pour la securite.
Ne les rem
placer que par une
i piece portant Ie numero specifie.
The
components identified by
shading and mark
&. are criti-
cal
for safety.
Replace
only with part number
specified.
6-3
