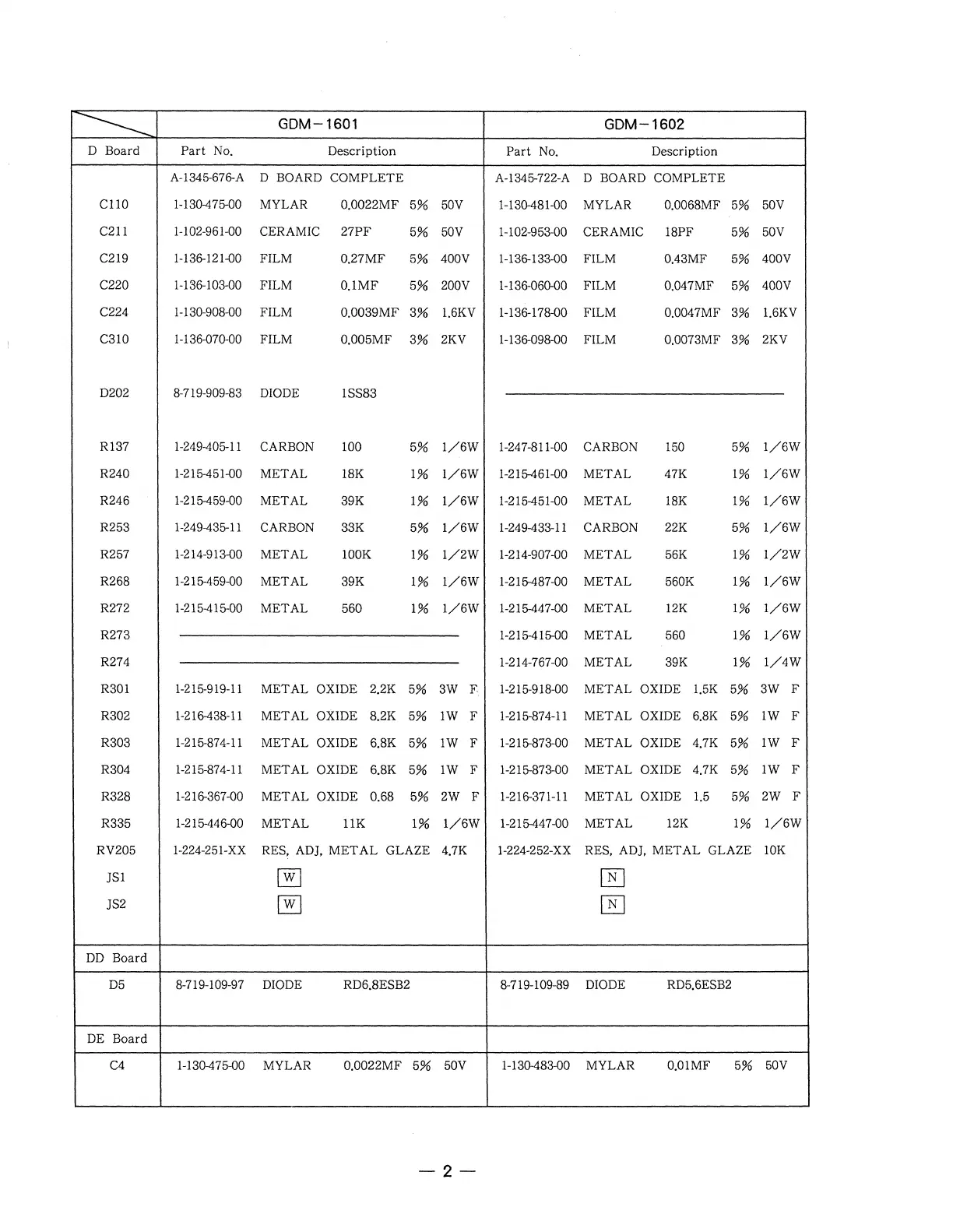

GDM-1601
GDM-1602
D Board Part No.
Description
Part No. Description
A-1345-676-A
D BOARD COMPLETE A-1345-722-A
D BOARD COMPLETE
C110
1-130-475-00
MYLAR
0.0022MF
5% 50V
1-130-481-00 MYLAR
0.0068MF 5%
50V
C211
1-102-961-00
CERAMIC 27PF
5% 50V
1-102-953-00 CERAMIC 18PF
5%
50V
C219 1-136-121-00 FILM
0.27MF 5% 400V 1-136-133-00
FILM
0.43MF
5%
400V
C220 1-136-103-00
FILM
O.lMF
5%
200V 1-136-060-00 FILM 0.047MF
5%
400V
C224 1-130-908-00 FILM
0.0039MF
3% 1.6KV
1-136-178-00 FILM 0.0047MF
3%
1.6KV
C310
1-136-070-00 FILM
0.005MF
3%
2KV 1-136-098-00 FILM
0.0073MF
3%
2KV
D202 8-719-909-83 DIODE
ISS83
R137 1-249-405-11
CARBON 100
5% l/6W
1-247-811-00 CARBON 150
5%
1/6W
R240 1-215-451-00
METAL 18K
1%
1/6W
1-215-461-00
METAL
47K
1%
l/6W
R246 1-215-459-00
METAL 39K
1%
1/6W
1-215-451-00 METAL 18K
1%
1/6W
R253 1-249-435-11 CARBON
33K
5%
l/6W
1-249-433-11 CARBON 22K
5% 1/6W
R257 1-214-913-00 METAL
lOOK
1%
l/2W
1-214-907-00 METAL 56K
1%
1/2W
R268 1-215-459-00 METAL
39K
1%
l/6W
1-215-487-00 METAL 560K
1% 1/6W
R272 1-215-415-00
METAL 560
1% 1/6W
1-215-447-00 METAL
12K
1% 1/6W
R273
1-215-415-00
METAL 560 1% 1/6W
R274 1-214-767-00
METAL 39K 1% 1/4W
R301 1-215-919-11
METAL OXIDE 2.2K
5%
3W F 1-215-918-00 METAL OXIDE
1.5K
5%
3W
F
R302 1-216-438-11
METAL OXIDE
8.2K 5%
lW F
1-215-874-11
METAL OXIDE
6.8K
5%
lW F
R303
1-215-874-11
METAL OXIDE
6.8K
5%
1W F
1-215-873-00
METAL OXIDE
4.7K 5%
1W F
R304
1-215-874-11
METAL OXIDE
6.8K 5%
lW F
1-215-873-00
METAL OXIDE
4.7K 5%
lW F
R328 1-216-367-00
METAL OXIDE
0.68
5%
2W F 1-216-371-11 METAL OXIDE
1.5
5%
2W F
R335
1-215-446-00
METAL 11K
1%
l/6W
1-215-447-00 METAL 12K 1%
l/6W
RV205
1-224-251-XX
RES~ AD], METAL GLAZE
4.7K
1-224-252-XX
RES, ADJ,
METAL GLAZE
10K
JSl
~
[K]
]S2
~
[K]
DD Board
D5 8-719-109-97 DIODE RD6.8ESB2 8-719-109-89 DIODE RD5.6ESB2
DE
Board
C4 1-130-475-00 MYLAR
0.0022MF
5% 50V
1-130-483-00 MYLAR O.OIMF 5% 50V
-2-
