Sony Trinitron GDM-200PS - AC Inlet and I;O Terminal Board Removal; D Board Removal; Service Position

GDM-200PS/200PST/200PST9

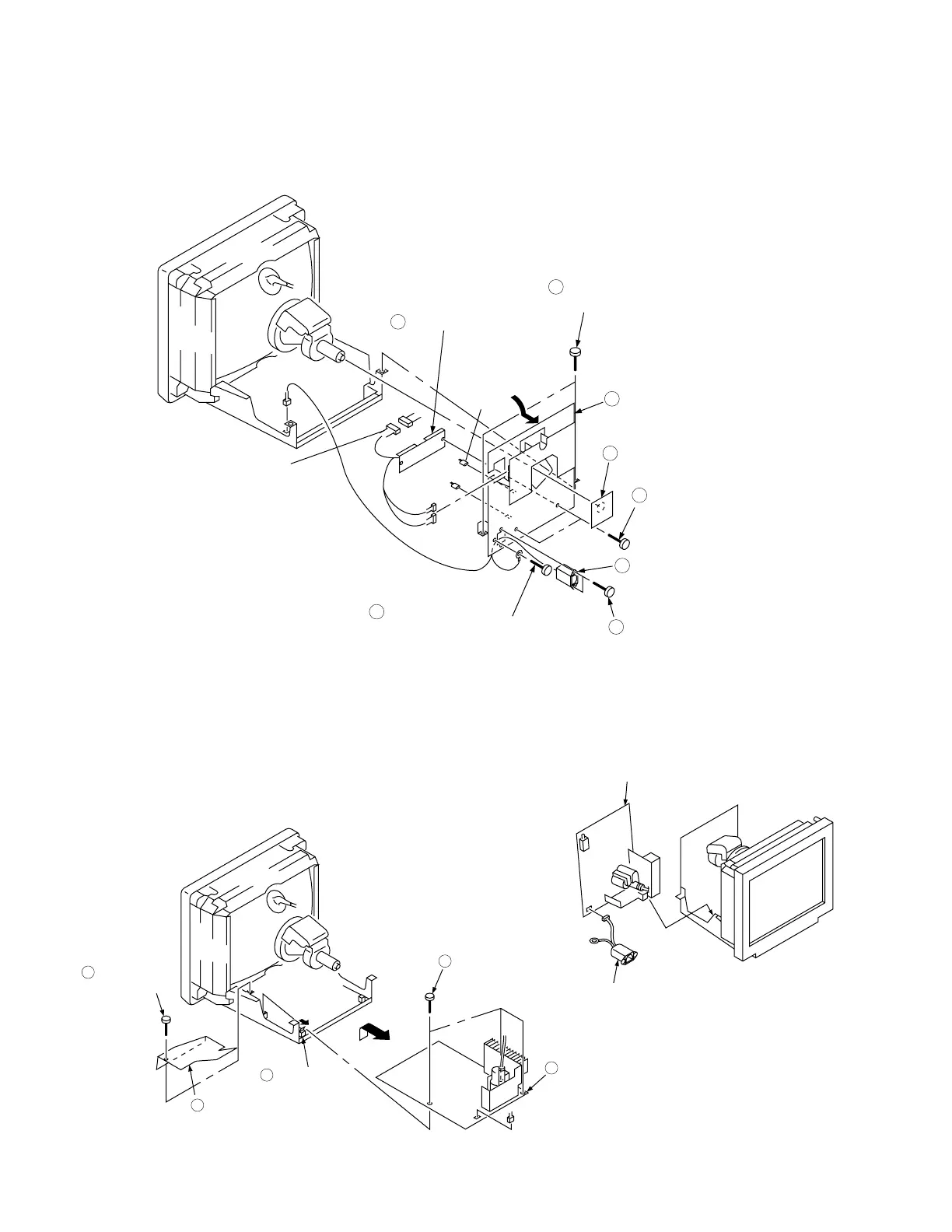

2-3. AC INLET AND I/O TERMINAL BOARD REMOVAL
2-4. D BOARD REMOVAL 2-5. SERVICE POSITION
Engage a slit in D board heat sink with the
base chassis to fix.
2-2
CN404
CN403
CN601
AC inlet (3P)
6
Two screws
(Ext tooth washer screw M4)
2
Two screws
(+BVTT 3 x 8)
7
Two screws
(+KTP 3 x 8)
5
Rear shield
3
I/O terminal board
8
Screw
(Ext tooth washer screw M4)
4
A board
1
GND
GND
Connector (9pin)
CN602
Shield plate
2
D board
5
Three screws
(+BVTP 3 x 10)
3
Screw
(+BVTT 4 x 8)
1
Printed circuit
board holder
4
CN601
D board
AC inlet (3P)
